Basic Info.
Model NO.
GKZS-4G-SMAZG-107
Base Antenna
Directional Antenna
Nature of Operation
Transmitting Antenna
Sturcture Form
Surface Antenna
Dimensionality
Two-Dimensional Antenna
Sample Time
3-7 Days
Transport Package
Natural Packing
Specification
11*107mm
Trademark
Gaoke
Origin
Guangzhou, China
HS Code
8529101000
Production Capacity
50000PCS/Day
Product Description

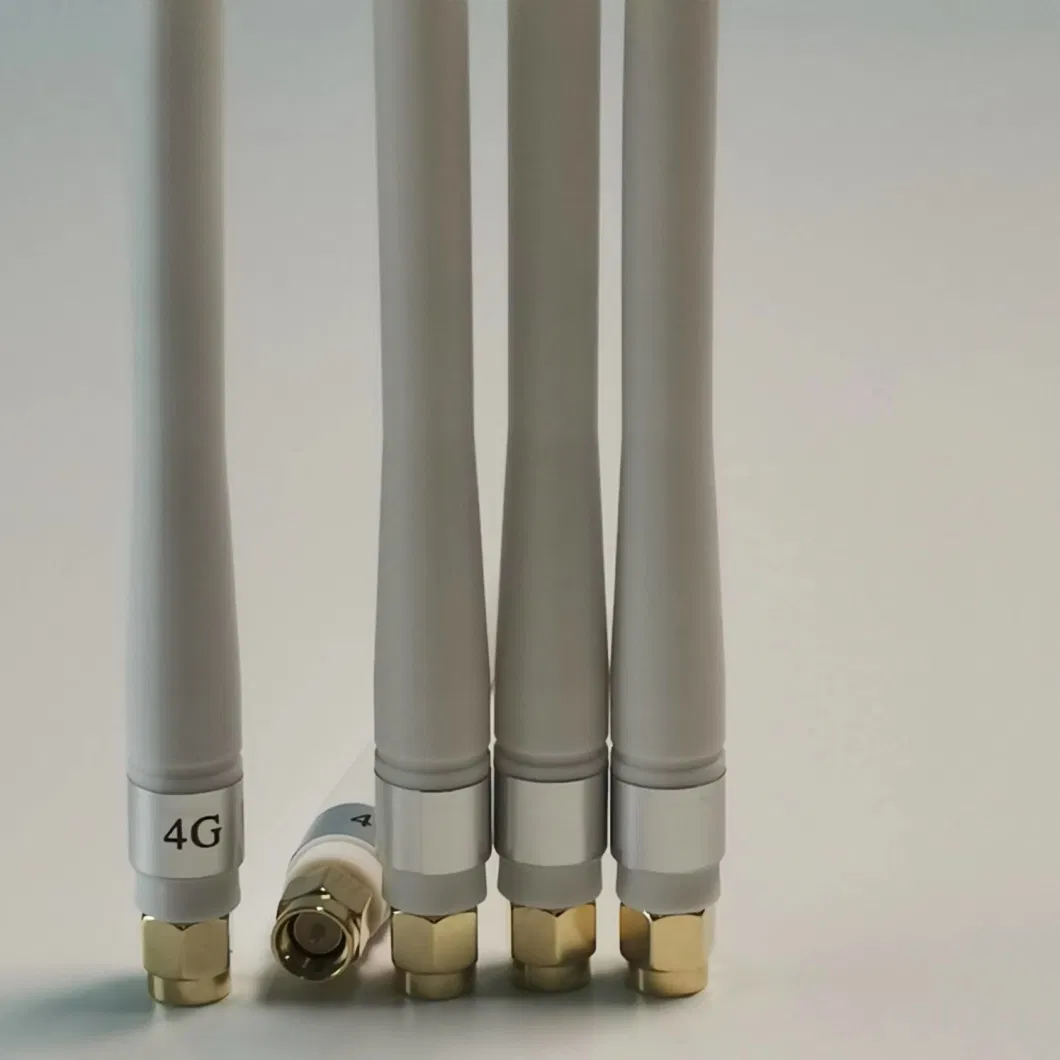

Dimensions: 11*107mm 4G Rob
SMA connector
Pure copper connector / passing 48 hour salt spray test
The environment-friendly ABS material is non-toxic and odorless,
and has a wide range of uses.
and has a wide range of uses.
It is a safe and reliable antenna shell application material.
| Design Specifications | Typical | Units |
| working Frequency | 824~960/1710~2170/2300~2690 | MHz |
| Gain | ≤2.0 | dBi |
| Antenna efficiency | 45% | |
| VSWR | ≤4.0 | |
| Ploriaztion | V Pol | |
| Radiation pattern | Omni | |
| impedance | 50Ω | |
| Power handling | 50dbm | |
| Interface | SMA Male | |
| Overal dimensions | Φ8x107mm | mm |
| Weight | 8.4g | g |
| Operatin Temp | -40ºC~85ºC | ºC |

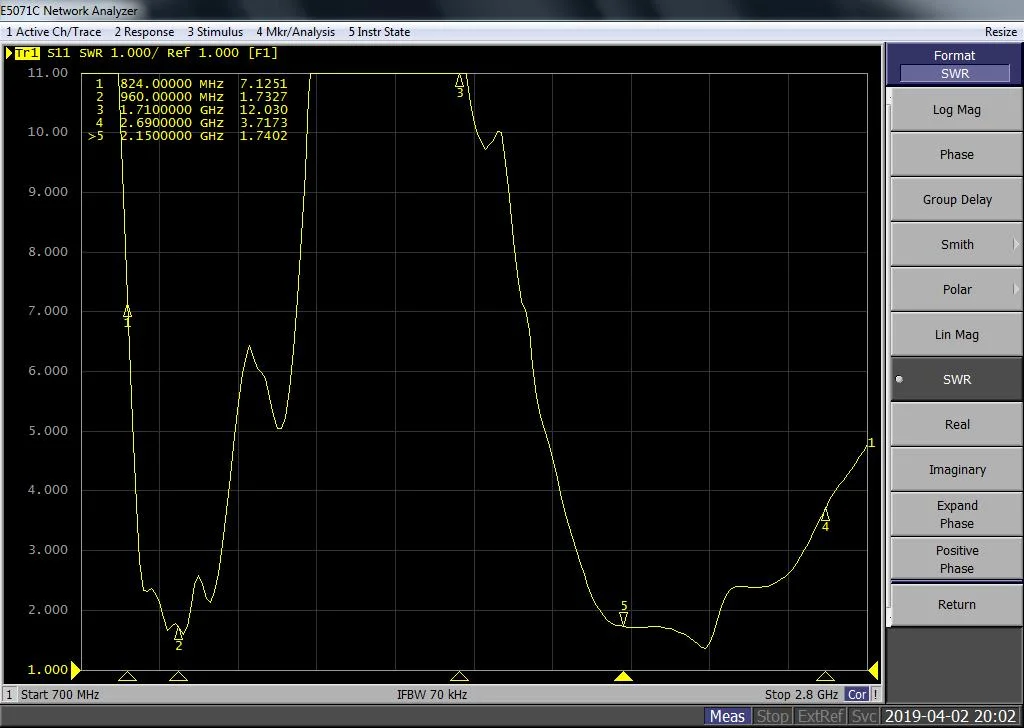

Antenna performance test
VSWR
VSWR

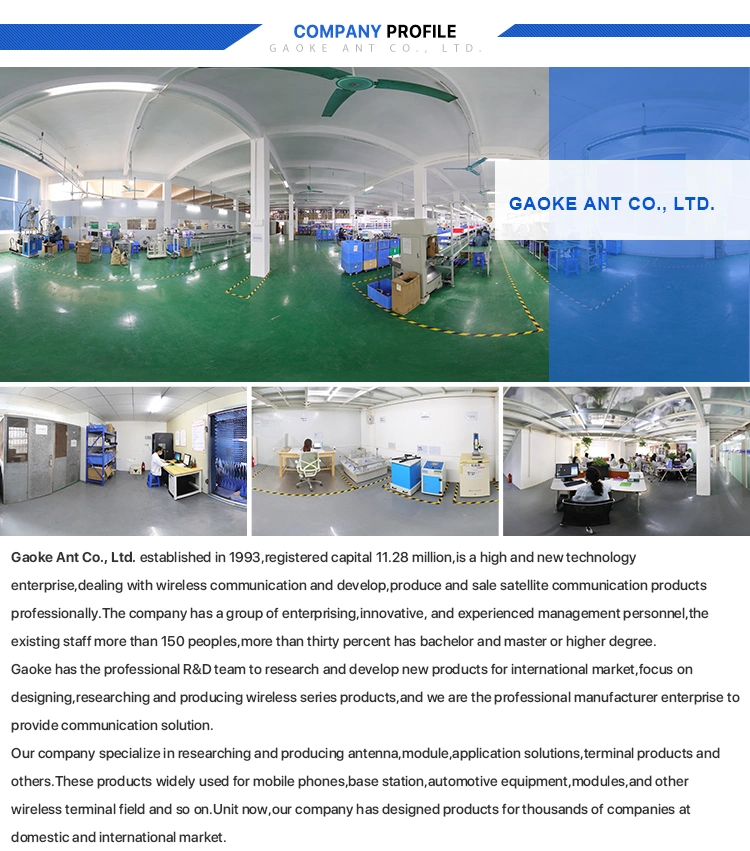

1.Q: Are you a manufacturer? A: Yes, our company has 30 years of professional experience dealing with wireless communication and develop ,produce and sale satellite communication products professionally
2.Q: How do I get samples?
A: Please send us the item link you need and your shipping address,we will check the shipping fee and confirm with you.After we receive the fee,we will send in 3-5 days by express.Some samples will charge sample fee, please confirm with us at first.
3.Q: How to make an OEM order?
A: 1. After communication, the buyer and the seller reach an agreement on product details, packaging, purchase quantity, unit price, delivery terms and payment terms.
2. The buyer sends a formal PO (purchase order) or the seller sends a formal PI (performance invoice) with detailed terms and conditions.
4.Q: What are your payment terms?
A: For samples: small batch orders or urgent orders, you can choose PayPal,or bank account 100% payment before shipment; for large orders: 30%/50% of T/T as deposit, The balance before shipment.
5.Q: How long is your delivery time?
A: For example: usually 7-15 working days after receiving your 100% payment.
For bulk orders: 15-35 working days after receiving the deposit.
6.Q: How about the warranty?
A: We can provide 1 year warranty.
7.Q: How do you solve after-sales service problems?
A: After receiving the goods, if you have any dissatisfaction or other problems, please contact us as soon as possible, we will give you a quick and reasonable solution, thank you very much!
8.Q: If we want a special appearance and function increase, can we get support?
A: No problem! Our R&D team will support you to develop a new and best product for you!
