Basic Info.
Model NO.
GL-DY426
Base Antenna
Omnidirectional Antenna
Nature of Operation
Receiving Antenna
Dimensionality
One-Dimensional Antenna
Connector
Ipex
Qty/CTN
2000PCS
Weight/CTN
14.2kgs
Transport Package
33*29*17
Specification
13*190mm
Trademark
LEHENG
Origin
China
HS Code
8517707090
Production Capacity
150000/Month
Product Description

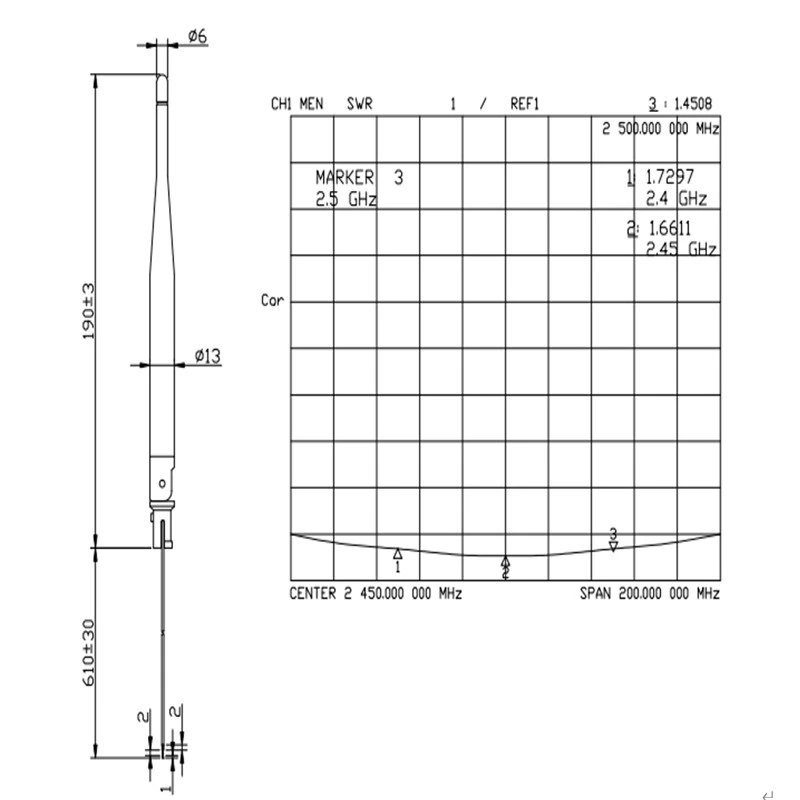

| 2.4G Rubber Antenna | |
| GL-DY426 | |
| Electrical Index | |
| Frequency-MHz | 2400-2500 |
| Gain | 5dBi |
| VSWR | <2.5 |
| Bandwidth(MHz) | 100 |
| Radiation | Omni |
| Normal Impedance-Ω | 50 |
| Polarization | Vertical |
| Mechanical Index | |
| Cable-mm | 1.13,grey,113mm |
| Connector | Ipex |
| Antenna Dimension-mm | Ø13*190 |
| Radome Material | ABS |
| Environmentally Friendly | ROHS Compliant |
| Temperature-ºC | -40~+60 |
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, Western Union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
