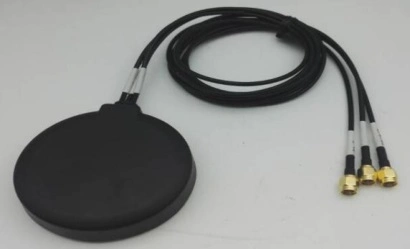

DL-2.4G&4G&GPS&BEIDOU-SMAJZG1-GY
Base Antenna
High Gain Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Wire Antenna
Dimensionality
Two-Dimensional Antenna
Sample Time
5-7 Days
Weight
109g
Transport Package
Carton
Specification
SiZE 81x 84x17.5mm
Trademark
DeliNComm
Origin
China
HS Code
8529109090
Production Capacity
20000/Day
Product Description
Antenna Characteristics
| No. | Design Specifications | Typical | ||
| 1 | Antenna Form | Three-in-one Combined External Antenna | ||
| 2 | Working Frequency | 2400-2500MHz | 824-960 1710-2170 2300-2690MHz | 1575.42±5/1561.09±5MHz |
| 3 | Gain | 3.0dBi | 2.0dBi | 3.0dBi |
| 4 | Antenna Efficiency | 45% | 50% | 50% |
| 5 | V.S.W.R. | ≤2.0 | ≤2.5 | ≤2.0 |
| 6 | Polarization | Linear Polarization | Linear Polarization | RHCP |
| 7 | Axial Ratio | / | / | ≤3.0 |
| 8 | Radiation Pattern | OMNI | OMNI | OMNI |
| 9 | Impedance | 50Ω | 50Ω | 50Ω |
| 10 | Power Handling | 33dbm | 33dbm | 33dbm |
| 11 | Connector Type | SMA Gold-plated straight head,RG174 -1.1M | SMA Gold-plated straight head,RG174 -1.1M | SMA Gold-plated straight head,RG174 -1.1M |
| 12 | Overall Dimensions | ø81x 84x17.5mm | ||
| 13 | Weight | 109g | ||
Mechanical Specifications
| Size | 81x 84x17.5mm | Mounting | Magnetic |
| Weight | 109g | Connector | SMA |
| Color | Black | Cable | RG174 - 1.1m |
| Operating Temp. | -40ºC~85ºC | Storing Temp. | -45ºC~85ºC |
| Operating Humidity. | 0%~95% | Storing Humidity. | 0%~95% |
