Basic Info.
Model NO.
ZD-OOA-2400-2483-10-NM
Material
Fiberglass
Directionality
Omni Antenna
VSWR
2-3
Base Antenna
High Gain Antenna
Nature of Operation
Receiving and Transmitting The Message
Sturcture Form
Surface Antenna
Dimensionality
One-Dimensional Antenna
Frequency Range
2400-2483MHz
Transport Package
Each in Carton
Specification
650*45mm
Trademark
ZD
Origin
China
HS Code
8529109090
Production Capacity
10000/Month
Product Description
Application:
★2.4G antenna access transmission system
★WLAN,WIFI wireless Lan system
★point-to-multipoint coverage transmission system
Features:
★Medium gain, low VSWR
★High quality fiberglass radome, strong protection
★Strong environmental adaptability
★Standard steel mounting kits

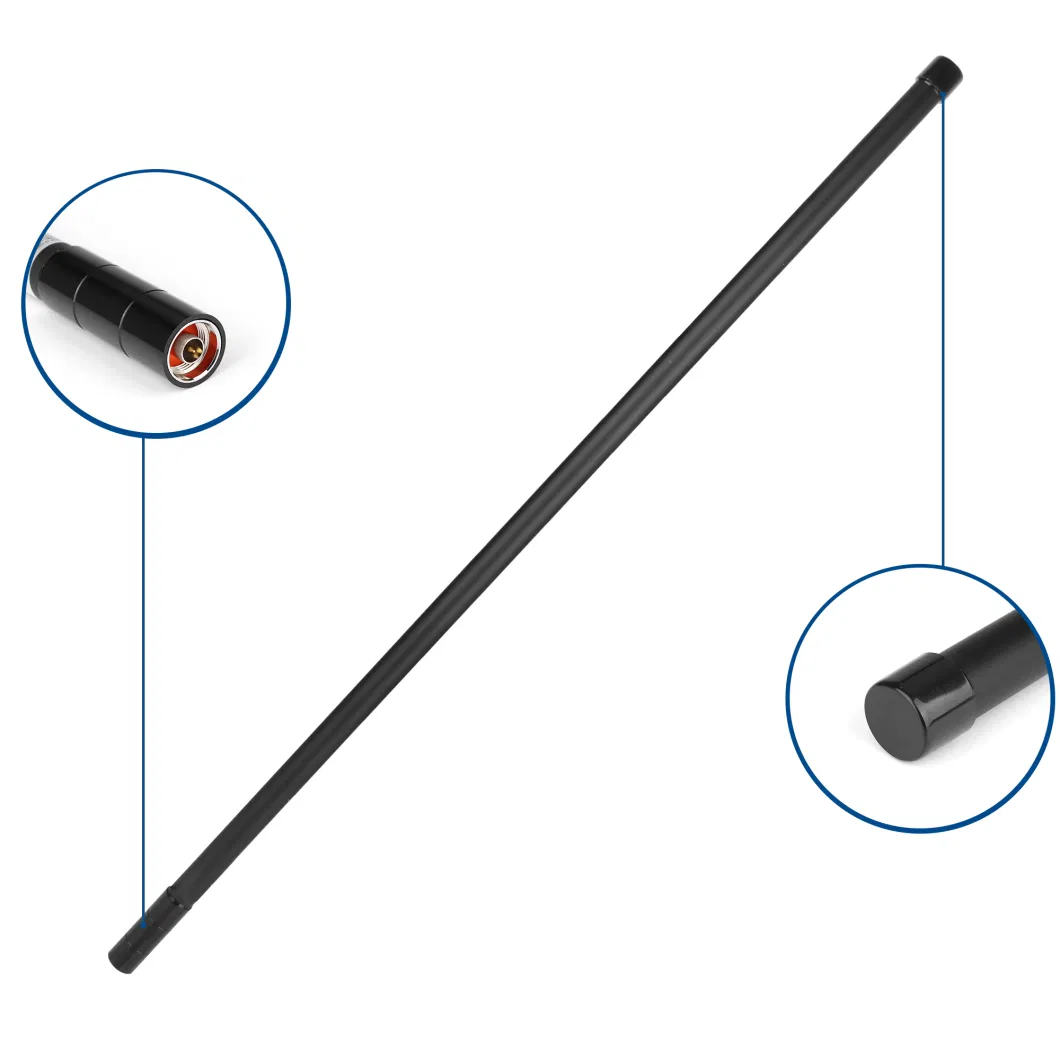

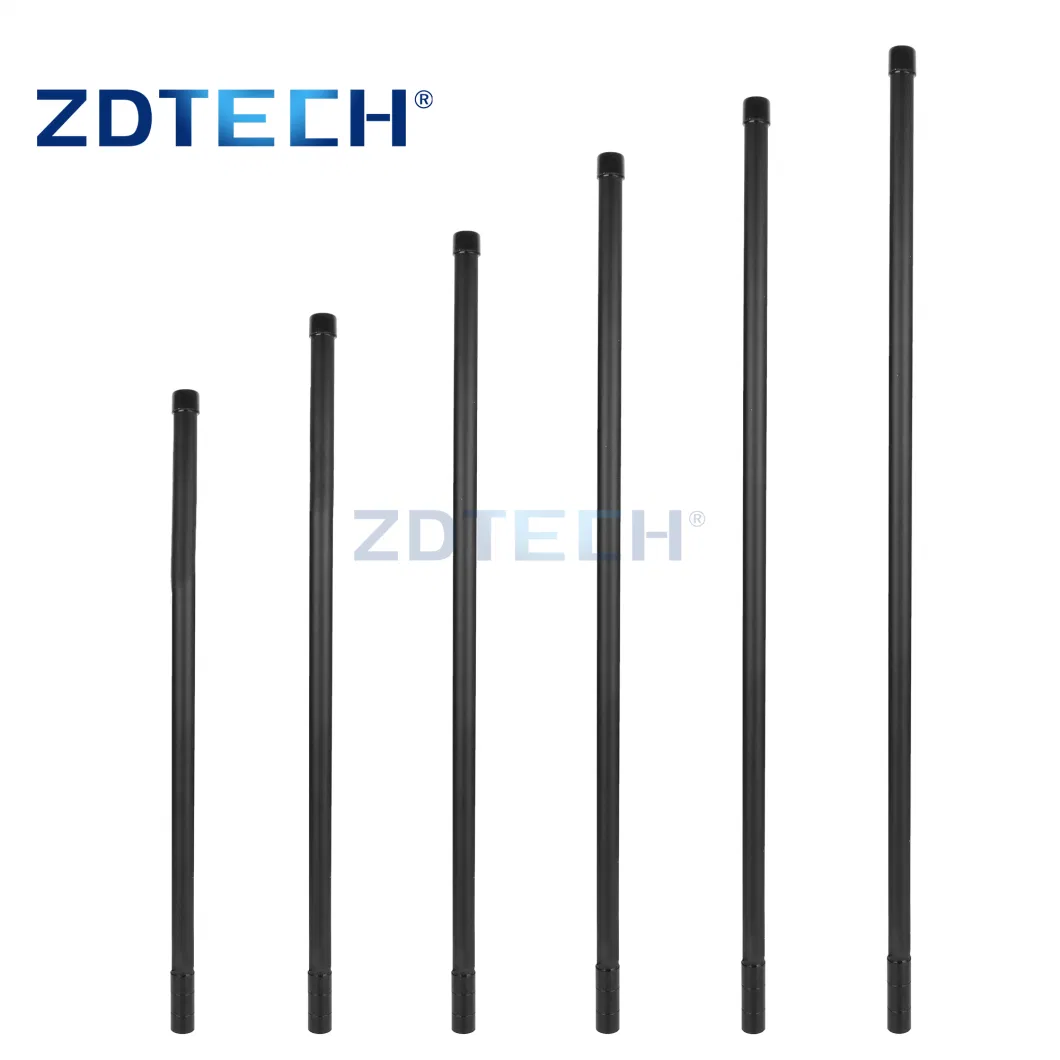

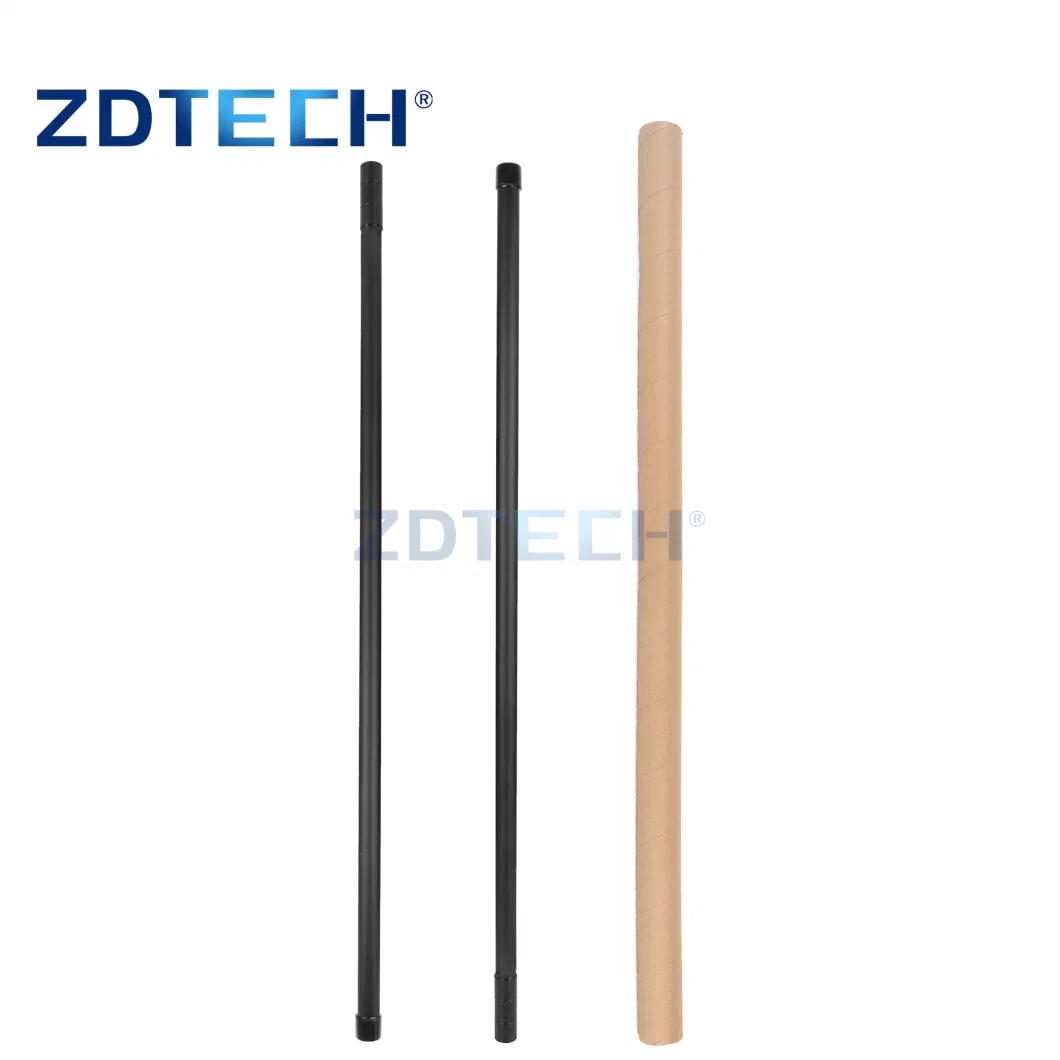

Product Display:
High Gain 2.4g 10dBi Omni Waterproof Black Fiberglass Antenna for UAV JAMMER
★WLAN,WIFI wireless Lan system
★point-to-multipoint coverage transmission system
Features:
★Medium gain, low VSWR
★High quality fiberglass radome, strong protection
★Strong environmental adaptability
★Standard steel mounting kits
Product Display:
High Gain 2.4g 10dBi Omni Waterproof Black Fiberglass Antenna for UAV JAMMER
| Electrical Specifications | |
| Frequency Range-MHz | 2400-2483 |
| VSWR | ≤2.5 |
| Gain-dBi | 10 |
| Horizontal 3dB Beam width-° | 360 |
| Polarization | Vertical |
| Impedance-Ω | 50 |
| Max.Power-W | 100 |
| Mechanical Specifications | |
| Input Connector | N-male or customized |
| Net Weight-kg | ≤1.5 |
| Dimension-mm | 650x45 |
| Radome Material | Fiberglass |
| Composition | Single Section |
| Color | Black |
