Basic Info.
Model NO.
LTE-A30
Ports
0
Port Structure
1wan+3LAN
Application
Enterprise, SOHO, Hotel, Shopping Mall, Airport, Station
Network
4G LTE Wireless Router
Performance
Full 4G FDD Tdd Bands Support
Color
Black
Antenna
External Omni
SIM
Support
Openwrt
Support
Trademark
Yuncore, OEM
Origin
China
HS Code
851762
Production Capacity
10000/Week
Packaging & Delivery
Package Size
35.00cm * 29.00cm * 6.00cm
Package Gross Weight
1.000kg
Product Description

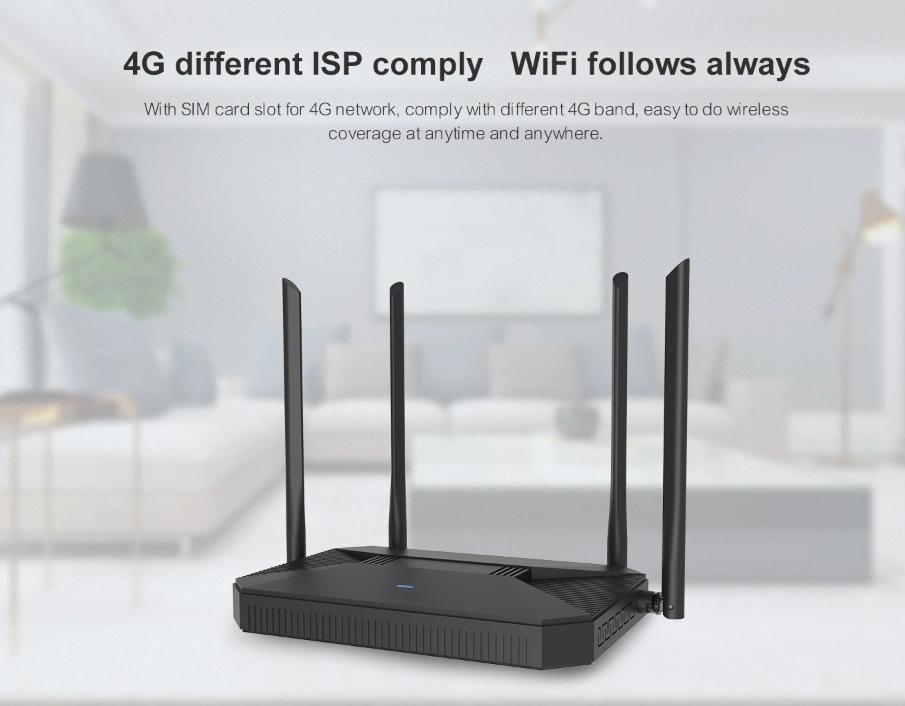

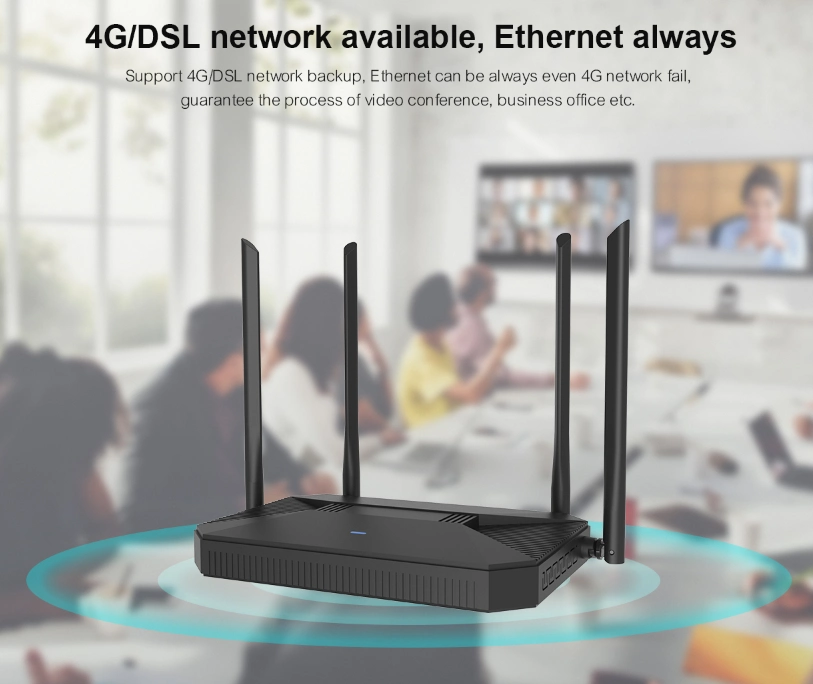

Product Overview
LTE-A30 is an indoor 4G wireless router support VPN; Comply with IEEE 802.11b/g/n MIMO standard, the data rate up to 300Mbps, more than 30 end users can access into it; With SIM card slot, build in QUECTEL LTE module, it support FDD-LTE/TDD-LTE for worldwide use with 150Mbps downlink speed. Beside that, there are 3*10/100Mbps WAN/LAN ports, automatically switch to WAN Ethernet if 4G Ethernet.1.1 Application
| Serial No. | Content |
| 1 | IP Address: 192.168.188.253 User Name: admin Login Password: admin SSID: A30 Password: None |
| 2 | For more details, pls check the user manual |
Specification
2.1 Hardware
| Name | Details |
| CPU | MT7628 |
| FLASH | 8MB |
| SDRAM | 64MB |
| DC-DC | 12V 0.5A |
2.2 Interface
| Name | Details |
| LAN | 3*10/100M LAN Ports, auto-negotiation |
| WAN/LAN | 1*10/100M WAN/LAN Port, auto-negotiation; It is LAN port when work as 4G Router, WAN port when work as wireless router Support PPPoE, Automatic IP, Static IP, PPTP, L2TP, 4G |
| 4G Antenna Connector (Selective) | External Female SMA Connector, Impedance 50Ω |
| WIFI Antenna | 2*5dbi fixed antenna, Impedance 50Ω |
| SIM Card Slot | Support SIM Card Slot |
| DC Power | 12V/0.5A |
| RESET | Press it 10 seconds, Reset to factory default |
| LED Light | WAN, LAN, Wi-Fi, System |
