Basic Info.
Model NO.

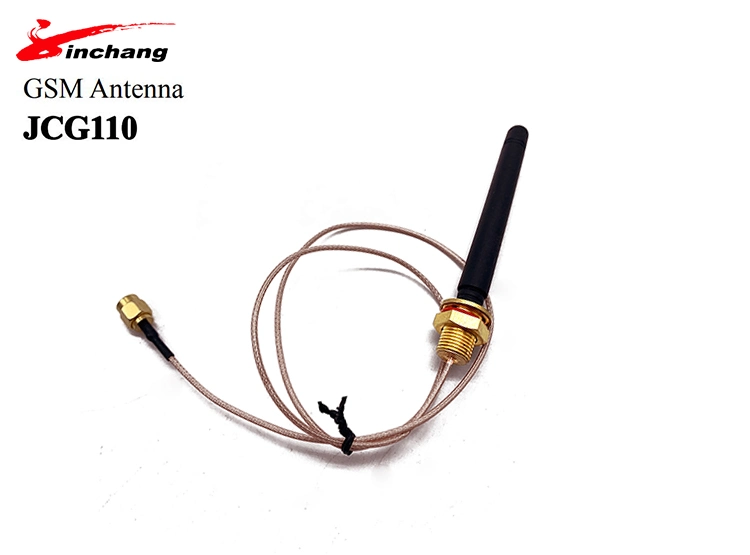

JCG110
Base Antenna
Directional Antenna
Nature of Operation
Transmitting Antenna
Sturcture Form
Wire Antenna
Dimensionality
Two-Dimensional Antenna
Size
D15.5*96.2mm
Cable
RF178 300mm or Others
Connector
MMCX or Others
Transport Package
Common or Special
Specification
49.5*22.5*27mm
Trademark
Jinchang
Origin
Jiashan, Zhejiang, P. R. C
HS Code
85291010
Production Capacity
500, 000PCS/Year
Product Description
| Item | Specifications | |
| Antenna | Frequency Range | 902~928MHz |
| Polarization | Linear | |
| Gain | 2dBi(Zenith) | |
| V.S.W.R(min) | <2.0 | |
| Impendance | 50Ω | |
| Mechanical | Cable | RF1.37 |
| Connector | IPEX or others | |
| Mounting Method | Embedded | |
| Environmental | Operating Temperature | -40ºC~+85ºC |
| Relative Humidity | Up to 95% | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant | |
