Basic Info.
Model NO.
DL-GSMIN-003
Base Antenna
Directional Antenna
Nature of Operation
Transmitting Antenna
Sturcture Form
Surface Antenna
Dimensionality
Two-Dimensional Antenna
Mounting
Adhesive
Polarization
Linear Polarization
Cable
RF1.13
Connector
Ipex/Ufi
Frequancy Range (MHz)
890-960 /1850-1990MHz

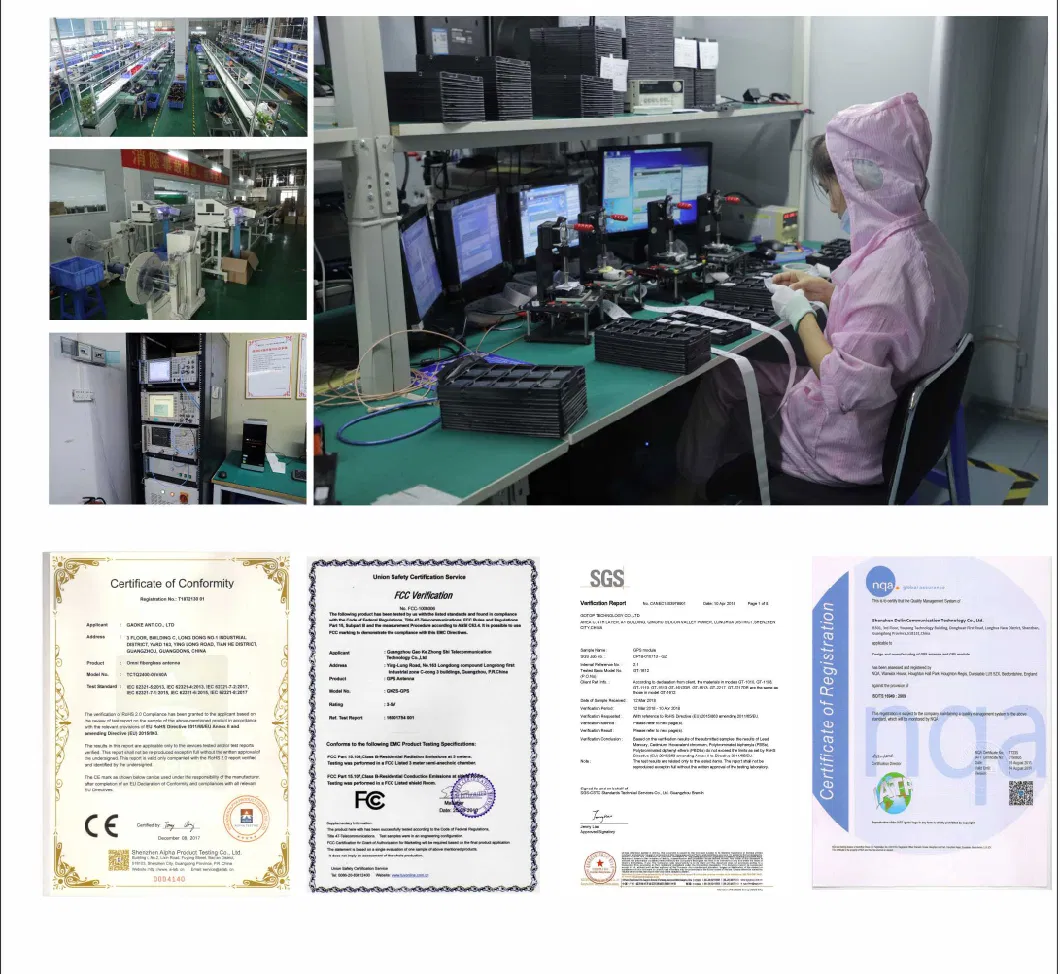

Certification
Ce, RoHS, ISO9001:2008,FCC
Lead Time
3-5 Days
Sample Time
1-3 Days
Weight
<3G
Transport Package
Polybag, Paper Cartoon
Origin
China
HS Code
8517707090
Production Capacity
30000/Day
Product Description

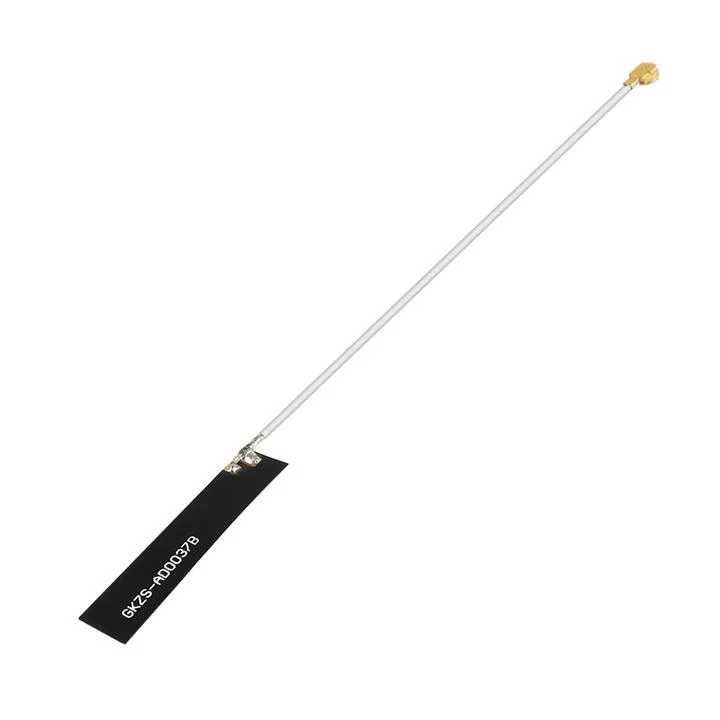

1. GSM Internal Antenna Feature:
- Delicated outlook
- Small size
- Full time work
- Low standing wave, anti-interference
Various mobile devices:Such as mobile phone, tablet, locator, etc
3. Specifications Of GSM Internal Antenna:
| Electrical Specifications | Mechanical Properties | |||
| Product Name | GSM Internal Antenna | Size | 34×6mm | |
| Frequency | 824~960MHz 1850~1990MHz | Material | FPC | |
| Impedance | 50Ω | Connector | IPEX | |
| V.S.W.R | ≤2.0 | Cable | 1.13 | |
| Gain | 1.0 | Length | 100mm | |
| Polarization | Vertical | Other Size | 8*50mm/17*50mm/8*106mm/ 25*5*1mm/28*85mm | |
| Direction | Omni | Working Temp. | -40ºC~+85ºC | |
