Product Description

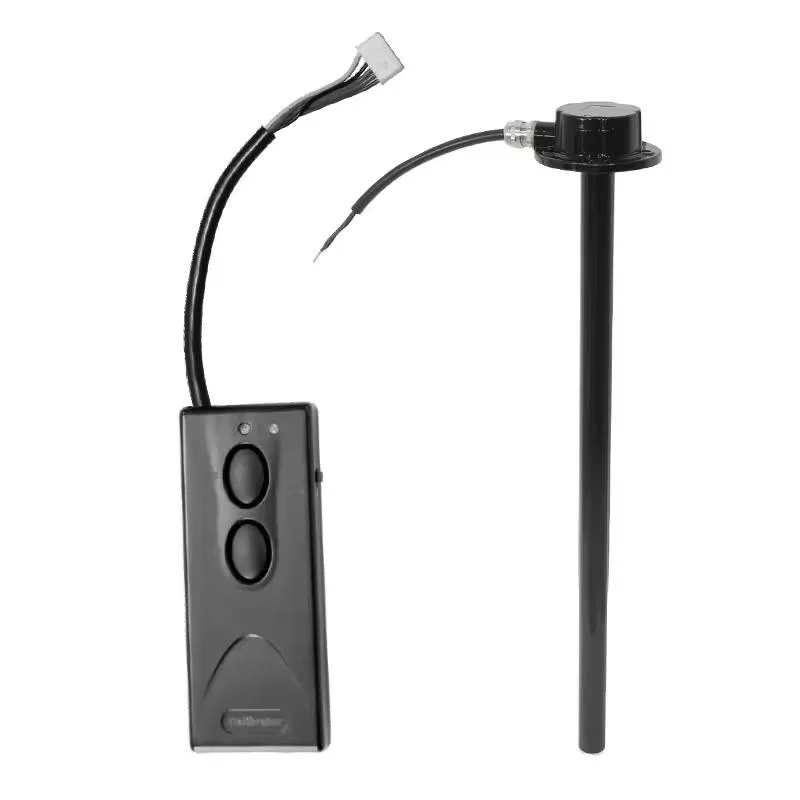

With capacitance as the sensitive element, PL331 level sensor continuous detects the height of the fuel level with 1mm
resolution. Sensor length can also be shorten to fit tanks with different heights. With a wide range of voltage input, and easily
adjustable length, the PL331 is easy to setup and works with a wide range of applications.
| Material | Plastic and Aluminum alloy | |
| Length range | 200 -3,000mm for standard (can be customized) | |
| Installation | SAE standard 5 holes | |
| Flanges | Various types of flanges are available for fitting fuel tank if necessary | |
| Mounting | 5 pieces of M5 screws and 2 mm thick NBR gasket, or recommended 2 mm thick FPM gasket if be used in gas tank. | |
| Connector | Brand Delphi, Tyco or others is available according to customer's Requirement | |
| Supply voltages | 10 to 32V | |
| Rated current for alarm switch | 500mA | |
Output signal | Digital range | RS485, RS232 |
| Voltage range | 0.5 to 4.5V or 0 to 5V (can be customized) | |
| Current range | 0 to 20mA or 4 to 20mA | |
| Operating temperatures | - 40 to 85°C | |
| Protection rank | IP65 | |
| Option | high/low alarm | |
| Resolution range | 1 mm | |
Atech sensor co,. Ltd. specializes in sensor production and sales. The main products includes pressure sensor and transmitter, Level transmitter, water level sensor, pressure gauge, melt pressure transmitter, temperture sensor,pressure tranducer ,oil pressure sensor,Explosion proof pressure transducer, low-pressure transducer,Commerical Marine pressure transducer,Fuel pressure & Fuel tank pressure sensor,Liquid pressure sensor, ultrasonic level sensor, pressure sensensor chip, load cell,ect.
As manufacturer, based on technology innovation, good production capacity and strict quality control, we can meet different customers' OEM and ODM demands.
As a manufacturer and exporter, we provide the best products with our rich experience and perfessional technoloty for our customers.
