Product Description
Waterproof high power wireless control jamming system AAT-PJW-6C, is developed specially for prison and other large, wireless control prison Jammer sensitive facilities, such as military installation and government compounds. It is upgraded from our prison jamming system AAT-PJW-6C . The jamming system can be controlled remotely with activation and deactivation of the system. It is carried out only by using internet or Ethernet throght the centeral computer.

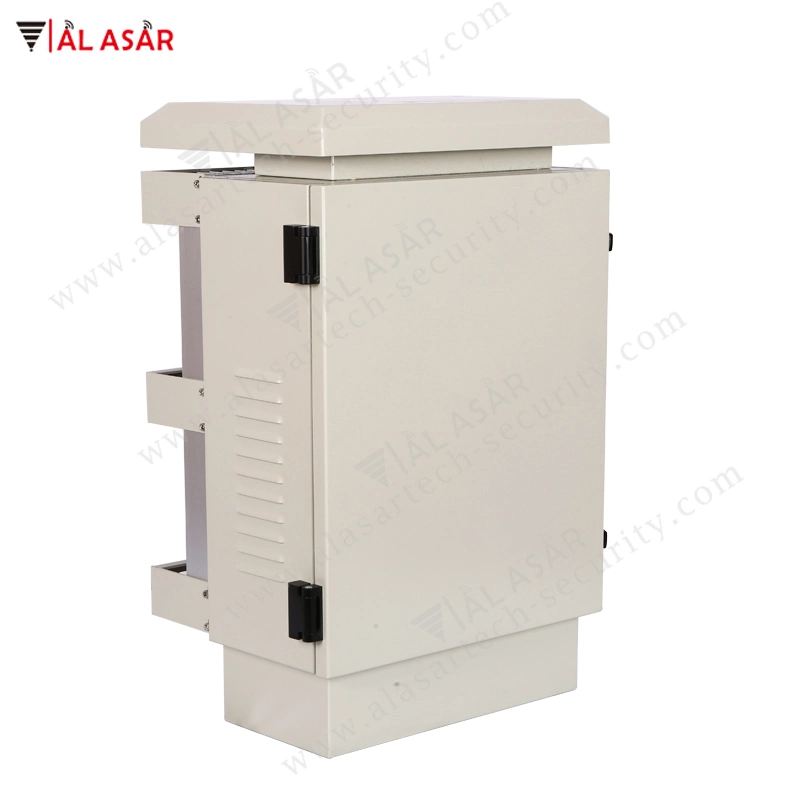

AAT-PJW-6C is constructed inside a special metal enclosure, incorporating efficient "smart active" cooling system self protection jammer with incoming air filters, which enable the system to operate 365 days/24 Hours/ 7 days continuously even in hot weather. Its secure design ensures that the prison inmates and unauthorized prison personnel cannot tamper with the safe and continuous operation of the system.1. Jamming frequency and Output power are adjustable via 433mhz/135mhz wireless control ,LAN remote control or Internet remote control, Any frequency channel within one module can be selected to be blocked.
2. shielding range: radius 120 ~ 500 meters (-75dBm, outdoor open environment, depending on the surrounding base station distance);3 Types of shielded signals: 4G, 3G (LTE/TD/WCDMA/CDMA2000), GSM (2G), CDMA (2G), DCS (1900M); 4G LET, 5G
4, network RJ45 remote control function, can be convenient wired, or wireless networking (wireless 433M or 135M transmission);
5. Each modular can be on/off and work in separately.
6. support each band power adjustable.
7. With a near-end network monitoring server, it can remotely monitor the parameter information of all the equipment in the entire prison at the same time, including the working status, frequency, power, temperature, voltage, current and other parameters of the module inside the equipment, and has the whole machine failure, open door state, position movement, standing wave open circuit alarm, module failure including low power, overtemperature, overvoltage, overload, standing wave alarm, etc.
Effective shielding: CDMA, GSM, SCDMA, DCS1800MHz, PCS1900MHz, PHS, GPS, WIFI,3G WCDMA, 4G LTE,5G ,VHF,UHF ect, 2.4G & 5.8G wireless signal.
Item | Parameter |
Frequency | CH1 - 758-803MHz 100W CH2 - 864-894 MHz 100W CH3 - 941-960 MHz 100W CH4 -1805-1910MHz 100W CH5 - 2110-2170MHz 100W CH6 - 2570-2690MHz 100W |
RF Output Power (Watt) | 600W |
AC220V Power Consumption | 1580W Current 7.5A |
Power Supply Voltage | 220VAC/110VAC , |
Power output | DC28V, 13A*6 |
Jamming distance | 120-500m (depending on the environment signal strength), The better choose directional antenna, shileding effective more better.) |
Power Adjust | Each band can power adjustable by software. |
Remeto control | Yes |
Device Size | 780*530*325mm |
Gross Weight | 60kg |
Control System | 85, or wireless 433M; Server network RJ45 |
Jamming Sourcce | VCO |
Humidity | 5%~80% |
Operational Temperature | -40°C ~ +60°C |
Relative humidity | 35~85% |
Cooling system | Active smart with interaged incoming air filter |
Waterproof Level | IP66 |
Antenna type | directional antenna or omni antenna optional |
Installation environment | Wall mounted/ holding pole |
Installation height | 5-15m |
Housing | Metal Enclosure |
Prisions and other large sensitive location such as military or gorermental compounds. It can also use in Oil and Gas strage Facilities and fields, Security Service, Military Units, Secret Services, Museums, Border Patrol and Drug Enforcement, Customs.ect.

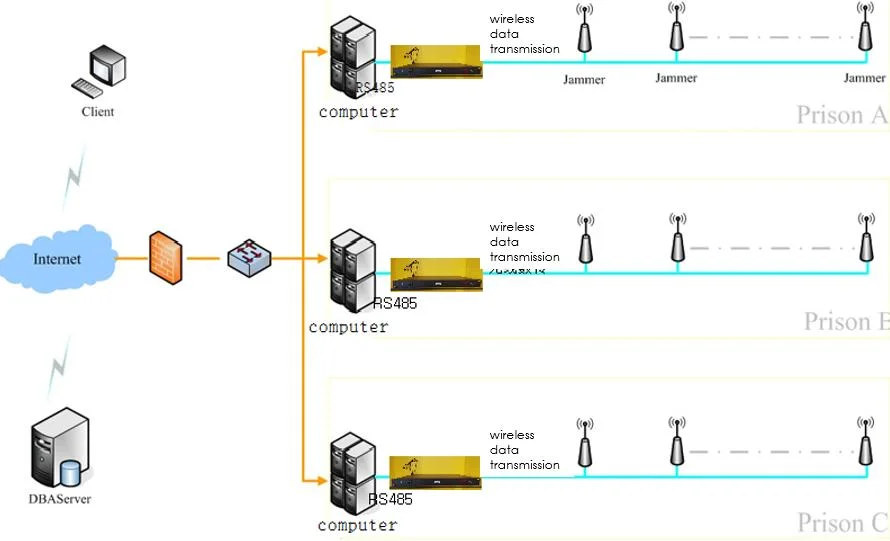

Network topology diagram:
Jammer Monitoring Software Platform Introduction:
The Jammer Monitoring Software Platform allows customers to keep a query or control all Jammers accessed to the Internet, and all the alarm information jammers real-time feedback to the customer, so that customers can stay at home to have all information of jammers running, and adjust the control parameters of the Jammers to suit the operating environment of the installed area, greatly reduce the customer's maintenance workload.
The platform enables real-time display of all Jammers' output power, operating temperature, alarm information (including over-temperature alarm, under-power alarms, VSWR alarms, Door open alarms, etc.), and all information is specific to each Channel, real-effective, convenient and quick.
This platform also allows you to change the login page photo and upload your own logo by yourself.
