Basic Info.
Packaging & Delivery
Product Description
Applications:
- 2G/3G/WLAN/LTE Wireless System
Features:
- Broadband
- Sealed with radome for strong protection
| GPS Antenna | |
| GL-DY226 | |
| Electrical Index | |
| Frequency-MHz | 1575.42±1 |
| VSWR | <1.5 |
| Nominal Impedance-Ω | 50 |
| Polarization | RHCP, |
| Axial Ratio | 3dB(max) |
| LNA Gain | 28±2dB |
| Noise Figure | <1.5 |
| Supply Voltage | 3-5V DC |
| Current Consumption | 5-15mA |
| Mechanical Index | |
| Cable Length | RG174,2m |
| Connector | Fakra C blue or SMA male |
| Antenna Dimension-mm | 40*30*15.1 |
| Installation Way | Magnet or Adhesive |
| Ingress Protection | IP65~IP67(exclude cable outlet) |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
| Environmentally Friendly | ROHS Compliant |
| Temperature-ºC | -40~+85 |
| Humidity- | 5~95 |
Product Description:

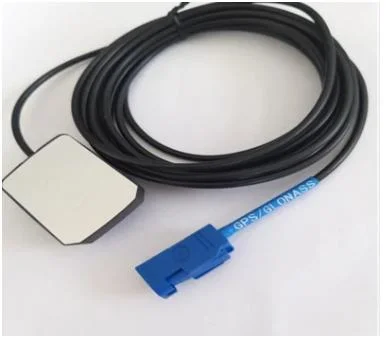

Introducing the Magnet GPS/Glonass Antenna with Fakra C Blue Connector Hot Sales from ZHENGZHOU LEHENG ELECTRONIC TECHNOLOGY CO., LIMITED. This versatile antenna is perfect for indoor and outdoor use, making it ideal for car antennas. With its strong protection ability and broadband capabilities, it is designed to work with 2G/3G/WLAN/LTE Wireless Systems. Its microwave wavelength ensures optimal performance. Get your hands on this high-quality GPS antenna today!
| Noise Figure | <1.5 |
| Supply Voltage | 3-5V DC |
| Current Consumption | 5-15mA |
| Mechanical Index | |
| Cable Length | RG174,2m |
| Connector | Fakra C blue or SMA male |
| Antenna Dimension-mm | 40*30*15.1 |
| Installation Way | Magnet or Adhesive |
| Ingress Protection | IP65~IP67(exclude cable outlet) |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
| Environmentally Friendly | ROHS Compliant |
FAQ
A: Absolutely! We are thrilled to offer you a sample of our amazing product.
Q: Do you have the GNS S Antenna 100% assembled and in stock?
A: Unfortunately, we do not have the GNSS antenna pre-assembled and in stock. However, we will assemble them specifically for your order, including the samples.
Q: What's the delivery time?
A: Get ready to be amazed! For samples, you can expect a lightning-fast delivery within 3-5 working days. And for quantities below 5K, we'll have your order shipped to you in just 10-15 working days.
Q: Could I use my own LOGO or design on the goods?
A: Absolutely! We love to see our customers' creativity shine. You can customize your logo and design on our mass-produced items.
Q: What's the payment term?
A: We offer a variety of payment options to make your life easier. You can choose from T/T, Paypal, Western Union, and more.
Q: May I visit your company?
A: Of course! We would be thrilled to have you visit our company anytime. You are always welcome.
Q: How long is the warranty?
A: We stand behind the quality of our products. That's why we offer a generous one-year warranty for antennas and a half-year warranty for assembly cables and connectors.
Product Description:
Introducing the Magnet GPS/Glonass Antenna with Fakra C Blue Connector - Hot Sales!
Looking for the perfect antenna for your car? Look no further! Our Magnet GPS/Glonass Antenna is here to revolutionize your GPS experience.
With its sleek design and powerful performance, this antenna is perfect for both indoor and outdoor use. Whether you're on a road trip or navigating through the city, our antenna will ensure a strong and stable GPS signal.
Featuring a microwave working wavelength, this antenna is designed to provide exceptional performance and reliability. Say goodbye to weak signals and hello to accurate navigation.
But that's not all! Our antenna also comes with a convenient SMA Male Connector, making installation a breeze. Simply attach it to your car and enjoy hassle-free GPS connectivity.
And the best part? You can customize this antenna with your own logo and design. Make it uniquely yours!
So why wait? Experience the power of our Magnet GPS/Glonass Antenna with Fakra C Blue Connector - Hot Sales today and take your GPS navigation to the next level!
