Product Description
| Item | Specifications | ||
| GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±1MHz |
| Band Width | CF±5 MHz | ||
| Polarization | RHCP | ||
| Gain | 2dBic(Zenith) | ||
| V.S.W.R | <1.5 | ||
| Impendance | 50Ω | ||
| Axial Ratio | 3dB(max) | ||
| LNA | Gain | 28±2dB | |
| Noise Figure | <1.5 | ||
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | ||
| V.S.W.R | <2.0 | ||
| Supply Voltage | 2.2~5V DC | ||
| Current Consumption | 5~15mA | ||
| GSM Antenna | Frequency Range | 824~960MHz/1710~2170MHz | |
| V.S.W.R | <2.0(min) | ||
| Polarization | Linear | ||
| Gain | 2.0dBi | ||
| Impendance | 50Ω | ||
| WIFI Antenna | Frequency Range | 2400~2483.5MHz | |
| Band Width | 83.5MHz | ||
| Polarization | Linear | ||
| Gain | 3dBi | ||
| V.S.W.R | <2.0(min) | ||
| Impendance | 50Ω | ||
| Mechanical | Cable | RG174 | |
| Connector | SMA/MCX/FAKRA or others | ||
| Material | ABS | ||
| Mounting Method | Magnet/Adhesive | ||
Q: Can I receive a sample?
A: Certainly! We are pleased to offer you a sample.
Q: Do you have GNSS Antenna fully assembled and in stock?
A: No, all GNSS antennas are assembled specifically for your orders, including the samples.
Q: What is the estimated delivery time?
A: The sample will be delivered within 3-5 working days, while quantities below 5K will take approximately 10-15 working days.
Q: Can I use my own logo or design on the goods?
A: Absolutely! We provide customization options for logos and designs on mass production.
Q: What are the available payment terms?
A: We accept various payment methods, including T/T, Paypal, and Western Union.
Q: Am I allowed to visit your company?
A: Of course! You are welcome to visit our company at any time.
Q: How long is the warranty period?
A: Our antennas come with a one-year warranty, while assembly cables and connectors have a warranty period of half a year.
Product Description:

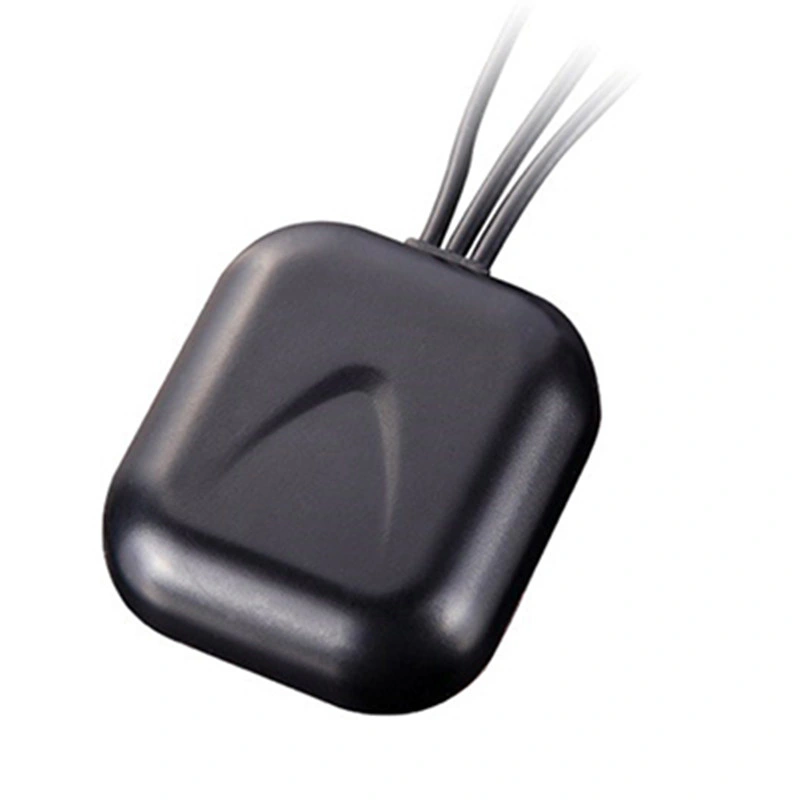

SMA/MCX/Fakra Connector Gl-DY056-3 GPS+GSM+WiFi Combined Antenna
Introducing our Combo Antenna, the perfect solution for all your communication needs. This Combination Antenna, also known as a GPS+GSM+WiFi Antenna, is designed to provide exceptional performance and reliability.
With its sleek black color and SMA Connector, this antenna not only delivers superior functionality but also offers a stylish and professional appearance. You can even customize the antenna with your own logo, adding a personal touch to your mass production.
Whether you require a Communication Antenna for various applications or need it for specific occasions, our Combo Antenna is the ideal choice. Its working wavelength in the microwave range ensures optimal performance in any situation.
Trust in the quality and durability of our product, backed by a one-year warranty for antennas and a half-year warranty for assembly cables and connectors.
Experience the convenience and reliability of our SMA/MCX/Fakra Connector Gl-DY056-3 GPS+GSM+WiFi Combined Antenna. Order now and elevate your communication experience!
