Basic Info.
Model NO.
RG174
Wire Core Material

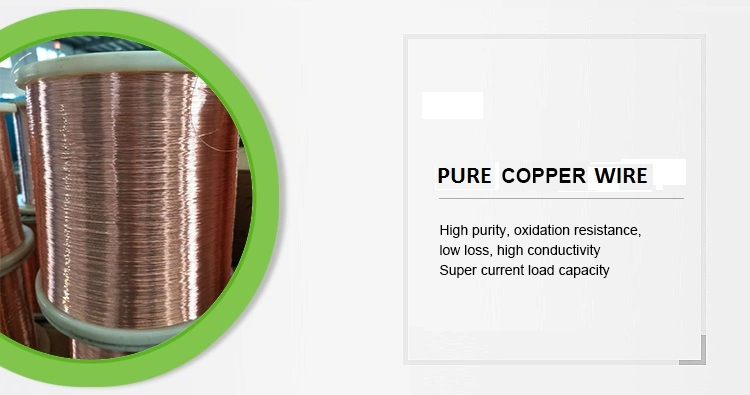

Bare Copper Wire
Certification
CE, RoHS, CCC
Model
Rg174
Brand
Elesun
Trademark
ELESUN
Origin
China
HS Code
8544200000
Production Capacity
10000m/Day
Product Description
RG174 /U coaxial cable specifications
Description:
. Standard Mil-c-17
. Equivalent to :SYV-50-2(GB Standard)
. Insulation Material: Solid PE
.Shielding:Tinned Copper Braiding
.Jacket.PVC
. Color: Black
. Impedance:50Ω±2
Typical Application:RG-174 can be used in transmission of data signals in applications such as LAN/WAN or GPS pigtail antenna,car antenna
Best Feature: smaller diameter, super flexible.The working temperature RG174 coax cable ranges from -40°C to +80°C
Standard Mil-c-17
. Equivalent to :SYV-50-2(GB Standard)
. Insulation Material: Solid PE
.Shielding:Tinned Copper Braiding
.Jacket.PVC
. Color: Black
. Impedance:50Ω±2
Typical Application:RG-174 can be used in transmission of data signals in applications such as LAN/WAN or GPS pigtail antenna,car antenna
Best Feature: smaller diameter, super flexible.The working temperature RG174 coax cable ranges from -40°C to +80°C
Description:
. Standard Mil-c-17
. Equivalent to :SYV-50-2(GB Standard)
. Insulation Material: Solid PE
.Shielding:Tinned Copper Braiding
.Jacket.PVC
. Color: Black
. Impedance:50Ω±2
Typical Application:RG-174 can be used in transmission of data signals in applications such as LAN/WAN or GPS pigtail antenna,car antenna
Best Feature: smaller diameter, super flexible.The working temperature RG174 coax cable ranges from -40°C to +80°C
| RG174/U coaxial cable specifications | |
| Material of Inner Conductor | Cu, CCS, TC |
| Structure of Inner Conductor | 7/0.16mm |
| Material of Insulation | Solid PE |
| Diameter of Insulation | 1.52mm |
| Material of Braiding(Shielding) | Bare Copper, Tinned Copper |
| Structure of Braiding(Shielding) | 80*0.10mm |
| Material of Jacket | PVC |
| Diameter of Jacket | 2.8mm |
| Working temp | -40ºC/80ºC |
| Impedance | 50Ω±2 |
| Voltage | 1500V |
| Weight | 15KG/KM |
Standard Mil-c-17 . Equivalent to :SYV-50-2(GB Standard)
. Insulation Material: Solid PE
.Shielding:Tinned Copper Braiding
.Jacket.PVC
. Color: Black
. Impedance:50Ω±2
Typical Application:RG-174 can be used in transmission of data signals in applications such as LAN/WAN or GPS pigtail antenna,car antenna
Best Feature: smaller diameter, super flexible.The working temperature RG174 coax cable ranges from -40°C to +80°C
