Product Description
Double Module Patch Gnss Antenna with U8 GPS&Glonass Module
Delin DU3026-G module series is a family of stand alone GNSS receivers featuring the high performance u-b-lox 7 positioningengine.
These flexible and cost effective receivers offer numerous connectivity options in aminiature 30x26x8.0mm package.Their compact architecture and power and memory options make DU3026-G modules idea l for battery operated mobile devices with very strict cost and space constraints.
The 56-channel u-b-lox 7 positioning engine boasts a Time-To-First-Fix (TTFF) of under 1 second. The dedicated acquisition engine,with over 1 million correlatorsis capable of massive parallel time/frequency space searches,enabling it to find satellites inst antly. Innovative design and technology suppresses jamming sources and mitigates multipath effects, giving
DU3026-G GNSS receivers excellent navigation performance even in the most challenging environments.DU3026-G modules
are not designed for life saving or supporting devices or for aviation an d should not be used in products that could in any way negatively
impact the security or health of the user or third parties or that could cause damage to goods.
View Features
Build on high performance, low-power M8030-KT chip set
Ultra high sensitivity: -167dBm
Extremely fast TTFF at low signal level
Built in high gain LNA
Low power consumption:[email protected]
NMEA-0183 compliant protocol or custom protocol
Operating voltage: 3.0V--5.0V
Operating temperature range:-40 to 85ºC
Patch Antenna Size: 25x25x4mm

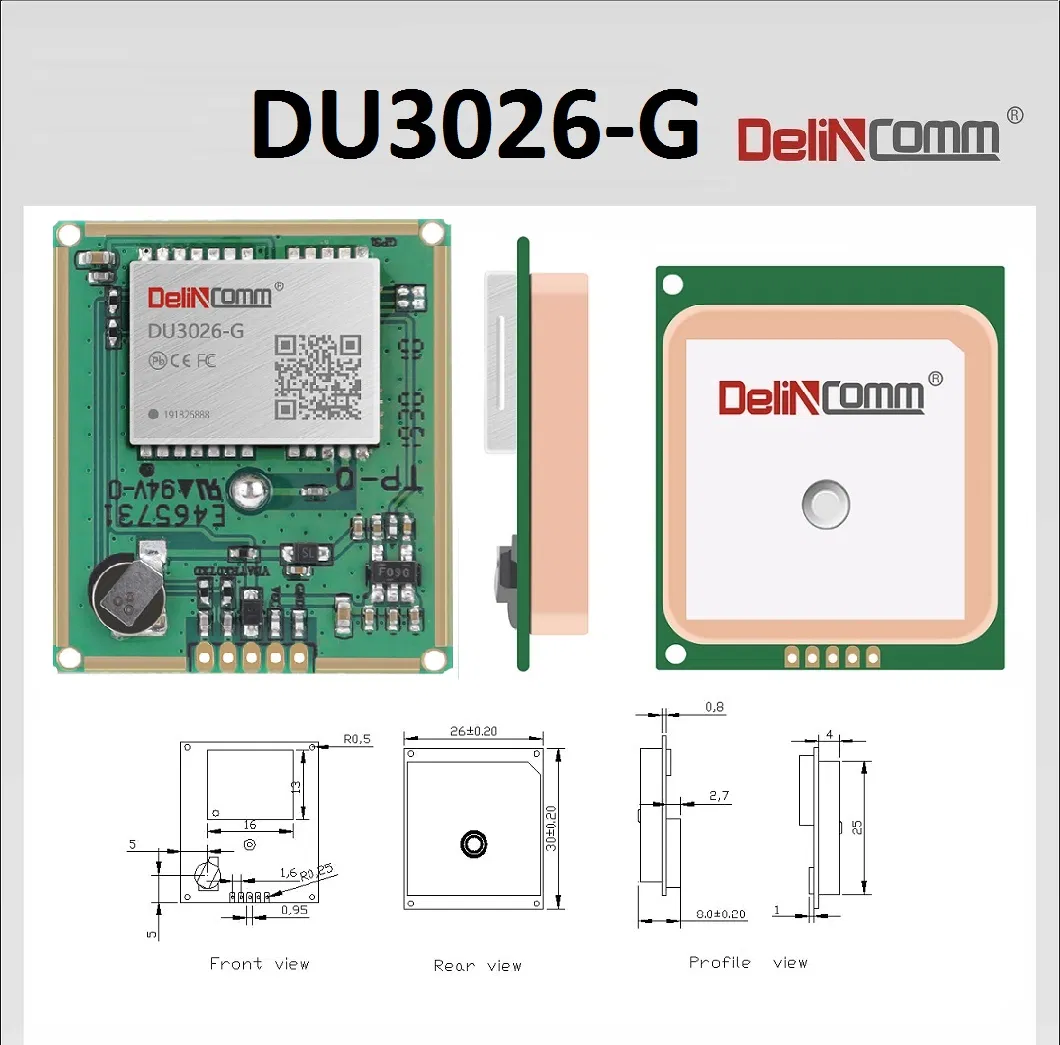

Small form factor: 30x26x8.0mm
Communication type: UART/TTL
RoHS compliant (Lead-free)
