Basic Info.
Model NO.
GL-DY011L
Material
ABS
Directionality
Linear
VSWR
<3
Nature of Operation
Receiving Antenna
Sturcture Form
Wire Antenna
Dimensionality
One-Dimensional Antenna
PCS/CTN
200
Weight/CTN
12.5
Connector
SMA or Fakra or MCX
Transport Package
48*30*28cm
Specification
71.5*71.5*14.5mm
Trademark
LEHENG
Origin
China
HS Code
8529109090
Production Capacity
3000PCS/Day
Packaging & Delivery
Package Size
53.00cm * 23.00cm * 27.00cm
Package Gross Weight
10.000kg

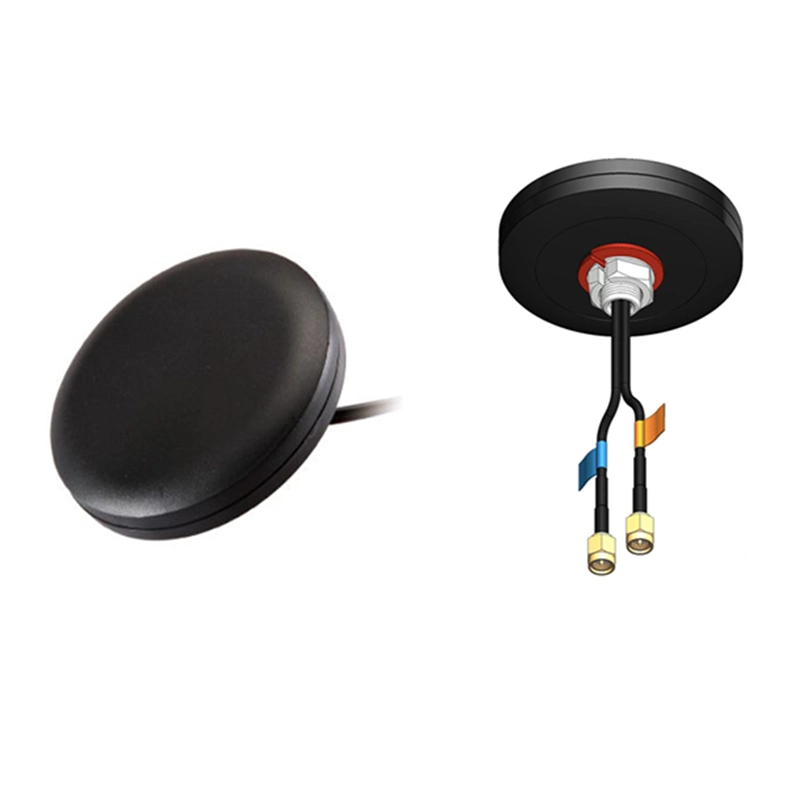

Product Description
| Item | Specifications | |
| LTE Antenna MAIN | Frequency Range | 698~960MHz/1710~2690MHz |
| V.S.W.R | <3.0 | |
| Polarization | Linear | |
| Gain | 2.5dBi(Zenith) | |
| Impedance | 50Ω | |
| LTE Antenna AUX | Frequency Range | 698~960MHz/1710~2690MHz |
| V.S.W.R | <3.0 | |
| Polarization | Linear | |
| Gain | 2.0dBi(Zenith) | |
| Impedance | 50Ω | |
| Mechanical | Cable | RG174 |
| Connector | SMA or others | |
| Material | ABS | |
| Mounting Method | Screw | |
| Environmental | Operating Temperature | -40ºC~+85ºC |
| Relative Humidity | Up to 95% | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant | |
About Us:

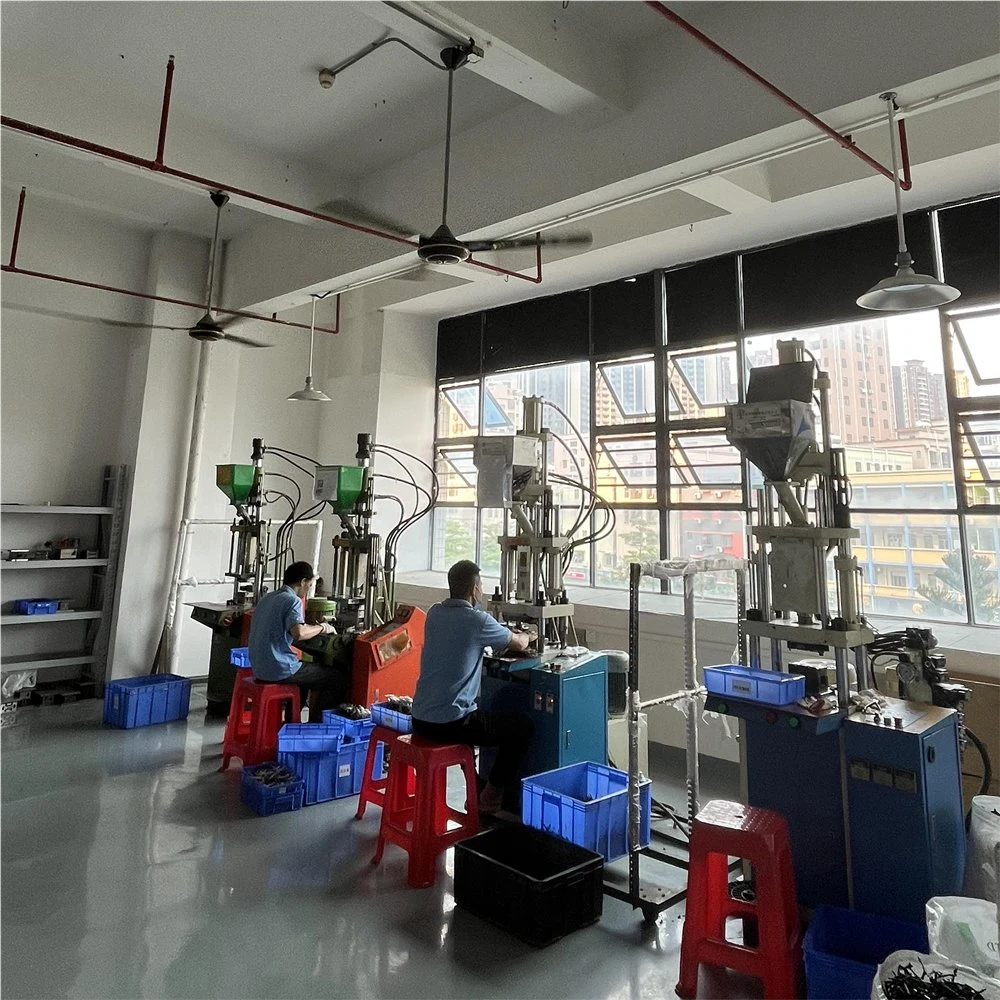

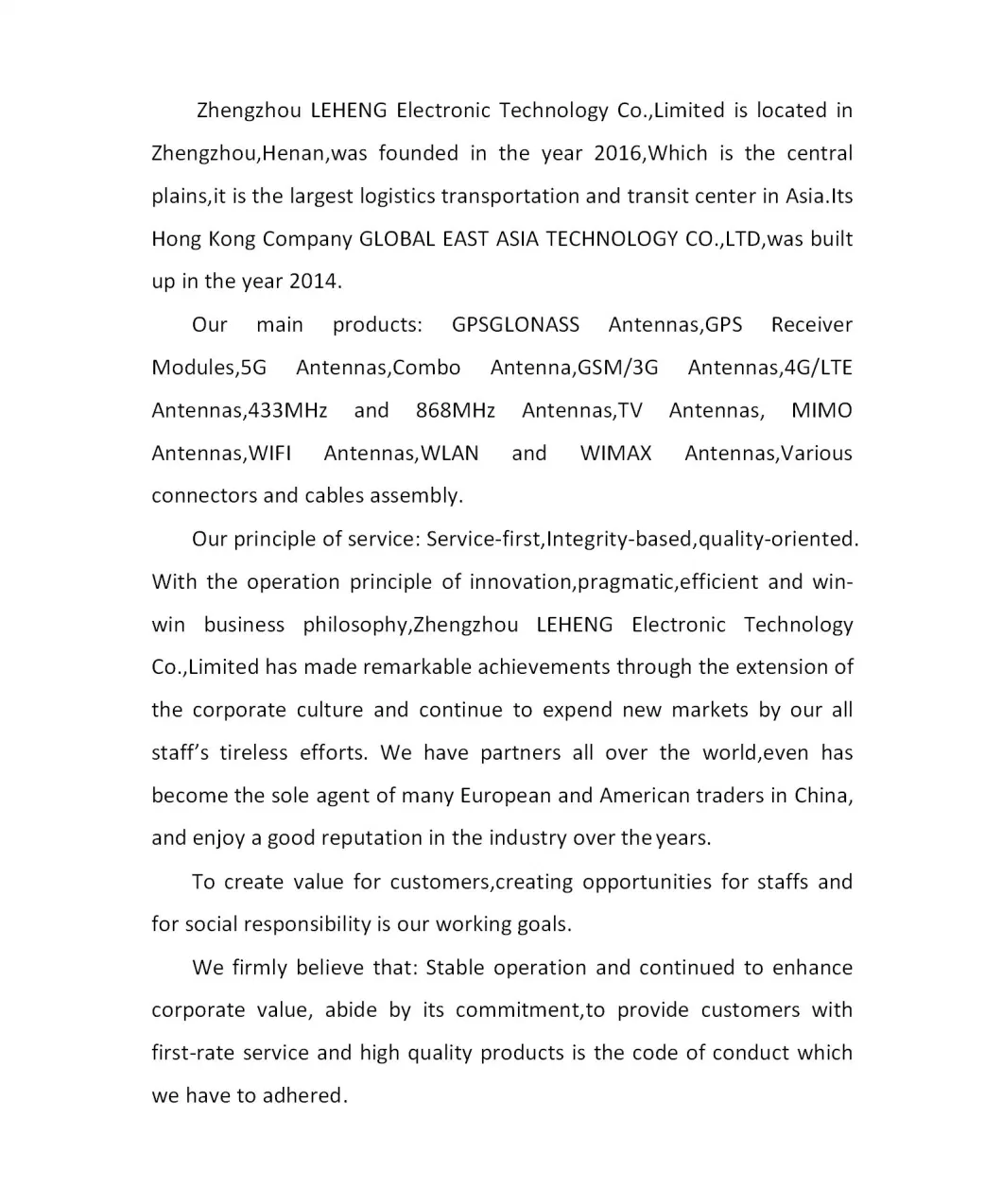

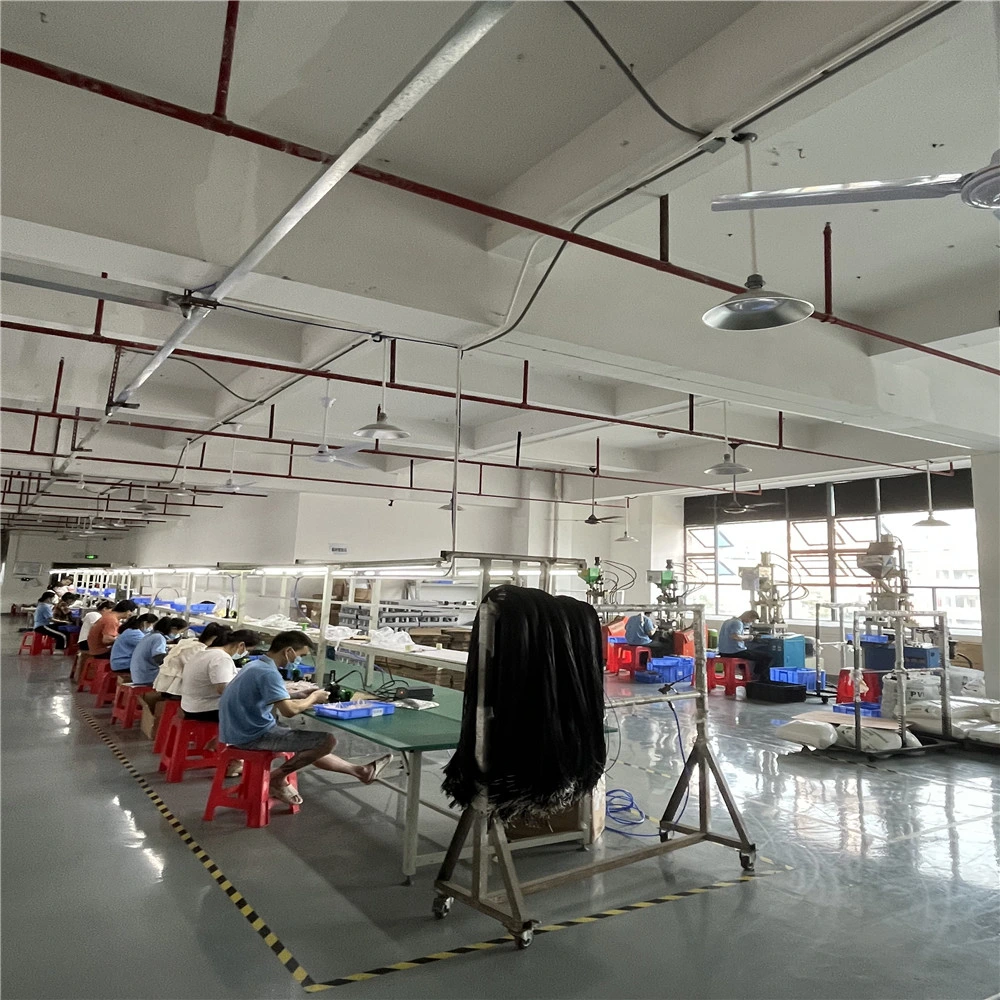

Zhengzhou LEHENG Electronic Technology Co., Ltd was built up in the year 2016, it is located in Zhengzhou, Henan, China, which is the central plains, it is the largest logistics transportation and transit center in Asia.
Our principle of service: Serivce-First, Integrity-based, Quality-Opirented, With the operation principle of innovation, pragmatic, efficient and win-win business philosophy, Zhengzhou LEHENG Electronic Technology Co, Ltd has made remarkable achievements through the extension of corporate culture and continue to expend new markets by our all staffs′tireless efforts. We have partners all over the world, even has become the sole agent of many European and American traders in China, and enjoy a good reputation in the industry over the years.
To creat value for customers, creating opportunities for staffs and for social responsibility is our final working goals.
FAQ:
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
