Basic Info.
Model NO.
DL-2.4&S5.9&S4G-FAKRAZM3-WHYG
Base Antenna
High Gain Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Wire Antenna
Dimensionality
Two-Dimensional Antenna
Specification
Size 103x94x63mm
Trademark
DeliNComm
Origin
China

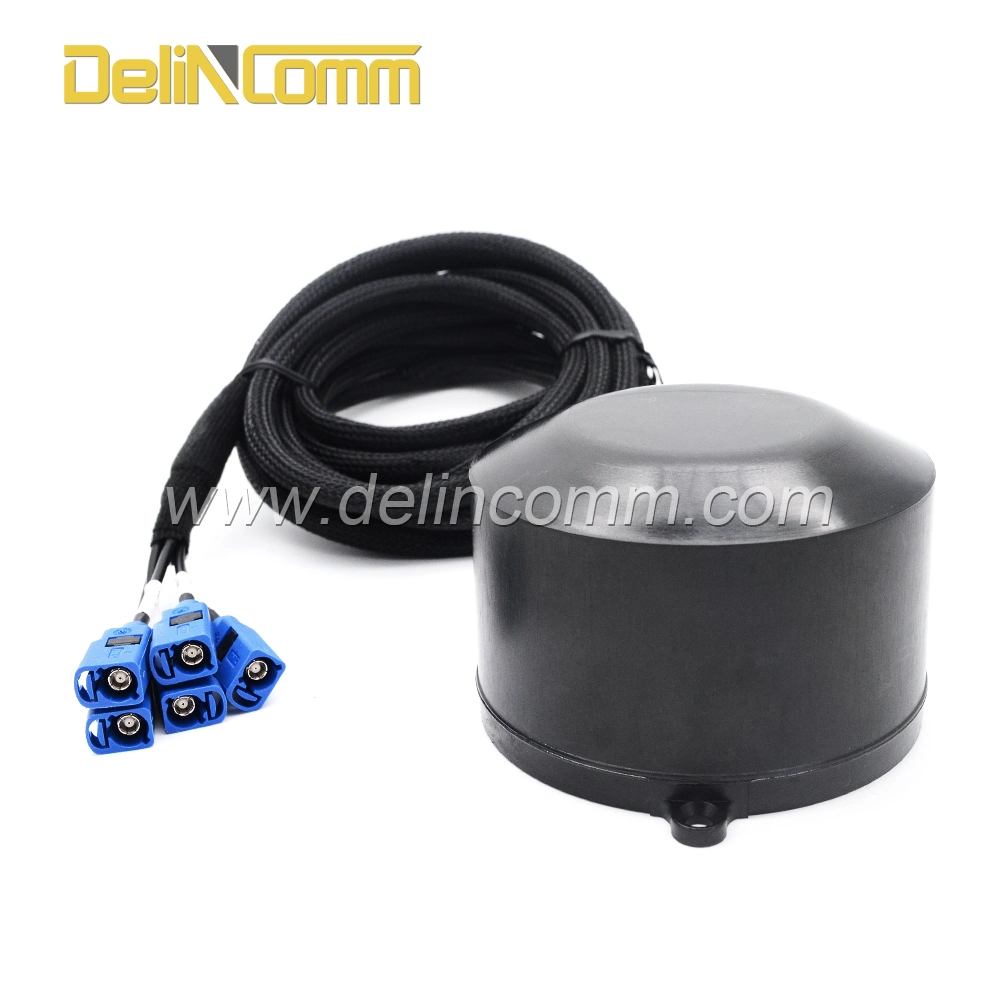

Product Description
Antenna Characteristics
| No. | Design Specifications | Typical | ||
| 1 | Antenna Form | Five-in-one Combined Antenna | ||
| 2 | Working Frequency | 2400-2500MHz | 5850-5950MHz (dual) | 824-960 1710-2170 2300-2690MHz(dual) |
| 3 | Gain | -5dBi | -5dBi | -2dBi |
| 4 | Antenna Efficiency | 13% | 13% | 30% |
| 5 | V.S.W.R. | ≤2.0 | ≤2.0 | ≤2.5 |
| 6 | Polarization | Linear Polarization | Linear Polarization | Linear Polarization |
| 7 | Radiation Pattern | Omnidirectional | Omnidirectional | Omnidirectional |
| 8 | Impedance | 50Ω | 50Ω | 50Ω |
| 9 | Power Handling | 33dbm | 33dbm | 33dbm |
| 10 | Connector Type | FAKRA-C,RG174 cable-3M | FAKRA-C,RG174 cable-3M | FAKRA-C,RG174 cable-3M |
| 11 | Overall Dimensions | 103x94x63mm | ||
| 12 | Weight | 293g | ||
Mechanical Specifications
| Size | 103x94x63mm | Mounting | |
| Weight | 293g | Connector | FAKRA |
| Color | Black | Cable | RG174 -3M |
| Operating Temp. | -40ºC~85ºC | Storing Temp. | -45ºC~85ºC |
| Operating Humidity | 0%~95% | Storing Humidity | 0%~95% |
