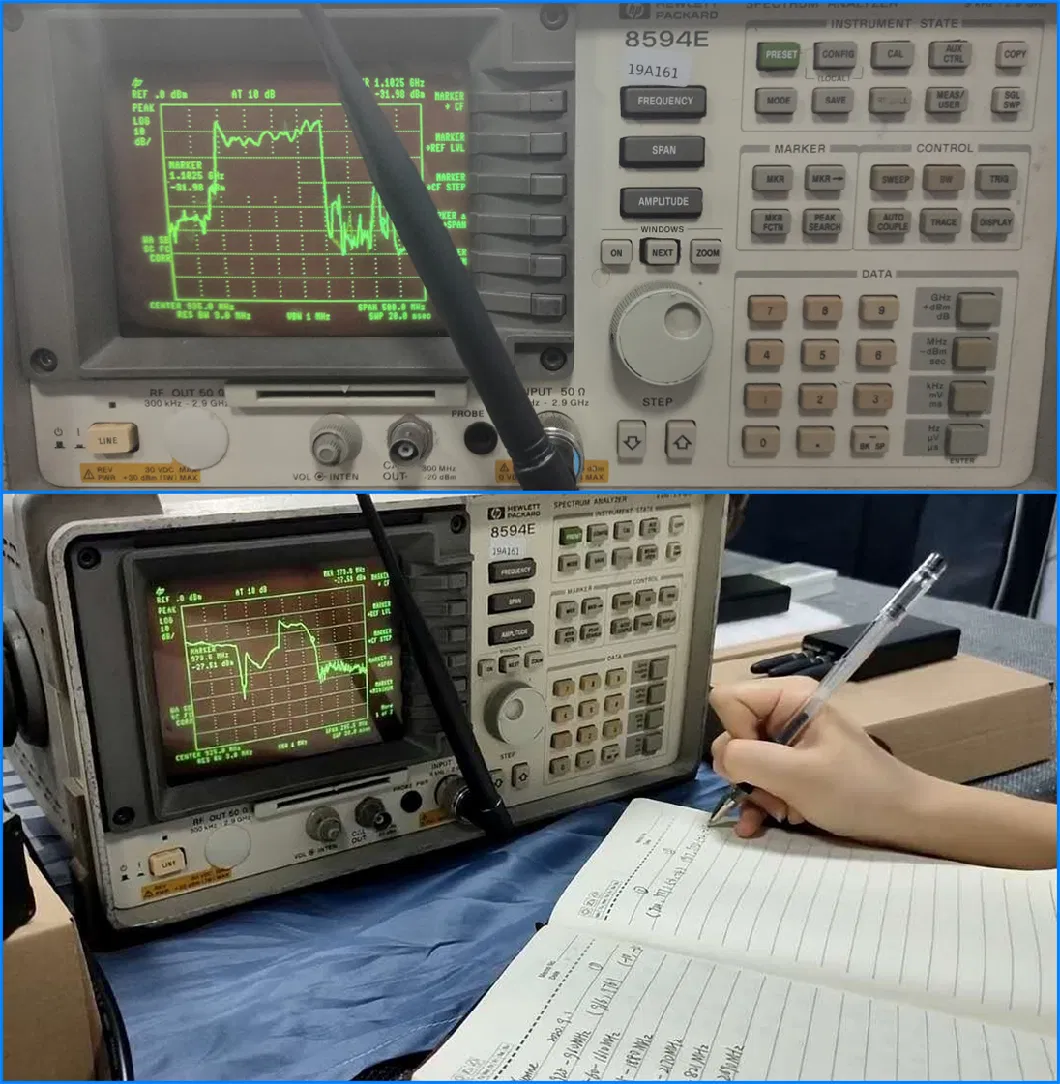

- Frequency Checking
- Signal Jammer
- Company Profile
Basic Info.
Product Description
Product Feature:
1. Wide band, high gain and Low VSWR.
2. High quality Aluminum Alloy material.
3. Good Environmental Adaptability.
4. With the Cable leads.
5. Can be horizontal or Vertical installation
Specification

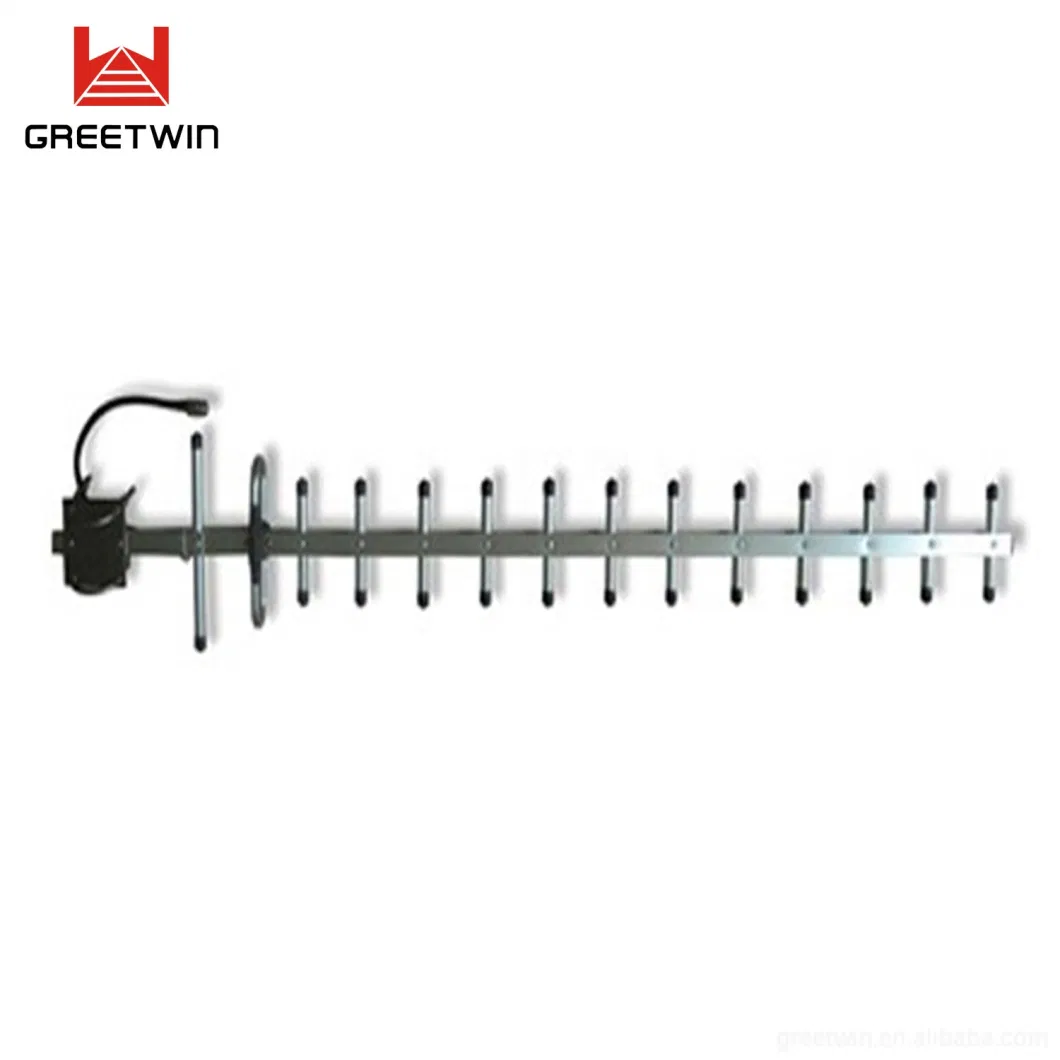

| Model | GW-YAGI800-2700-20d |
| Electrical specifications | |
| Frequency range | 824-960/1710-2700 |
| Polarization | Vertical |
| Gain | 20 |
| Front-to-back ratio | >20 |
| Impedance | 50 |
| VSWR | ≤2.5 |
| Maximum input power | 50 |
| Lightning protection | DC Ground |
| Mechanical specifications | |
| Connector | N-Female |
| Element | 18 |
| Dimension | 910*190*55 |
| Antenna weight | 1 |
| Cable | 30cm RG58,Black |
| Rated wind velocity | 60 |
| Mounting hardware | Φ35~φ50 |
Applications:
1. Mobile Communication Network Optimization and Indoor distribution system
2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio
Q1.Payment Method
T/T, Western Union, Paypal, and Credit Card are available,
and we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please Contact us with more details.
Q2.Delivery Date&Lead Time
| Quantity | Lead time | Delivery to American/Middle East/Asia/Europe |
| <20 pcs | 3-5 business days | 3-7 business days by DHL 5-7 business days by FedEx/UPS |
| 20-100 pcs | 7-15 business days | |
| >100 pcs | 15-24 business days |
Q3. Can I customize frequencies?
Yes, we can customize 2G/3G/4G/5G/LoJack 173MHz, VHF, UHF, Walkie-talkie, interphone, 433MHz,315MHz, 868MHz, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, UMTS,3G,4G, LTE 700, LTE 800, LTE 2300, LTE 2600, GPS L1, GPS L2, Galileo, Compass, Glonass, WIFI, Bluetooth, WIMAX, UAV, Drone, 5.8G, etc.
Q4. What should I do if I don't know about frequency in my country?
Please feel free to Contact us with your inquiry, we will find the frequency you need and address your problems.

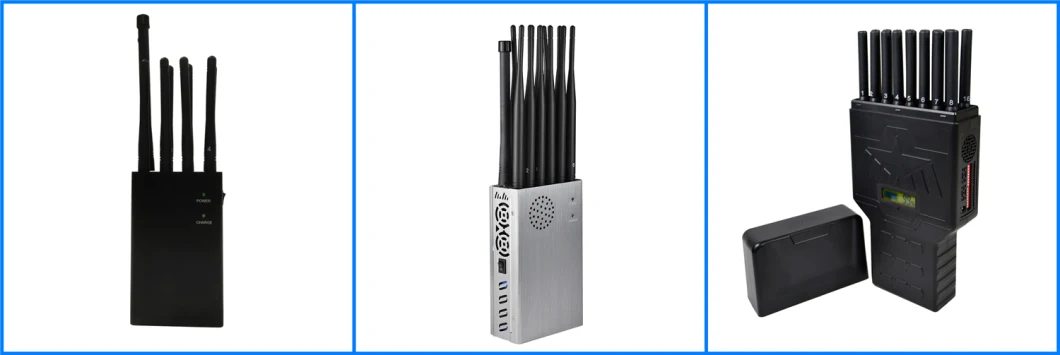

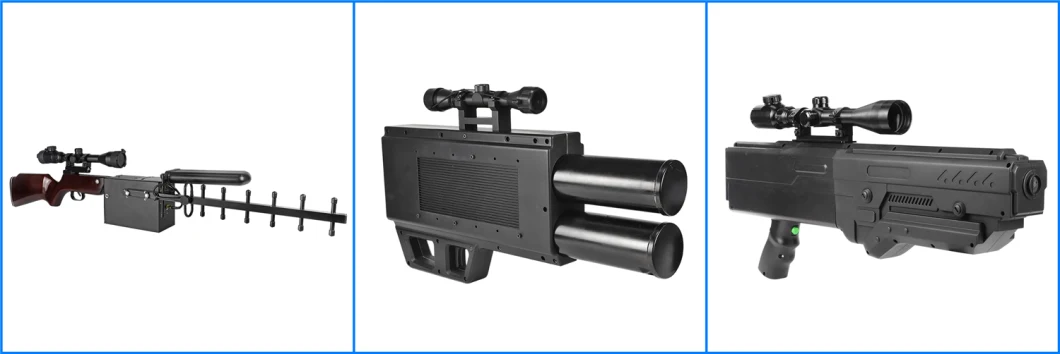

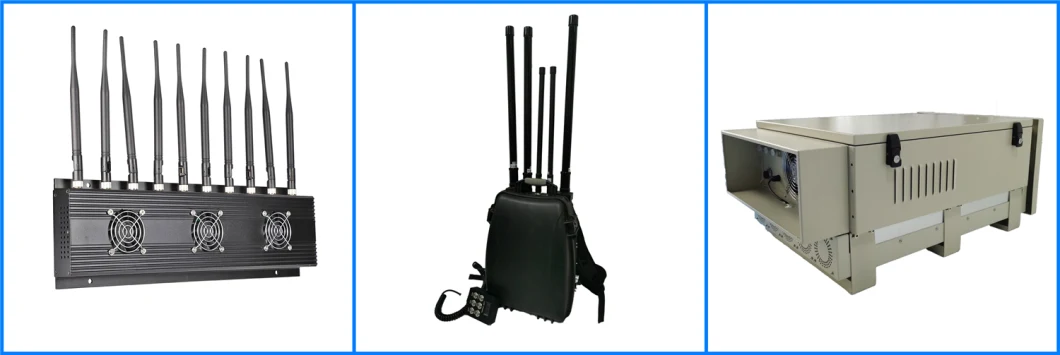

More signal jammer please CLICK it!

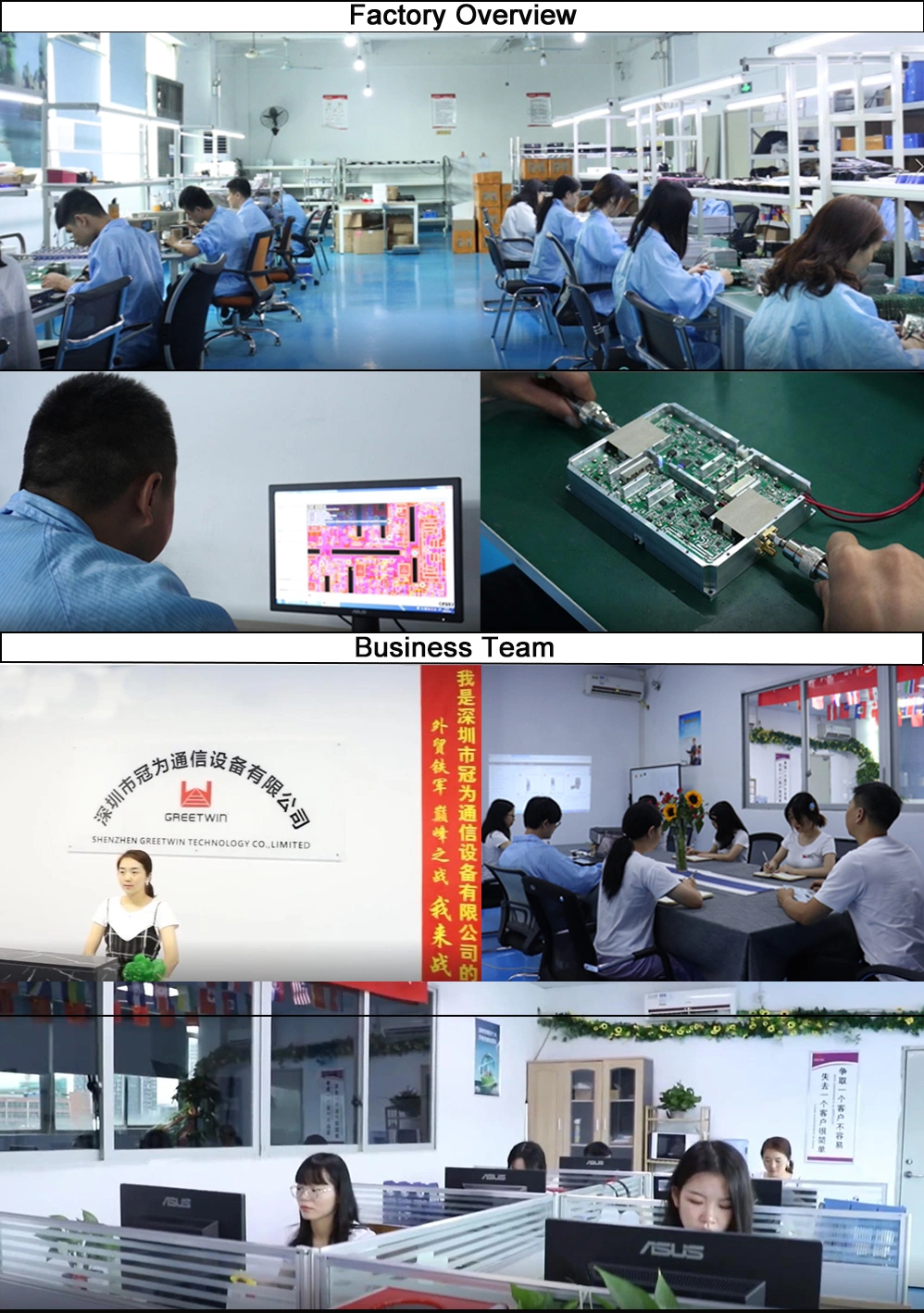

360° Full View of Factory Evaluation
