Basic Info.
Model NO.
QFL8MU3
Maximum Height
18000 M
Transport Package
1kg/Reel
Specification
10*9.7mm
Trademark
Qianfeng
Origin
Shenzhen Guangdong
HS Code
85269120
Product Description
Specification
Features
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(50.00%),Western Europe(20.00%),South
America(20.00%),Eastern Europe(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.what can you buy from us?
gps module
4. why should you buy from us not from other suppliers?
- self-owned R& D team for hardware and software

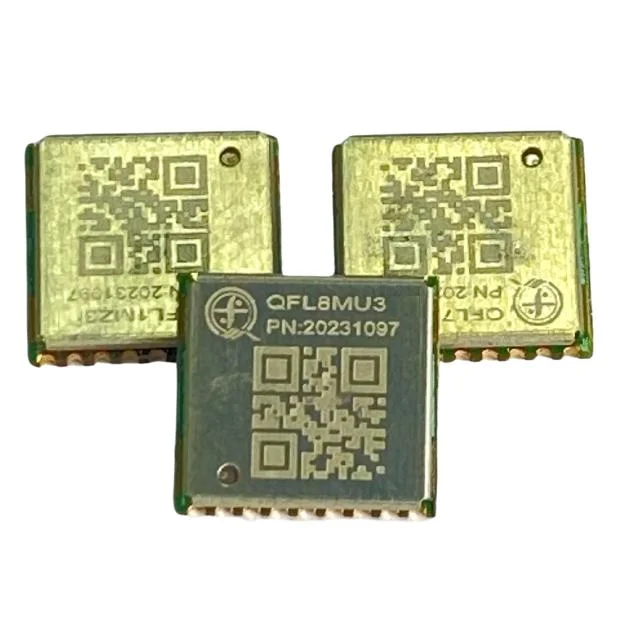

| Model number | QFL8MU3 |
| Chip | UBX-8030-KT |
| Baud rates | 4800, 19200, 38400, 57600, 115200bps (default 9600 baud rate) |
| Channel | 56CH |
| Sensitivity | Tracking: -162dBm Capture: -148dBm |
| Cold start | 35 seconds on average |
| Warm start | Average 10 seconds |
| Hot start | Average 1 second |
| Accuracy | < 2.5 m[Autonomous] [50%] <3m[SBAS] |
| Maximum height | 18000 m |
| Maximum speed | 515 m/s |
| Maximum acceleration | <= 4G |
| Update frequency | 1-10Hz |
| Physical properties | |
| Type | 24 pin stamp holes |
| Dimension | 10.0mm * 9.7 mm * 2.4mm |
| Power supply | |
| Power supply | 3.3VDC ±5% |
| Backup voltage | 1.8~3.6VDC |
| Power consumption | External passive antenna 21mA, external active antenna 35mA |
| Working environment | |
| Humidity range | 5% to 95% non-condensing |
| Operating temperature | -20ºC to 85ºC |
| Storage temperature | -40ºC to 85ºC |
| Single-sided surface mount, secondary SMT solution, faster application |
| RoHS compliant |
| Using 0.5PPM high-precision TCXO to complete error compensation such as quadrature error/temperature drif |
| Built-in LNA, low noise signal amplifier |
| Rich data output rate: 9600bps (default) [optional: 4800, 19200, 38400, 57600, 115200] |
| Can be arbitrarily set with the output sentence: NMEA 0183 V3.0 (GGA, GSA, GSV, RMC, VTG, GLL) |
| Built-in RTC crystal |
| Support adjustable data refresh rate: 1Hz-10Hz |
| Support positioning PPS indicator light: always on or off before positioning; flashing after positioning |
| Positioning mode: GPS+GLONASS (default), GPS+Beidou (optional) |
Product applications

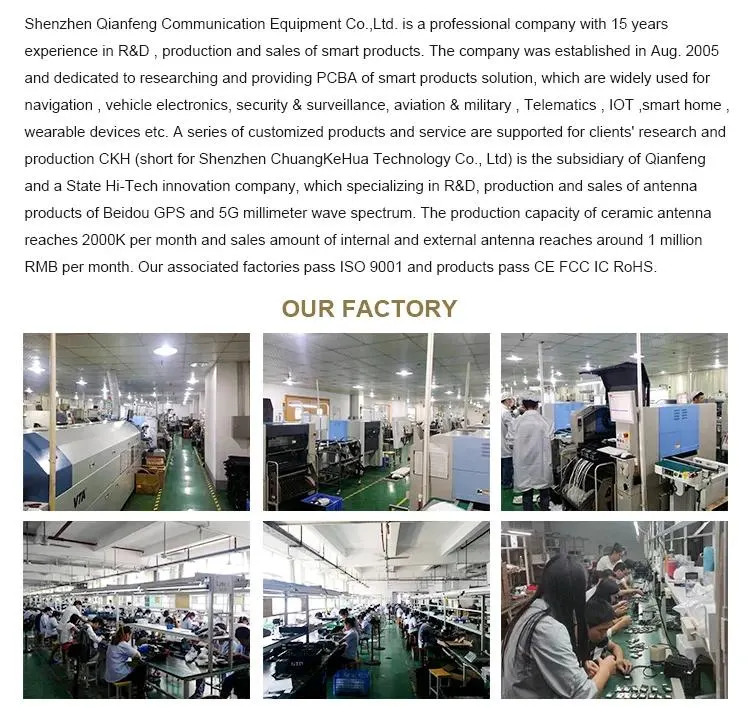

Company Introduction Introduction
FAQ | GPS for PDA, Pocket PCs and other portable devices |
| Track and trace products such as personal positioning and car positioning |
| Mapping products such as area measurement and distance measurement |
| Synchronous U-track recording and GPS/Beidou data point calibration |
| TC Time and Timing |
