Basic Info.
Model NO.
ET-07
Warranty
2 Years
Application
Vehicle
Accuracy
5 Meters
OEM
Supported
Tracking Method
Web & APP
Battery
Built-in 240mAh
Communication
2g & 4G
Transport Package
Gift Box
Specification
CE
Trademark
KingSword
Origin
China
HS Code
8526919090
Production Capacity
30000 Sets Per Month
Packaging & Delivery
Package Size
15.00cm * 10.00cm * 4.00cm
Package Gross Weight
0.200kg
Product Description
| size | 82*45*16mm |
| Working Voltage | DC:8~100V |
| Input Fuse | 2A |
| Working Temperature | -20~75°C |
| Humidity | 10% to 90% |
| CPU | EC600U-EU |
| GPS features | Re-acquisition sensitivity: -160dBm Tracking sensitivity: -162dBm Accuracy of locating: 2~10 meters Accuracy of speed calculation: <0.1m/s Updating rate of locating: 1~5Hz |
| I/O Port | Standard: 4 cables connection: (standard)
Extensive connections: (optional)
|
| Current (@12V) | Sleep mode: 2~4mA working Current: 25~50mA |

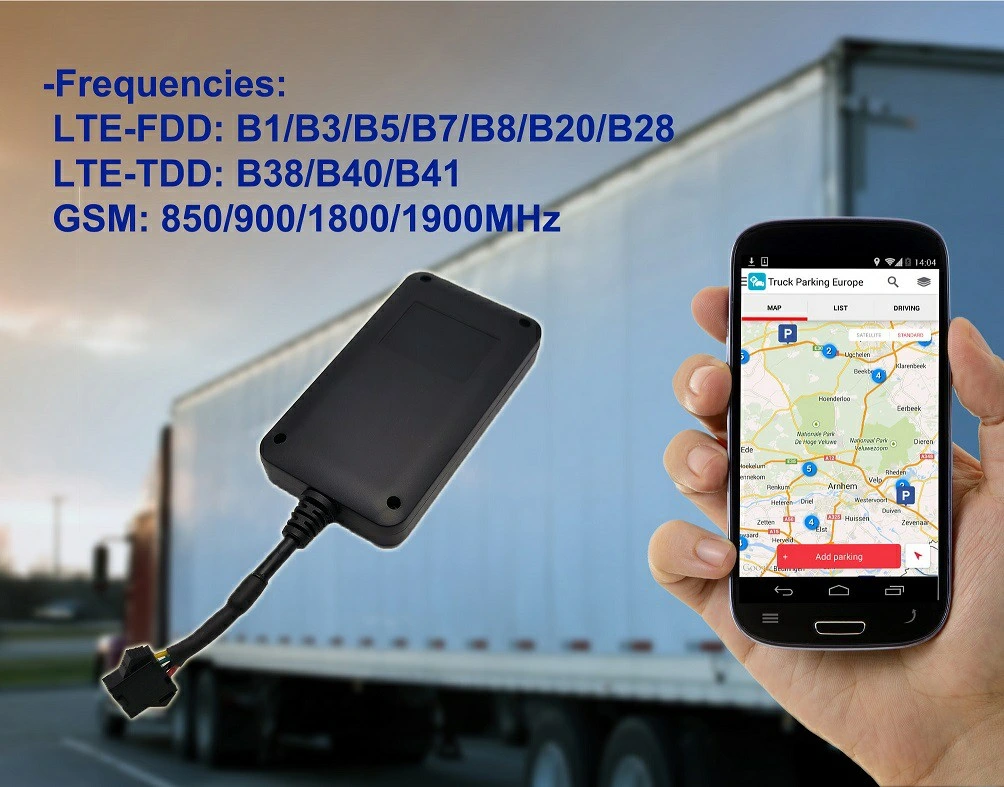

Frequency bands:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: 850/900/1800/1900MHz
Installation:
1. Red wire connects to positive 8V-100V.
2. Black wire connects to ground
3. Yellow wire connects to relay device. (should select relay according to vehicle baterry voltage)
4. Green wire connects to ACC or other alarm devices (that is to connect 8V-60V storage battery or impulse to access ACC and alarm mode)
Main features:
- Small size and easy installing
- Support GPS and Beidou system
- Fast and accurate locating
- Static drift suppression
- Store data automatically when no GPRS communication
- Built-in battery (support 5 hours working time after external power is off)
- Low power consumption
- Built-in reset controller ensures system not get stuck
- Support UDP & TCP communication
Basic functions:
Position query Alarm modes
Geo fence
Engine ignition detection
Remote control engine power
Mileage query and correction
Power saving mode
SOS (optional)
Settings:
Data upload interval Time zone
Car plate name
SMS & GPRS switch
Alarm SMS switch
DNS
IP & port
TCP & UDP switch
Alarms:
External power cut alarm Vibration alarm
Movement alarm
Geo fence alarm
Over speed alarm
Low battery level alarm
Jamming detection alarm
SOS alarm (optional)
Power saving mode:
Sleep by time Wake up by shock sensor
Checkings:
Firmware version SIM card ICCID
Device working status
IMEI
Network functions:
PC web/APP tracking Real time tracking
Alarm record
History play back

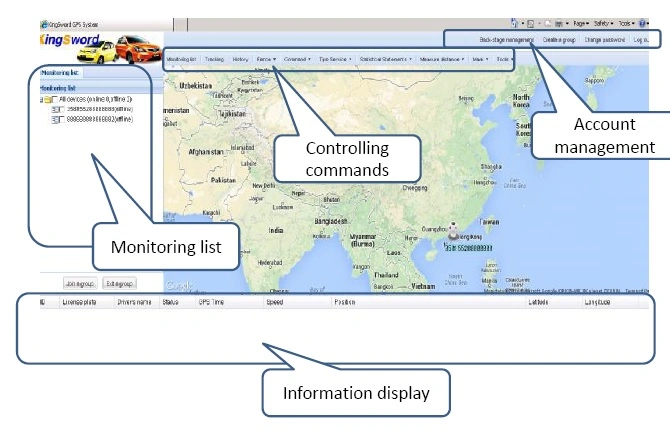

| Free GPS Tracking System |
We provide a free GPS Tracking System ( ), simple and easy for management and tracking!
- Web-based tracking system
- Mobile APP
| Features | Descriptions |
| Real-Time Tracking | Track the vehicle by real-time |
| History | Replay the driving history and could export report file in excel. |
| Group Management | User can manage the vehicle by setup of different groups |
| Online controlling | Turn on or turn off the engine via relay |
| Online configuring | Configure device via GPRS |
| Alarms record | Anti-theft alarm, over speed alarm, external power cut alarm, etc. |
| Geo-fence | Set up a zone to monitor the vehicle to enter or exit this zone. |
| Marking and distance measuring | Mark the points on the map and measure the distance between 2 locations |
1. Are you a manufacturer or trading company?
We are a manufacturer for GPS Tracker since 2014.
2. Do you accept rebranding?
Yes, rebranding on product case and package box is available.
3. Do you offer hardware/firmware customization?
Yes, we offer OEM/ODM service. We have engineers of HW and SW with more than 8 years of experience.
4. How are quality control and warranty?
All products have been 100% strictly tested before shipment, and usually hardware could work 4 to 5 years without problem.
