Basic Info.
Model NO.
VP-4420-12
Base Antenna
High Gain Antenna
Nature of Operation
Transmitting Antenna
Sturcture Form
Wire Antenna
Dimensionality
Two-Dimensional Antenna
Connector
N Type Female
Transport Package
Bulb Sheet+Master Carton
Specification
450X210X65mm, 1KGS
Trademark
No
Origin
China
HS Code
8517710000
Production Capacity
5000PCS/Month
Product Description
698 to 960 MHz + 1710 to 2700 MHz + 3400 to 3800 MHz Low PIM VH-pol MIMO Panel DAS Antenna, 10 to 12 dBi, Wall Mount,SMA or 2 x Type N Female
Frequency Range: 698 MHz to 3.8 GHz
Polarization Type: Vertical/Horizontal
Gain: 10/12dBi
VSWR: ≤1.8
Impedance: 50
Max Power Input(W): 50
Connector Type: Type N Female
Description

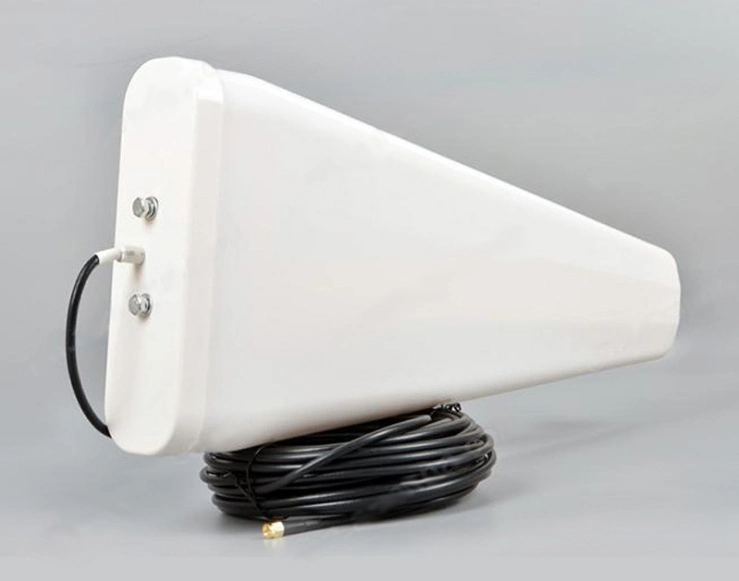

The VP-4420-12is a high-performance log periodic antenna specifically designed to aesthetically pleasing design. The VP-4420-12 operate from 698 to 3800 MHz for point-to-point applications, 5G, LTE, CMDA, LoRA, IoT, WIFI, where directivity and coverage are very important. VP-4420-12 has 11 dBi of gain which is ideal for boosting.
The VP-4420-12 has Vertical polarization, 65 horizontal beamwidth, and 50 vertical beamwidth for point-to-point communication. The included mounting brackets allow for either vertical or horizontal mounting configurations with easy install instructions. Where there is weak coverage and needs to reach further distances, log periodic antennas are best. The directional VP-4420-12 antenna has 1 Type N Female connector on a 8 inches long pigtail.
VP-4420-12 log periodic antenna operates in 5G bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n67, n70, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n97, n98 with a 11 dBi max. This 698 to 3800 MHz 5G directional log periodic antenna with Type N connector is in stock and ready to ship the same day. Our expert technical support and friendly, knowledgeable customer service personnel are available to assist you with your particular needs for high performance Log Periodic antenna engineered for superior performance antennas.
Features
Frequency coverage for 698 MHz to 3800 MHz
Very High Gain 11 dBi Low PIM Directional Antenna
Each connector covers wide band of frequencies
Easy Install universal mounting bracket provided
Weatherproof ABS - UV Resistance PVC radome
Pigtail - 8 inches
N-Type Female connector
Frequency Range: 698 MHz to 3.8 GHz
Polarization Type: Vertical/Horizontal
Gain: 10/12dBi
VSWR: ≤1.8
Impedance: 50
Max Power Input(W): 50
Connector Type: Type N Female
| Electrical | |
| Frequency range(MHz) | 698-2100-2700Mhz |
| Impedance | 50 Ω |
| V.S.W.R | ≤1.8 |
| Gain | 10/11DBi |
| Polarization type | Vertical |
| Power Capacity (w) | 50 W |
| F/B ratio | ≥10 dbi |
| Lightning protection | DC ground |
| Mechanical | |
| connector | Type N female or customized |
| Color | White |
| Radome Material | ABS |
| Dimension | 440x209x70mm |
| Weight (kg) | 1kgs |
| Mounting pole dia | 30mm-50mm |
| Environmental | |
| Temperature range | -45° to 60°C/+140°F |
| Wind speed | 240 km/h / 150 mph |
| UV protection | UV resistant powder coat |
| Ingress protection | IP55 rain resistant |
Description
The VP-4420-12is a high-performance log periodic antenna specifically designed to aesthetically pleasing design. The VP-4420-12 operate from 698 to 3800 MHz for point-to-point applications, 5G, LTE, CMDA, LoRA, IoT, WIFI, where directivity and coverage are very important. VP-4420-12 has 11 dBi of gain which is ideal for boosting.
The VP-4420-12 has Vertical polarization, 65 horizontal beamwidth, and 50 vertical beamwidth for point-to-point communication. The included mounting brackets allow for either vertical or horizontal mounting configurations with easy install instructions. Where there is weak coverage and needs to reach further distances, log periodic antennas are best. The directional VP-4420-12 antenna has 1 Type N Female connector on a 8 inches long pigtail.
VP-4420-12 log periodic antenna operates in 5G bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n67, n70, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n97, n98 with a 11 dBi max. This 698 to 3800 MHz 5G directional log periodic antenna with Type N connector is in stock and ready to ship the same day. Our expert technical support and friendly, knowledgeable customer service personnel are available to assist you with your particular needs for high performance Log Periodic antenna engineered for superior performance antennas.
Features
Frequency coverage for 698 MHz to 3800 MHz
Very High Gain 11 dBi Low PIM Directional Antenna
Each connector covers wide band of frequencies
Easy Install universal mounting bracket provided
Weatherproof ABS - UV Resistance PVC radome
Pigtail - 8 inches
N-Type Female connector
