Basic Info.
Model NO.
R19G
Band
WCDMA: B1/B2/B3/B5/B8
Simcard
Nano Simcard
NFC
Sle 66r01, 13.56 MHz, Recordable
GPS Positioning Accuracy
5-15m
Standby
>3 Days
Battery
Rechargeable Lithium Polymer Battery 900mAh
Certificate
FCC ; CE ; RoHS
Transport Package
Gift Box with Standard Accessories Like Power Cabl
Specification
57mm x 41mm x 18mm
Trademark
Myrope
Origin
China
HS Code
8526919090
Production Capacity
10000 PCS/Week
Product Description

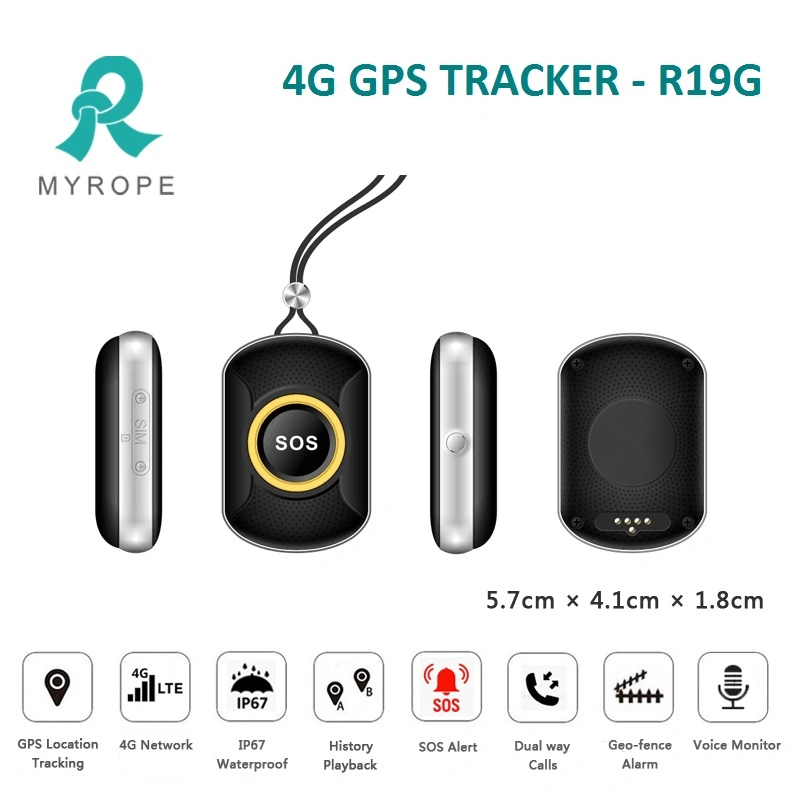

4G LTE GPS Tracking Device With SOS Button Wireless Micro GPS Tracker With Necklace
1. Functions
1) Accurate GPS positioning outdoors;
2) LBS and Wifi for accurate indoor positioning;
3) Waterproof IP 67;
4) Support 4G network;
5) Make call and answer call;
6) Voice monitoring;
7) SOS alert;
8) History playback;
9) GEO-Fence alarm;
10) Counting steps.
2.Specifications:
3.Web Platform & Mobile App:
Powerful Gps Tracking Platform Deployed in Cloud Cluster Server
Our company has our own web platform and mobile application. The web platform is hosted by cloud cluster server, which is consist of many servers. The advantages are:
1. The platform can host unlimited quantity of gps tracking device.
2. The server never goes down, because it has backup server.
3. The platform responses fast.
4. The platform supports customized reports and functions.
4. Strict QC:
Our company pays highly attention to QC. Before delivery, we check and test all units one by one to make sure that our clients receive 100% good quality products.
5. Company Profile:
Rope Innovation Co., Ltd. is a direct manufacturer with more than 10 years of experience in the GPS tracking industry. Its
headquarter locates in Shenzhen, China's most innovative city. Rope Innovation is a true innovator of high-quality GPS tracker devices and has satisfied the needs of customers from 120 countries around the world.
6. Customer Feedback:
1) Accurate GPS positioning outdoors;
2) LBS and Wifi for accurate indoor positioning;
3) Waterproof IP 67;
4) Support 4G network;
5) Make call and answer call;
6) Voice monitoring;
7) SOS alert;
8) History playback;
9) GEO-Fence alarm;
10) Counting steps.

2.Specifications:
Items | Parameters |
US/Australia Version | FDD: B1 B2 B3 B4 B5 B7 B12(17) B28A WCDMA: Band 1\2\5 GSM: Band 2\3\5\8; |
Asia/Europe Version | FDD: B1 B2 B3 B4 B5 B7 B20 WCDMA: Band 1\2\5\ GSM: Band 2\3\5\ |
GPS Positioning Accuracy | 5-15m |
GPS Antenna | Built-in |
GPS Channel | 22 channels |
GPS Sensitivity | -165 dBm |
LBS Positioning Accuracy | 100-1000m |
Wifi Positioning Accuracy | 5-25m |
Wifi Antenna | Built-in |
GSM Antenna | Built-in |
Operating System | Support android 2.3 and above, iOS 5.0 and above |
Language | English, support customized language |
Memory | 512M+4GB |
CPU | MTK 9820E |
Operating Temperature | -20ºC-70ºC |
Humidity | 5%-95% |

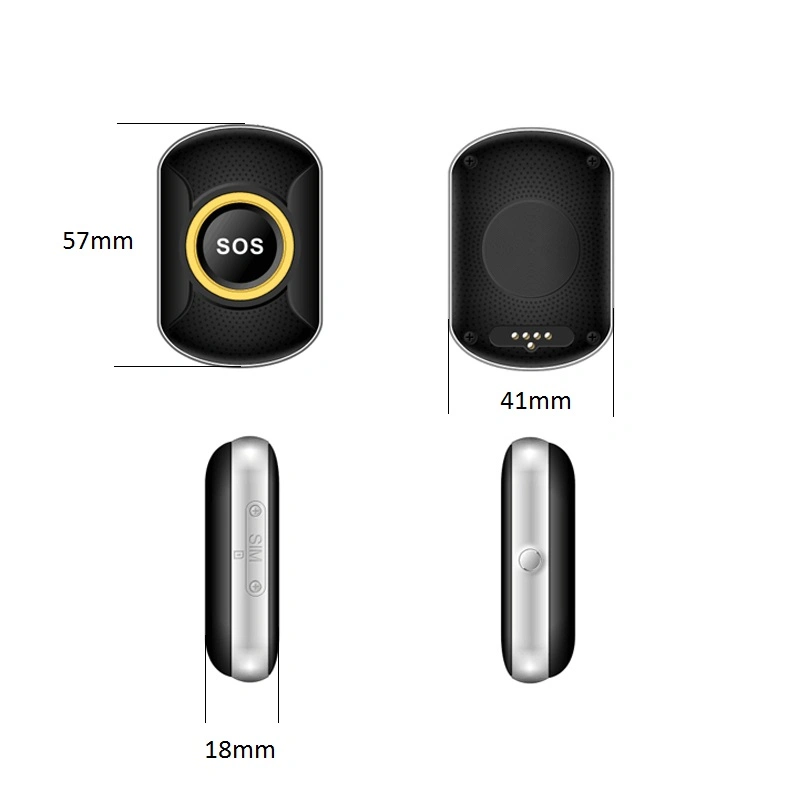

Size | 57mm×41mm×18mm |
Weight | 24g |
Waterproof Level | IP67 |
Power Supply | 3.7V-5V, 0.2A-0.5A |
Battery | 900mAh |
Battery Working Time | 3 days |
Pedometer | BMI160(3 axis accelerometer +3 axis gyroscope) |
Time Accuracy | Synchronize with GPS |

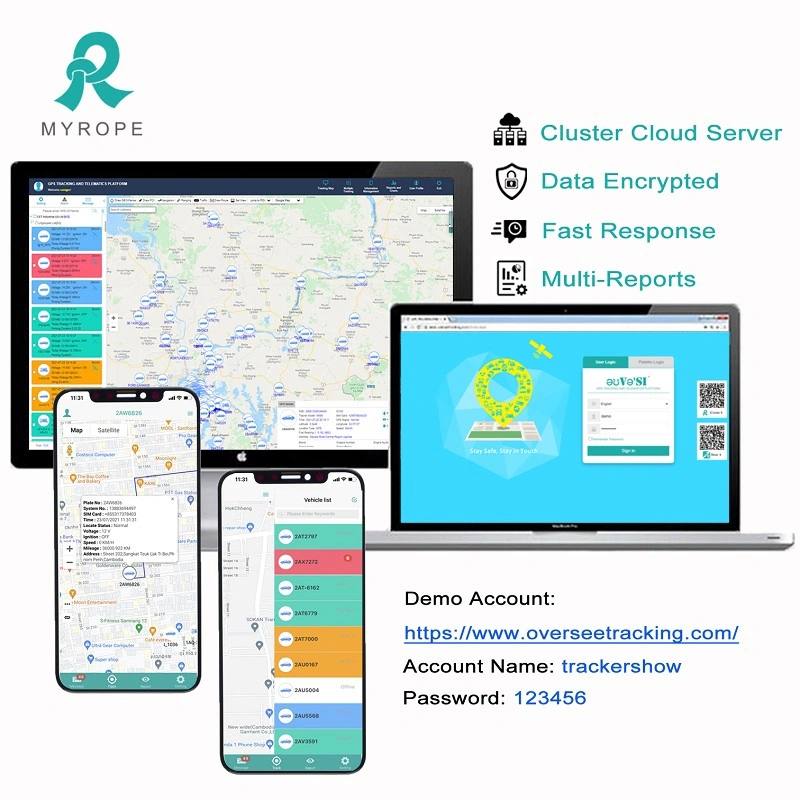

3.Web Platform & Mobile App:
Powerful Gps Tracking Platform Deployed in Cloud Cluster Server
Our company has our own web platform and mobile application. The web platform is hosted by cloud cluster server, which is consist of many servers. The advantages are:
1. The platform can host unlimited quantity of gps tracking device.
2. The server never goes down, because it has backup server.
3. The platform responses fast.
4. The platform supports customized reports and functions.

4. Strict QC:
Our company pays highly attention to QC. Before delivery, we check and test all units one by one to make sure that our clients receive 100% good quality products.
5. Company Profile:
Rope Innovation Co., Ltd. is a direct manufacturer with more than 10 years of experience in the GPS tracking industry. Its
headquarter locates in Shenzhen, China's most innovative city. Rope Innovation is a true innovator of high-quality GPS tracker devices and has satisfied the needs of customers from 120 countries around the world.

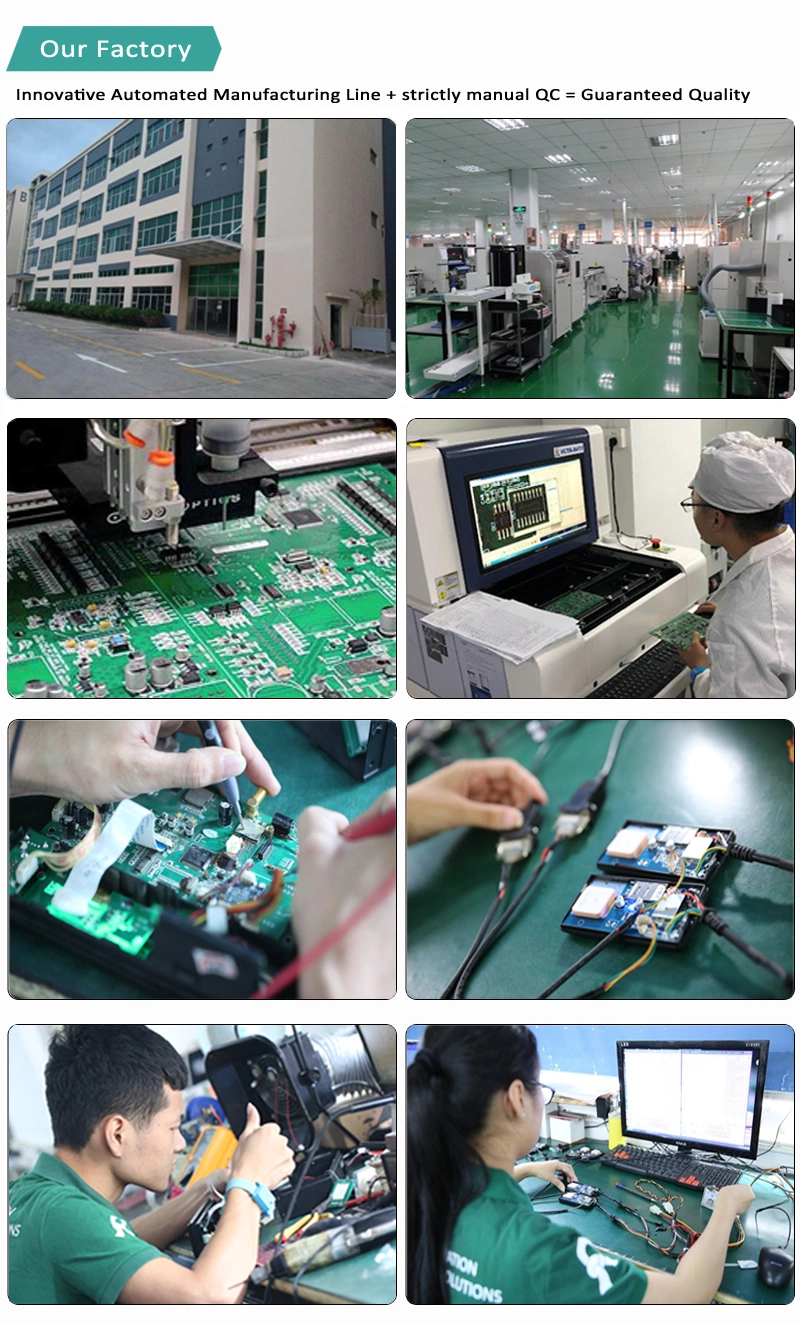

Within 10 years development, we had built up a large manufacturing base including molding, plastics shaping, SMT and full sets of production lines. In order to improve the quality and safety of products and meet the requirements of various customers, we have obtained certificates such as ISO9001-2008, CCC, CE, FCC, RoHS and explosion-proof certificates.

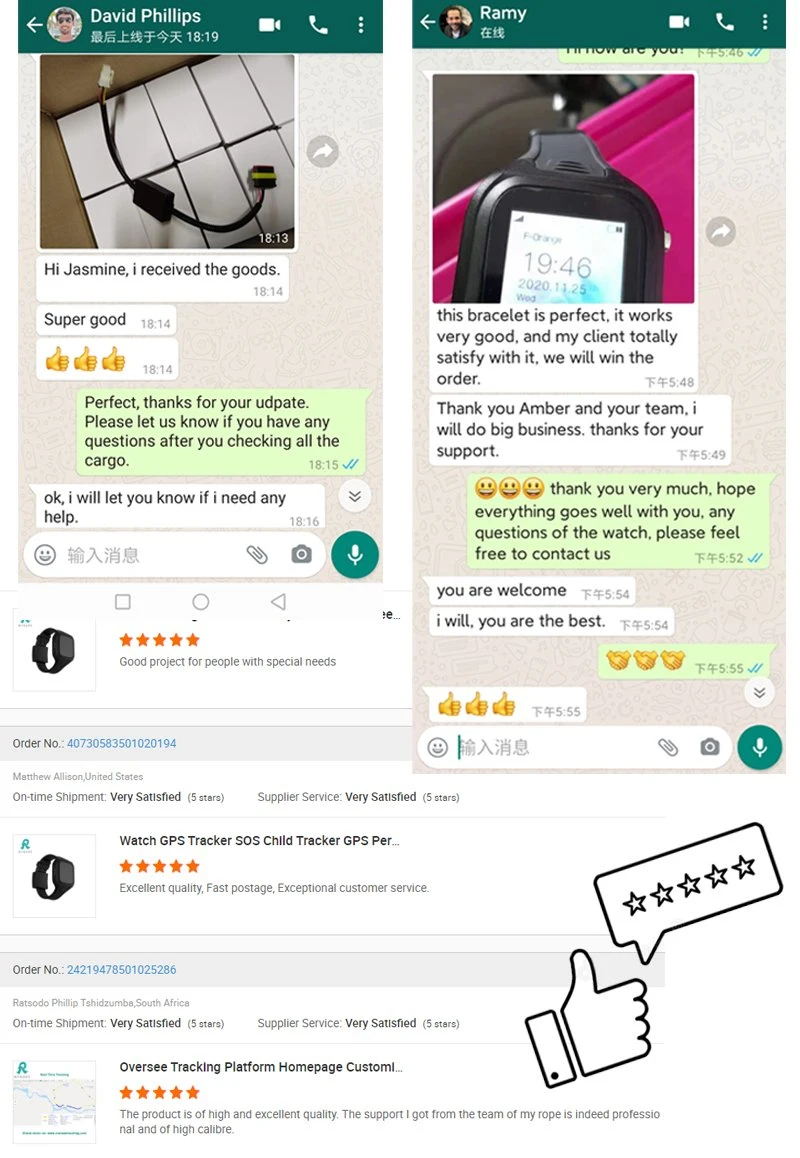

6. Customer Feedback:
