Basic Info.
Model NO.
TX-FPC007
Base Antenna
High Gain Antenna
Sturcture Form
Surface Antenna
Color
White, Black, or by Requests
Cable
1.37
Connector
U.FL
Origin
China
HS Code
8529109090
Production Capacity
1000, 000, 000PCS/Year
Product Description

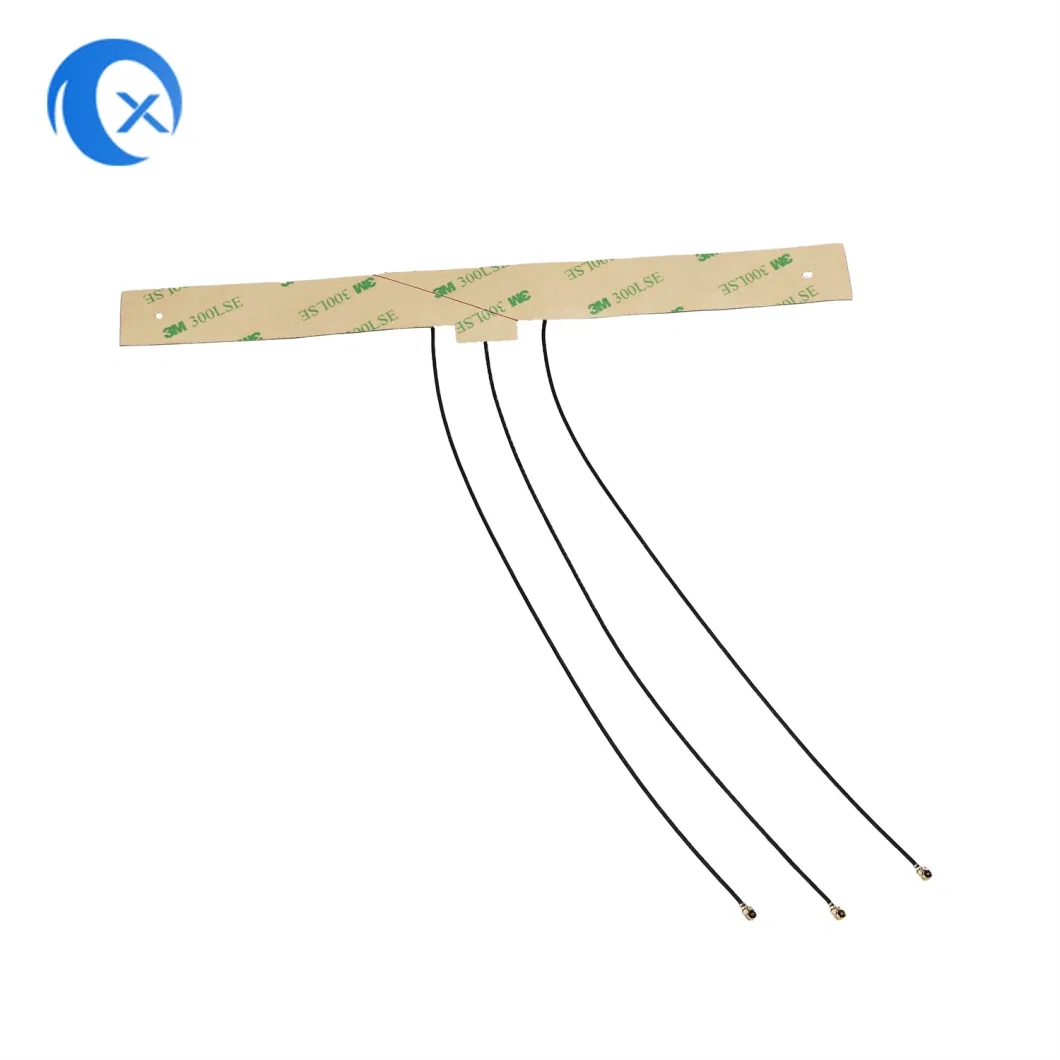

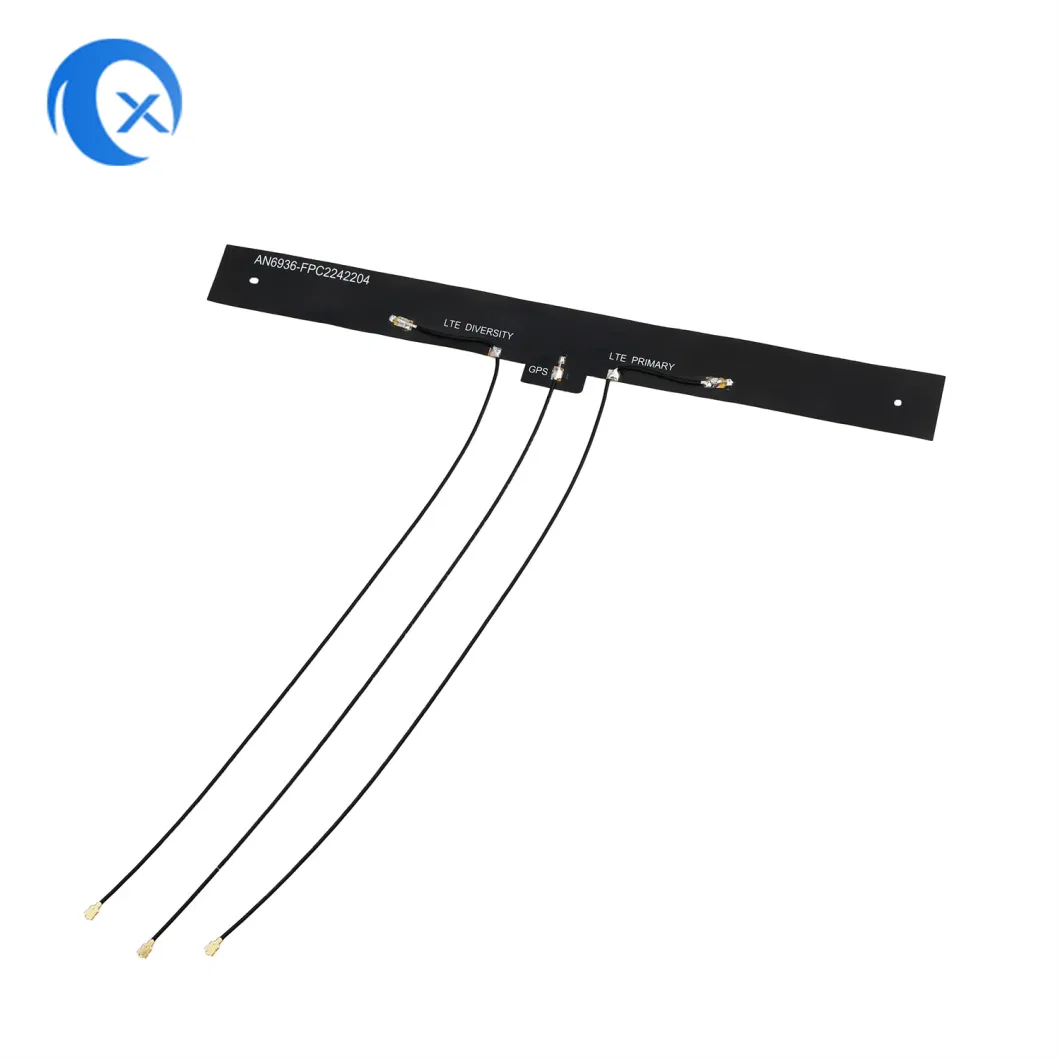

4G LTE Main & Diversity & GPS Triple Port FPC embedded Antenna with u.FL connector
Features:
- 50-ohm impedance

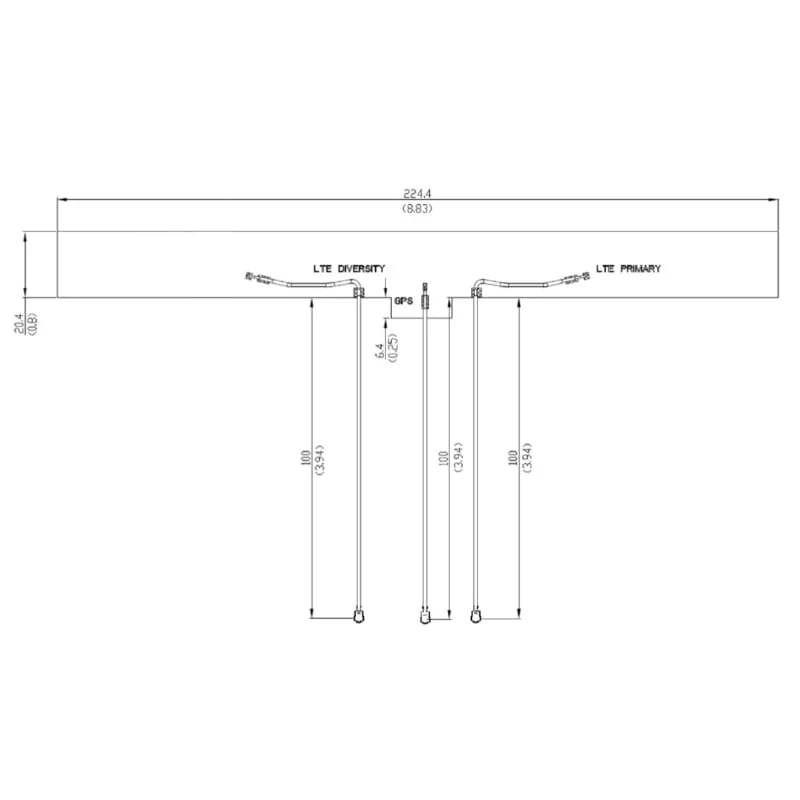

- 100mm cable length(or requested)
- 2G/3G/4G LTE coverage
- Supported frequency range: 698-960/1427.9-1510.9/1559-1610/1695-2200/2300-2700/3400-3600 MHz
- Global LTE bands: B1-B23, B25-B29, B33-B42 ( North America, Europe and Asia included Japan)
- Peak gains are between 3.4dBi-4.2dBi at the LTE bands (1695 -3600 MHz) and 0.8dBi for the GPS (1575.42MHz)
- u.FL connectors
- Adhesive tape
| A. Electrical Characteristics | ||||||||||||
| Frequency | 700-960MHz/1710-2700MHz 1575.42 MHz | |||||||||||
| V.S.W.R | <= 2.0 | |||||||||||
| Antenna Gain | 3.2-4.2 dBi | |||||||||||
| Polarization | Linear | |||||||||||
| Impedance | 50 Ohm | |||||||||||
B. Material & Mechanical Characteristics | ||||||||||||
| Material of Radiator | PCB | |||||||||||
| Material of Plastic | ABS/POM | |||||||||||
| Cable Type | 1.37 | |||||||||||
| Connector Type | u.FL | |||||||||||
C. Environmental | ||||||||||||
| Operation Temperature | - 20 ˚C ~ + 60 ˚C | |||||||||||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |||||||||||
Company introduction
Teng Xiang electronics is an experienced manufacturer of RF products. Especially in the range of Antennas, RF coaxial cable assemblies, RF connectors. We aim to deliver innovative technologies and solutions to meet the rapidly evolving wireless industry catering to 5G, 4G (LTE), 3G, 2G, WiFi, ISM, IoT solutions, Iridium communications, GPS/GLONASS/BeiDou frequencies, and more.
With a focus on telecommunications, Security, Automotive, Medical, IoT, and other markets. We provide a customized solution according to customer's requirements. With our in-house design, R&D, and manufacturing, the team is always on hand to develop a high-quality product for customers.
By providing our clients and customers with high-quality products and exceptional customer service, we focus on all our customers and provide them with the exact same excellent service and considerations.
Why choose us?
1. Hundreds of antenna products for optional, they are used for communication, IoT devices, security camera, smart home/city, automotive, medical, drone, etc.

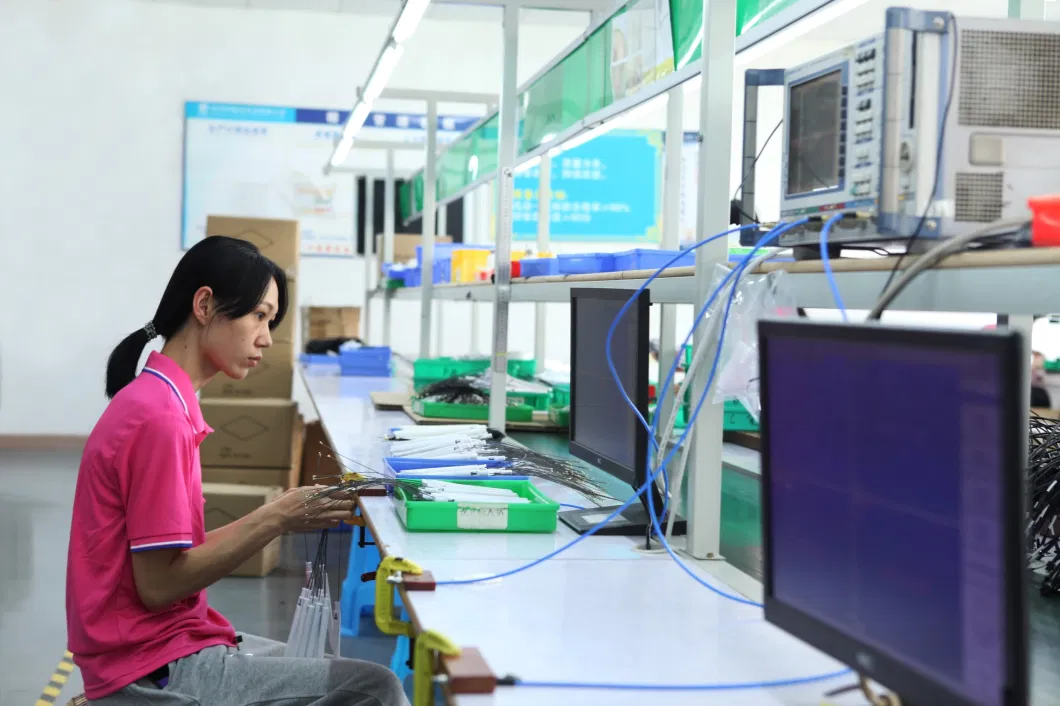

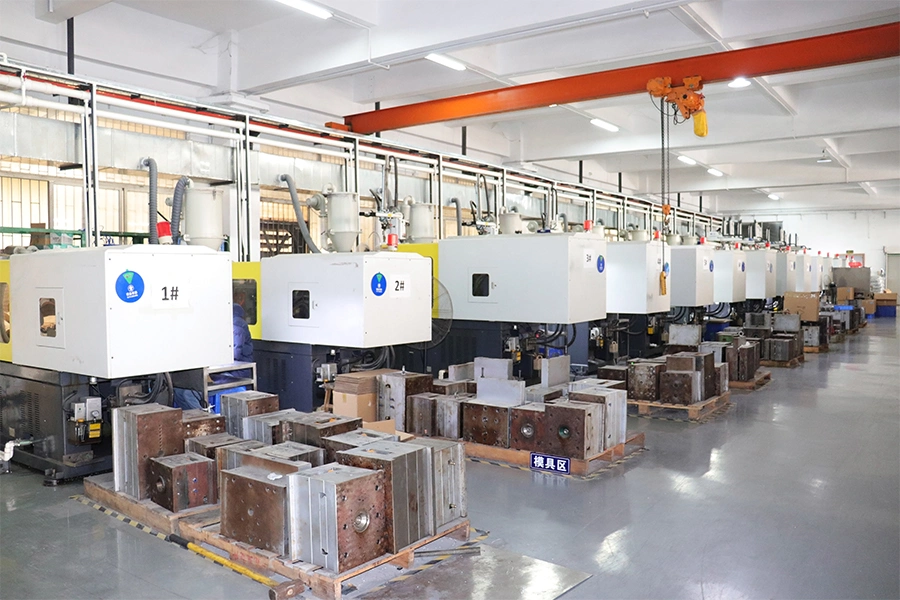

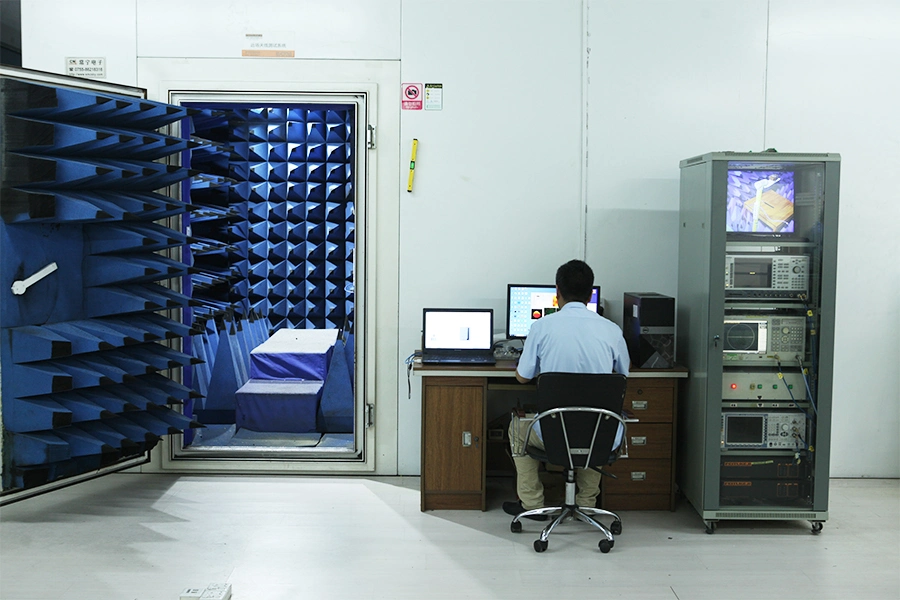

2. We provide a customized solution according to your requirements, for antennas, coaxial cables, and plastic parts. With our in-house design , R&D, testing, and manufacturing .

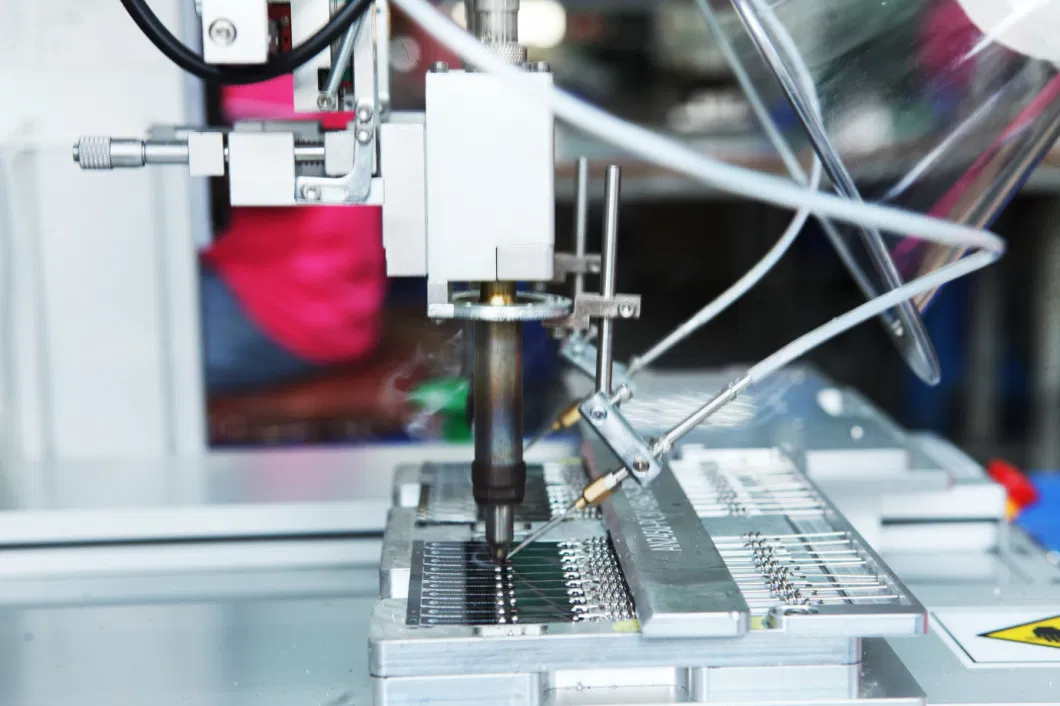

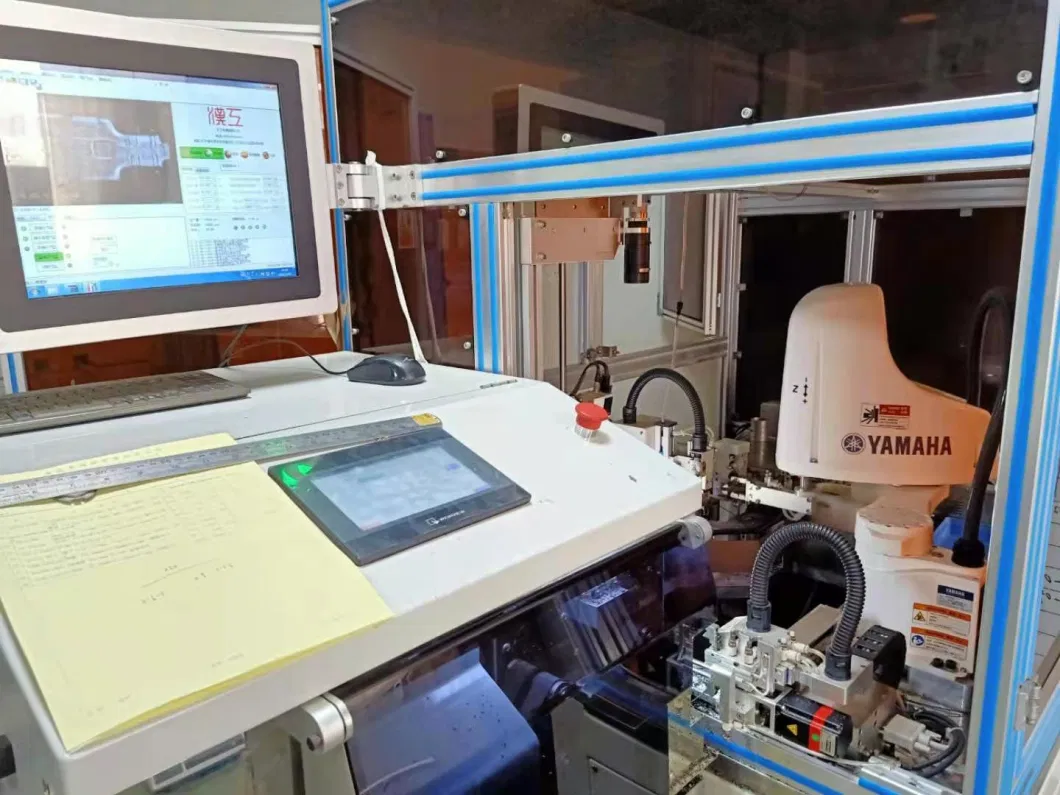

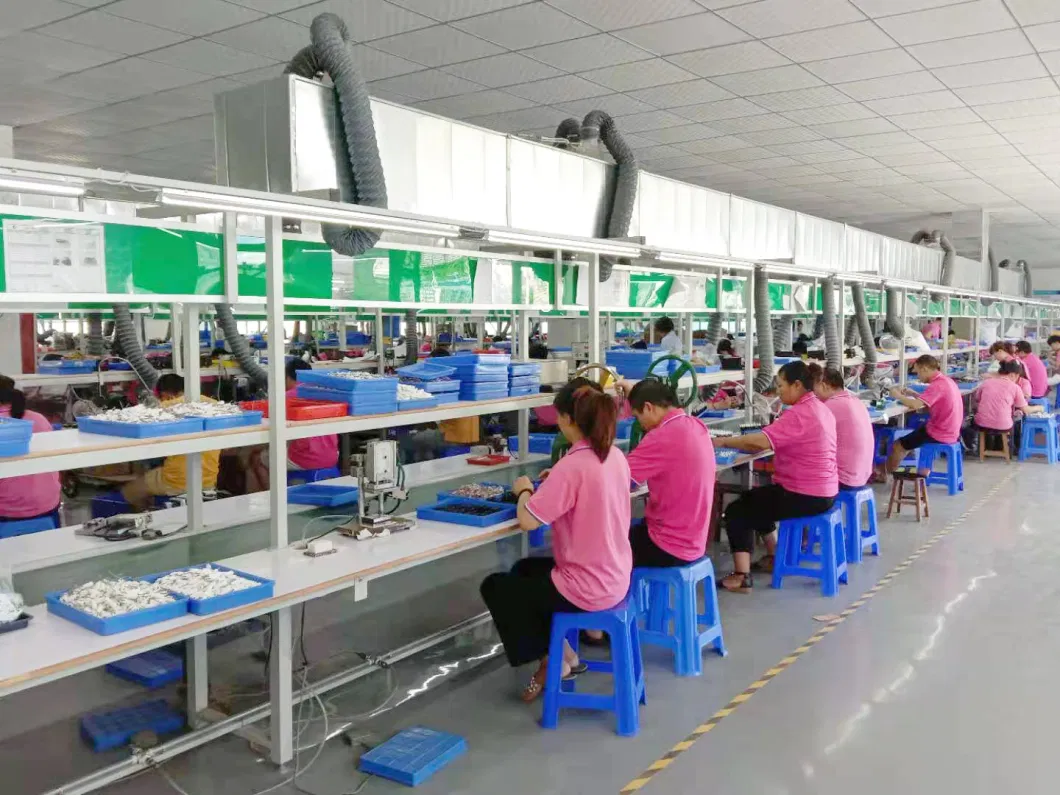

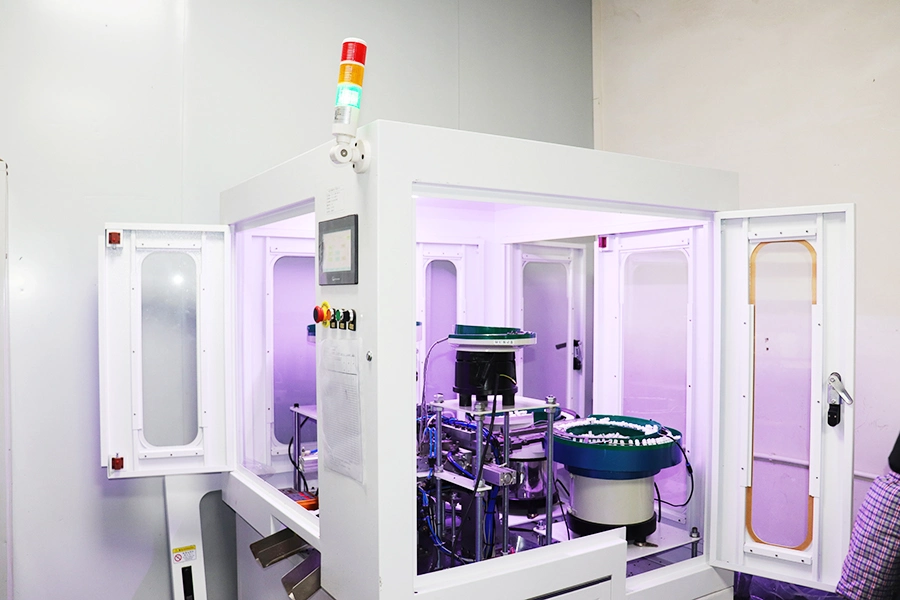

3. More than 200 employees, and auto-assembly lines in the factory, no worries about the production capability.
4. By supplying our clients with high-quality products at competitive prices, we try to be all customer's partners and provide excellent services.
