Product Description

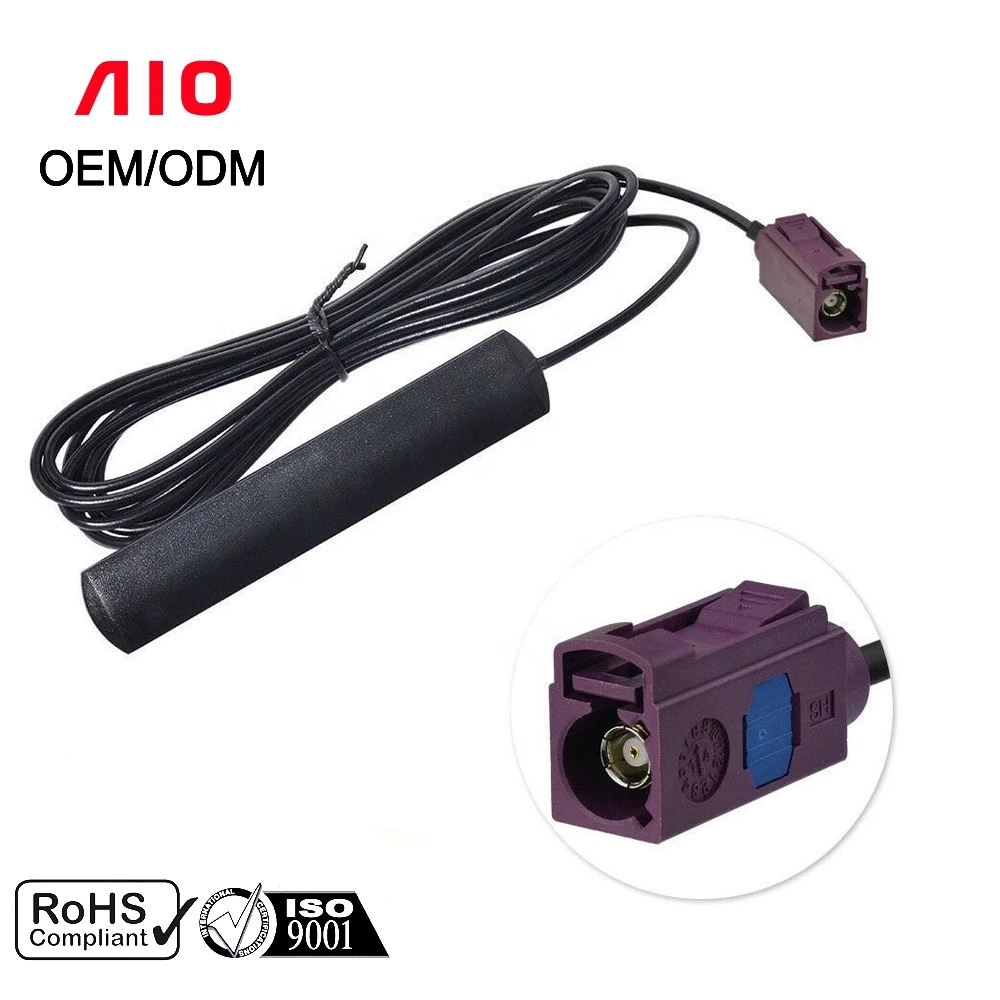

The information about GPS Antenna to FAKRA:
* Specifications:
1. Frequency Range: Typically operates within the GPS frequency band (around 1575.42 MHz).
2. Connector Type: FAKRA connector, a standardized automotive connector for RF applications.
3. Gain: Specifies the antenna's ability to receive signals, measured in decibels (dBi).
4. Polarization: May feature linear or circular polarization for optimized signal reception.
* Applications:
1. Automotive Navigation Systems: Primarily used in vehicles for GPS navigation and location-based services.
2. Telematics and Fleet Management: Supports tracking and monitoring applications in fleet management systems.
3. Asset Tracking: Suitable for tracking the location of assets, equipment, or shipments.
4. Mobile Devices: Integrated into smartphones and other mobile devices to enable GPS functionality.
* Compatibility:
1. FAKRA-Compatible Systems: Designed to be compatible with systems using FAKRA connectors.
2. Vehicle Models: Some antennas may be specified for compatibility with certain car makes and models.
3. GPS Receivers: Compatible with various GPS receivers and navigation devices.
* Installation:
1. Mounting: Depending on the design, antennas may be suitable for roof mounting, magnetic mounting, or other installation methods.
2. Cable Length: The length of the connecting cable can vary; it's essential to consider the installation requirements.
* Environmental Considerations:
1. Weather Resistance: Certain antennas may feature weather-resistant designs for outdoor use.
2. Temperature Range: Built to withstand a range of temperatures for reliable performance in different climates.
* Usage Tips:
1. Optimal Placement: Install in an unobstructed area for optimal GPS signal reception.
2. Secure Connection: Ensure a secure and proper connection to the GPS system to maintain signal integrity.
Elevate Connectivity with Customized Excellence - Your ODM/OEM Partner!
Welcome to AIO KINGSUN, a leading manufacturer of RF Cable Assemblies, where we take pride in delivering exceptional ODM/OEM services tailored to your unique needs. Whether you have a specific design, length, or functionality in mind, we are your trusted partner in turning ideas into reality.
Tailor your connectivity with AIO KINGSUN. Contact us now for unmatched solutions!
| Impedance | 50 Ohm |
| Frequency Range | DC - 4 GHz (DC -12 GHz on Extended Range Designs) |
| Voltage Rating | 500 Volts RMS Max Continuous |
| Dielectric Withstanding Voltage | 1500 VRMS Max |
| VSWR (Return Loss) | |
| DC - 4 GHz | 1.3 (-18 dB) Max |
| Insulation Resistance | 5000 Mohm Min |
| Center Contact Resistance | 1.5 Mohm Min |
| Outer Contact Resistance | 0.2 Mohm Min |
| RF Leakage | 55 dB Max @ 3 GHz |
| Insertion Loss | 0.2 dB Max @ 3 GHz |
| Power Handling | 316 W Max @ 1 GHz @ 25 ºC |
| Impedance | 75 Ohm |
| Frequency Range | DC- 4 GHz (DC - 12 GHz on Extended Range Designs) |
| Voltage Rating | 500 Volts RMS Max Continuous |
| Dielectric Withstanding Voltage | 1500 VRMS Max |
| VSWR (Return Loss) | |
| DC - 4 GHz | 1.5 (-14 dB) Max |
| 12G Products: DC - 6 GHz | 1.22 (-20 dB) Max |
| 12G Products: 6 - 12 GHz | 1.43 (-15 dB) Max |
| Insulation Resistance | 5000 Mohm Min |
| Center Contact Resistance | 1.5 Mohm Min |
| Outer Contact Resistance | 0.2 Mohm Min |
| RF Leakage | 55 dB Max @ 3 GHz |
| Insertion Loss | 0.2 dB Max @ 3 GHz |
| Power Handling | 316 W Max @ 1 GHz @ 25ºC |
| Temperature Range | −65°C to +165°C |
| Thermal Shock | MIL-STD-202, Method 107 (Test Condition G), except high temp test @ +200ºC |
| Corrosion | MIL-STD-202, Method 101 ( Test Condition B) - 5% Salt Solution |
| Vibration | MIL-STD-202, Method 204 (Test Condition D) |
| Mechanical Shock | MIL-STD-202, Method 213 (Test Condition G) - No Discontinutiy Permitted |
| Moisture Resistance | MIL-STD-202, Method 106 |
| Altitude | MIL-STD-202, Method 105 (Test Condition C) |
| Mating Cycles | 500 Min |
| Coupling Mechanism | Bayonet |
| Interface Specification | MIL-STD-348 |
We provide the best selection of Car Audio Accessories in the online market today! AIO KINGSUN only showcase Quality and Easy Installation Procedure that makes good sense at the most reasonable rates online. All you need for your car's improved performance, better listening pleasure, and money saving options are right here on this page. We feature Installation Adapters, Harnesses, and Wiring. Pick one that's best suited for your car model!
Q1: Are you a manufacturer?
A1: Yes, we are a manufacturer located in Changzhou city of China. We can provide OEM/OOM services for customes around the world.
Q2: Can I get a free sample?
A2: Yes,we can provide the existing items'samples without charge but freight collected. If there is any special samples requirement, please contact us for more details.
Q3: How could I pay?
A3: We prefer T/T. If you prefer other payment terms,please contact us freely
Q4: Is the quality of your product guaranteed?
A4: Yes, our workshop are equipped with Brand-new and Advanced Machines and Test Equipment. Besides, our worker are Professional Technicians for connector&cable production. Our production process and quality are in strictly accordance with the international standards and customers' requirements. We are warmly welcome your inspection team to examine.
Q5: What is the delivery lead time?
A5: It depends on the quantity of the purchasing order. The mass production lead time is about 5-10 days after receipt of the deposit.
