Basic Info.
Model NO.
GL-DY0571
Material
ABS
Directionality
Rhcp+Linear
VSWR
1.5~2
Nature of Operation
Receiving Antenna
Sturcture Form
Wire Antenna
Dimensionality
One-Dimensional Antenna
PCS/CTN
200
Weight/CTN
12.5
Connector
SMA
Transport Package
48*30*28cm
Specification
59.2*52.5*15.3mm
Trademark
LEHENG
Origin
China
HS Code
8529109090
Production Capacity
3000PCS/Day
Packaging & Delivery
Package Size
53.00cm * 26.00cm * 29.00cm
Package Gross Weight
24.000kg
Product Description

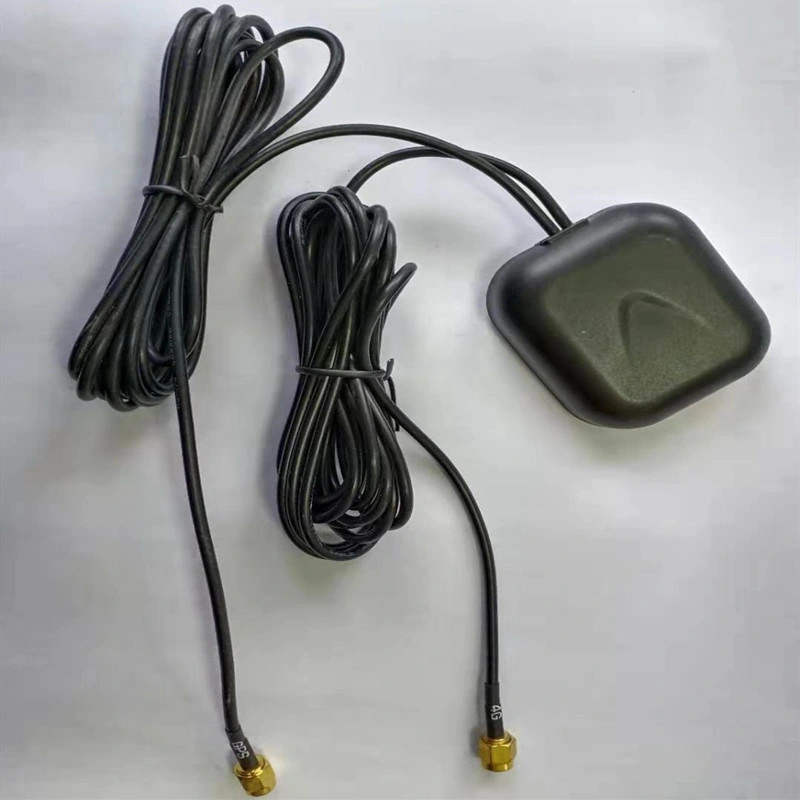

| GPS+4G Antenna | |
P/N | GL-DY0571 | |
Electrical Index | ||
Frequency-MHz | 1575.42±1/700-2700 | |
Band Width | CF±5MHz | |
Gain-dBi | 2.0(Zenith)/2 | |
VSWR | <1.5 | |
Nominal Impedance-Ω | 50 | |
Polarization | RHCP,Liner | |
Axial Ratio | 3dB(max) | |
LNA Gain | 28±2dB | |
Noise Figure | <1.5 | |
V.S.W.R | <2.0 | |
Supply Voltage | 2.2-5V DC | |
Current Consumption | 5-15mA | |
Mechanical Index | ||
Cable Length | 5,RG174 for each part | |
Connector | SMA male | |
Antenna Dimension-mm | 59.2*52.5*15 | |
Installation Way | Magnet | |
Ingress Protection | IP65~IP67(exclude cable outlet) | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant | |
Temperature-ºC | -40~+85 | |
Humidity-% | 5~95 | |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
