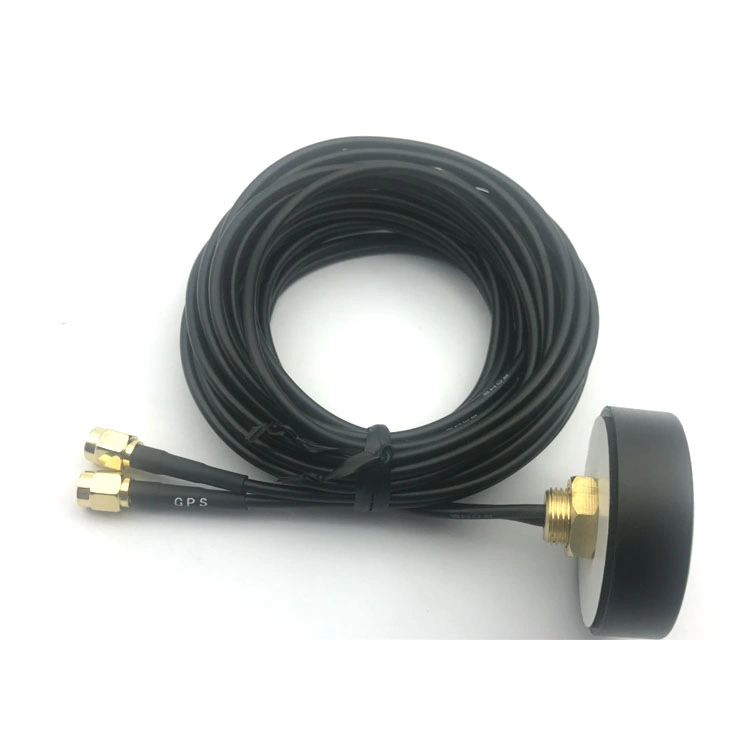

Good performance GPS GSM 4G Glonass Antenna Combo Antenna

Looking for a high performing GPS GSM 4G Glonass Antenna Combo? Our factory offers top-quality antennas with reliable performance.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
GKZS-GPS&GSMY-SMAJZG3-T
Base Antenna
Directional Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Surface Antenna
Dimensionality
Two-Dimensional Antenna
Net Weight
98.4G
Sample Time
3-7 Days
Lead Time
15 to 30 Days
Customized
Yes,Welcome
Working Frequency1
1575.42±5MHz
Working Frequency2
824-960MHz 1710-1990MHz
Connector
SMA Male

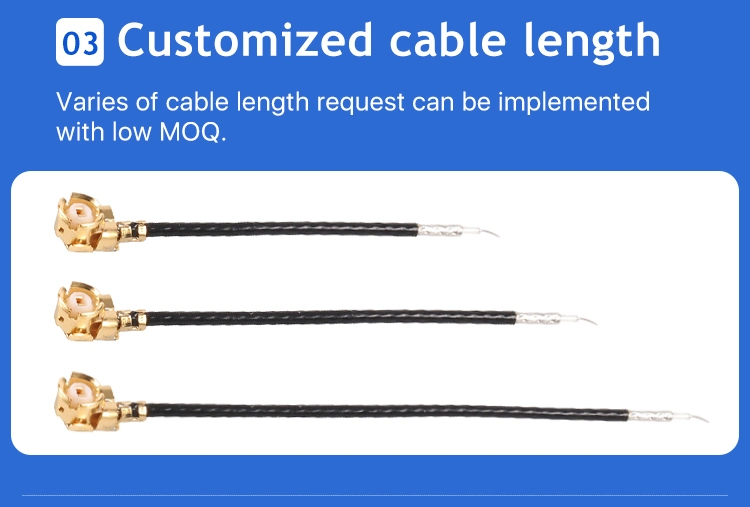

Cable Length
3 Meters
Transport Package
Natural Packing
Specification
46x16mm
Trademark
Gaoke
Origin
Guangzhou, China
HS Code
8529101000
Production Capacity
5000PCS/Day

Product Description


Good performance GPS GSM 4G Glonass Antenna Combo Antenna

Design Specifications Typical Units
Antenna form External Antenna
working Frequency 1575.42±5MHz 824-960MHz 1710-1990MHz MHz
Gain ≤2.5dBi ≤2.0dBi dBi
Antenna efficiency 50% 30%
VSWR ≤2.0  ≤2.0
Ploriaztion RC Pol L Pol
Axial Ratio ≤3.0 /
Radiation pattern Omni Omni
impedance 50Ω 50Ω Ω
Power handling 33dbm 33dbm dbm
Interface SMA Male/RG174 Cable 3M SMA Male/RG174 Cable 3M
Overal dimensions Ø46x16mm mm
Weight 98.4g g
Operatin Temp -40ºC~85ºC ºC
Storing Temp 15ºC~30ºC ºC

Good performance GPS GSM 4G Glonass Antenna Combo Antenna Good performance GPS GSM 4G Glonass Antenna Combo Antenna Good performance GPS GSM 4G Glonass Antenna Combo Antenna Good performance GPS GSM 4G Glonass Antenna Combo Antenna Good performance GPS GSM 4G Glonass Antenna Combo Antenna Good performance GPS GSM 4G Glonass Antenna Combo Antenna Good performance GPS GSM 4G Glonass Antenna Combo Antenna Good performance GPS GSM 4G Glonass Antenna Combo Antenna Good performance GPS GSM 4G Glonass Antenna Combo Antenna Good performance GPS GSM 4G Glonass Antenna Combo Antenna Good performance GPS GSM 4G Glonass Antenna Combo Antenna Good performance GPS GSM 4G Glonass Antenna Combo Antenna
Good performance GPS GSM 4G Glonass Antenna Combo Antenna Good performance GPS GSM 4G Glonass Antenna Combo Antenna Good performance GPS GSM 4G Glonass Antenna Combo Antenna Good performance GPS GSM 4G Glonass Antenna Combo Antenna

Good performance GPS GSM 4G Glonass Antenna Combo Antenna

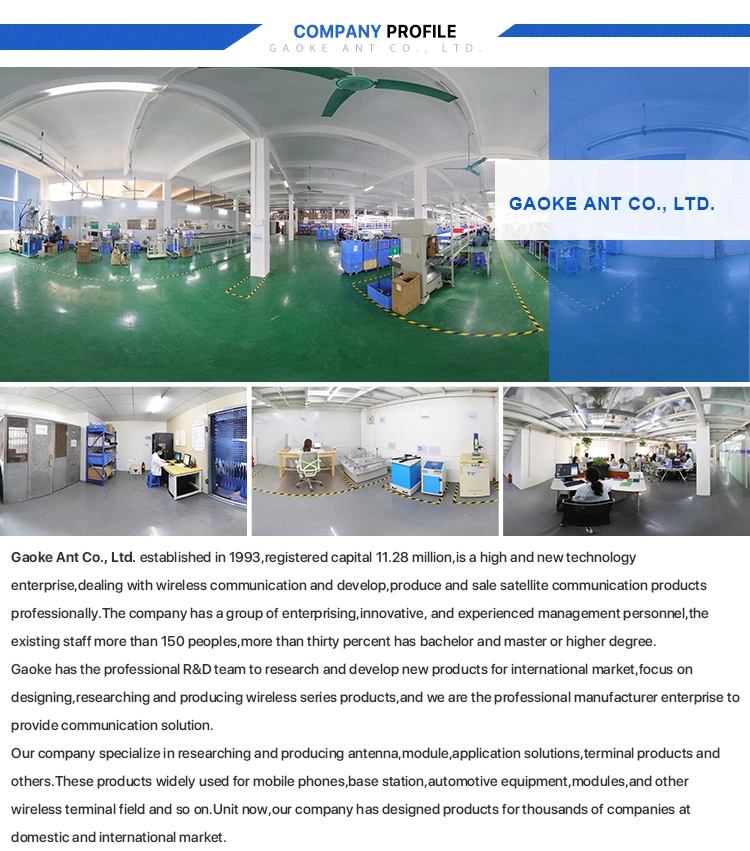

1.Q: Are you a manufacturer?
A: Yes, our company has 30 years of professional experience dealing with wireless communication and develop ,produce and sale satellite communication products professionally

2.Q: How do I get samples?
A: Please send us the item link you need and your shipping address,we will check the shipping fee and confirm with you.After we receive the fee,we will send in 3-5 days by express.Some samples will charge sample fee, please confirm with us at first.

3.Q: How to make an OEM order?
A: 1. After communication, the buyer and the seller reach an agreement on product details, packaging, purchase quantity, unit price, delivery terms and payment terms.
2. The buyer sends a formal PO (purchase order) or the seller sends a formal PI (performance invoice) with detailed terms and conditions.

4.Q: What are your payment terms?
A: For samples: small batch orders or urgent orders, you can choose PayPal,or bank account 100% payment before shipment; for large orders: 30%/50% of T/T as deposit, The balance before shipment.


5.Q: How long is your delivery time?
A: For example: usually 7-15 working days after receiving your 100% payment.
    For bulk orders: 15-35 working days after receiving the deposit.

6.Q: How about the warranty?
A: We can provide 1 year warranty.

7.Q: How do you solve after-sales service problems?
A: After receiving the goods, if you have any dissatisfaction or other problems, please contact us as soon as possible, we will give you a quick and reasonable solution, thank you very much!

8.Q: If we want a special appearance and function increase, can we get support?
A: No problem! Our R&D team will support you to develop a new and best product for you!
