Product Description
| Item | Specifications | ||
| GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±1MHz |
| Band Width | CF±5 MHz | ||
| Polarization | RHCP | ||
| Gain | 2dBic(Zenith) | ||
| V.S.W.R | <1.5 | ||
| Impendance | 50Ω | ||
| Axial Ratio | 3dB(max) | ||
| LNA | Gain | 28±2dB | |
| Noise Figure | <1.5 | ||
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | ||
| V.S.W.R | <2.0 | ||
| Supply Voltage | 2.2~5V DC | ||
| Current Consumption | 5~15mA | ||
| GSM Antenna | Frequency Range | 824~960MHz/1710~2170MHz | |
| V.S.W.R | <2.0(min) | ||
| Polarization | Linear | ||
| Gain | 2.0dBi | ||
| Impendance | 50Ω | ||
| WIFI Antenna | Frequency Range | 2400~2483.5MHz | |
| Band Width | 83.5MHz | ||
| Polarization | Linear | ||
| Gain | 3dBi | ||
| V.S.W.R | <2.0(min) | ||
| Impendance | 50Ω | ||
| Mechanical | Cable | RG174 | |
| Connector | SMA/MCX/FAKRA or others | ||
| Material | ABS | ||
| Mounting Method | Magnet/Adhesive | ||
Q: Can I receive a sample?
A: Certainly! We are pleased to offer you a sample.
Q: Do you have GNSS Antenna fully assembled and in stock?
A: No, all GNSS antennas are assembled specifically for your order, including samples.
Q: What is the estimated delivery time?
A: For samples, the delivery time is approximately 3-5 working days. For quantities below 5K, it will take around 10-15 working days.
Q: Can I use my own logo or design on the products?
A: Absolutely! We provide customization options for logos and designs on mass production.
Q: What are the available payment terms?
A: We accept payment through T/T, Paypal, Western Union, and more.
Q: Am I allowed to visit your company?
A: Of course! You are welcome to visit us anytime.
Q: How long is the warranty period?
A: Our antennas come with a one-year warranty, while assembly cables and connectors have a warranty period of half a year.
Product Description:

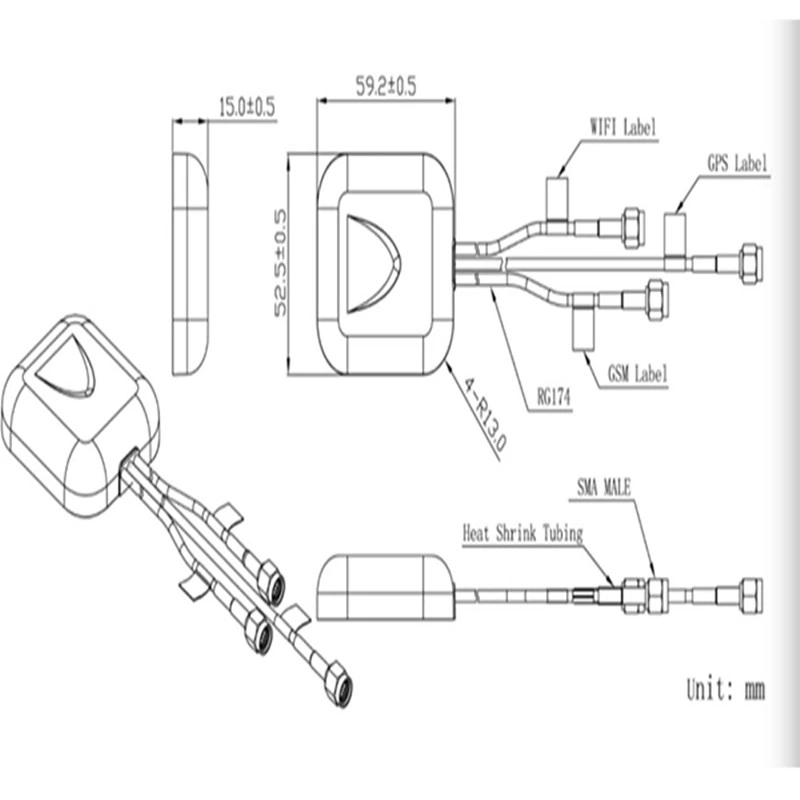

RG174 Cable GPS+GSM+WiFi Combined Antenna Best Design for Sale
Introducing our top-of-the-line RG174 Cable GPS+GSM+WiFi Combined Antenna, designed to provide exceptional performance and reliability. This antenna is perfect for various communication needs, offering a combination of GPS, GSM, and WiFi capabilities.
With its sleek black color and customizable cable and logo options, this antenna is not only functional but also visually appealing. Its versatile design makes it suitable for a wide range of applications, ensuring seamless communication in any setting.
Key Features:
- Combo Antenna/Combined Antenna/Combination Antenna
- GPS+GSM+WiFi Antenna
- Combo Antenna with SMA Connector
- TV Antenna/WiFi Antenna/GPS Antenna/GSM Antenna
- Cable Can Be Customized
- Logo Can Be Customized
Whether you need reliable GPS tracking, efficient GSM communication, or seamless WiFi connectivity, our RG174 Cable GPS+GSM+WiFi Combined Antenna is the perfect solution. Its high-quality construction and advanced technology ensure optimal performance and durability.
Don't miss out on this exceptional antenna. Order now and experience the ultimate in communication reliability!
