Basic Info.
Model NO.
SWT-JRT-7B3
Model No.
Swt-Jrt-7b3
Received Signal
Bd2-B3, B1/GPS/Glonass
Number of Channels
7 Channel B3, 1 Channel B1/GPS/Glonass
Channel Gain
40±2 dB
Output Signal Power
-65±5dBm
Power Supply
DC28 V
Power Consumption
25W
Physical Interface
RF Connector: TNC-Kfd6
Weight
2.6±0.05 Kg
Size
External Dimension: 230*50
Transport Package
Standard Packing
Trademark
OEM
Origin
Nanjing, China
Production Capacity
30000pices/Year
Product Description

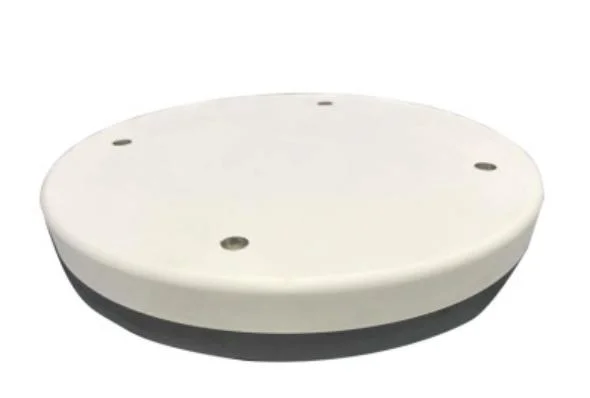

Model SWT-JRT-7B3 B3-Anti-interference antenna
Function
1. Channel 1 and channel 7 receive BD2-B3 satellite navigation signals, and realize the anti-jamming function
of the frequency point signals;
2. Receive and amplify B1/GPS/GLONASS navigation signals with low noise, and synthesize shunt output with
radio frequency signals of BD2-B3 after anti-interference;
3. Straight-through, anti-interference function switch;
4, With self-detection function;
5. Online software upgrade.
Application
Applicable to airborne, vehicle-mounted, shipborne, ground systems and other application platforms.
Main technical parameters
Application
Applicable to airborne, vehicle-mounted, shipborne, ground systems and other application platforms.
Main technical parameters
| Received signal | BD2-B3, B1/GPS/GLONASS | Size (mm) | External dimension: 230*50 |
| Number of channels | 7 channel B3, 1 channel B1/GPS/GLONASS | Installation size : | |
| Anti-interference performance | Single broadband interference ≥95dB; Broadband interference ≥80dB | Physical interface | Low frequency connector: JY27496E |
| Rf connector: N | |||
| Channel gain (dB) | 37±2 | Weight (kg) | 2.6±0.05 |
| Output signal power (dBm) | -65±5 | Operating temperature (ºC) | - 40 ~ 85 |
| Power supply (V) | DC28 | Storage temperature (ºC) | -55 ~ 85 |
| Power consumption (W) | 25 | Vibration, shock, electromagnetic compatibility, etc | Meet the relevant requirements of GJB |
Nanjing Shinewave Technology Co., Ltd. is a company specialized in the research and development, production and sales of RF microwave passive components and subsystems. The company's product field covers a variety of microwave communication devices, including microwave filters, duplexers, amplifiers, frequency sources, and related subsystems, which are widely used in mobile communications and other fields.
In terms of microwave filters, the company has comprehensive products and strong design capabilities. The main products include cavity band-stop filter, waveguide filter, electrically tunable filter, multi-frequency combiner, multi-frequency combining platform POI, dielectric cavity dual-mode filter, LC filter, miniaturized comb filter, interdigital filter, etc.
In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.
Q&A:
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and offer help to your problems.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4.Shipment Date
| Sample | 20 business days |
| ≤50 pcs | 60 business days |
| >50 pcs | 90 business days |
| >200 pcs | Negotiate |
Q5: Delivery Date of the sample by DHL/FedEx
| USA/Canada/Europe/Asia | 3-5 days |
| Middle East/Latin American | 5-7 days |
| African | 3-7 days |
