Basic Info.
Model NO.
DL-GPS-IN-006
Material
Cu
Directionality
Directional Antenna
VSWR
<=1.5
Base Antenna
Directional Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Wire Antenna
Dimensionality
Two-Dimensional Antenna
Connector
Ipex or Other
Lead Time
3-7 Days
Sample Time
1-3 Days
Current Consumption
10mA
Cable
1.13

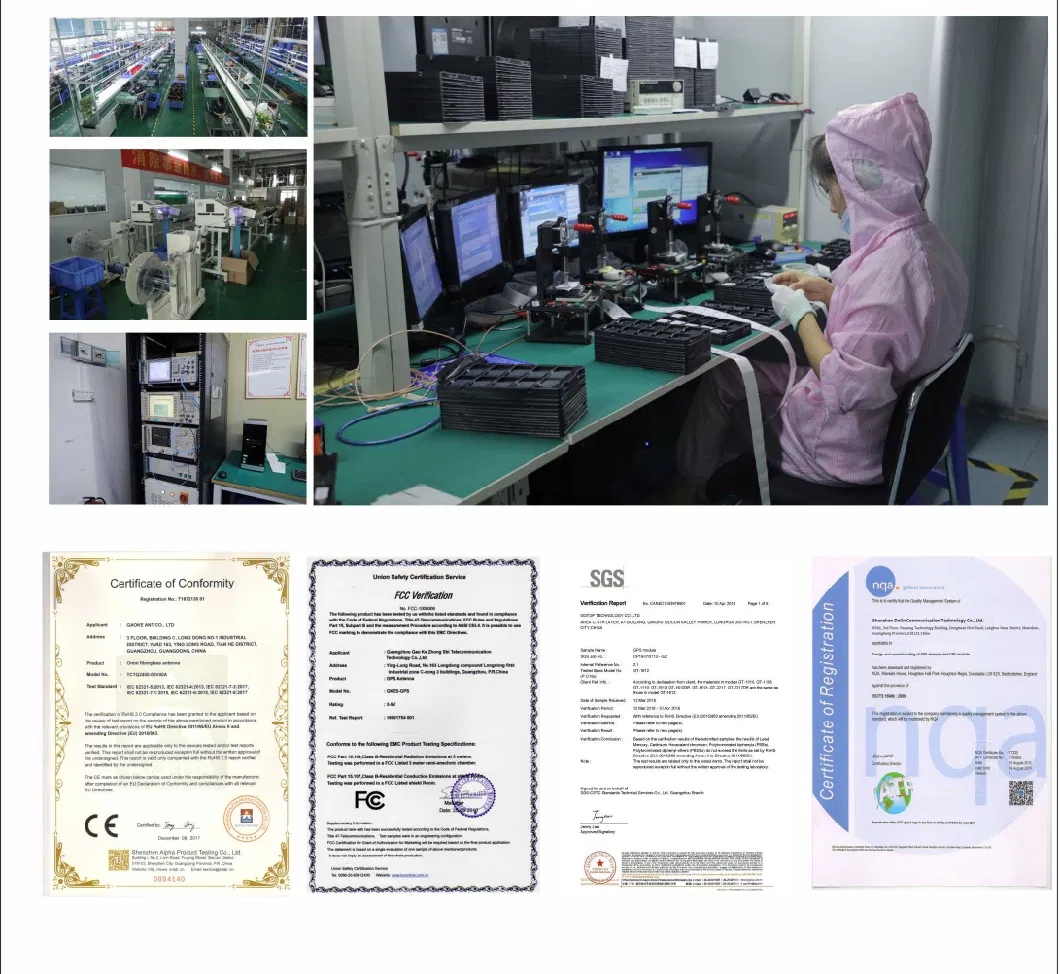

Certification
Ce, RoHS, ISO9001: 2008, FCC, Ts16949
Mounting
Sticking
Transport Package
Polybag, Paper Carton
Specification
6x20/10x10/12x12/15x15(mm)
Origin
China
HS Code
85291010
Production Capacity
35000/Day
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 10.00cm
Package Gross Weight
0.500kg
Product Description
GPS Internal Patch Antenna for Navigation GPS Antenna
Mechanical Specifications
Conditions
Antenna Characteristics
Amplifier Characteristics
Mechanical Specifications
| Size (mm) | 18X18X4mm | Mounting | Soldering |
| Weight(g) | <10 | Connector | IPEX |
| Color | Yellow | Cable | RF1.13 |
Conditions
| Working Conditions | Temperature:-40ºC~+85ºC |
| Humidity: 95%~100% | |
| Storage Conditions | Temperature:-40ºC~+85ºC |
| Humidity: 95%~100% |
Antenna Characteristics
| No. | Item | Specifications |
| 1 | Center Frequency(MHz) | 1575.42±2 MHz |
| 2 | Band Width(MHz) | 10MHz |
| 3 | Gain (10 °elevation) | -5dB |
| 4 | Gain (maximum direction) | 0db |
| 5 | Polarization | RHCP |
| 6 | Impedance(Ω) | 50 |
Amplifier Characteristics
| No. | Item | Specifications |
| 1 | Center Frequency(MHz) | 1575.42±2 MHz |
| 2 | Gain | 20±2dB |
| 3 | V.S.W.R. | <2.0 |
| 4 | Noise Figure | <2.0 |
| 5 | Working Voltage | 2.7~3.6V |
