- Overview
- SPECIFICATIONS
Basic Info.
Model NO.
JCB010L
Material
Al
Directionality
Omnidirectional Antenna
VSWR
<1.5
Base Antenna
High Gain Antenna
Nature of Operation
Transmitting Antenna
Sturcture Form
Surface Antenna
Dimensionality
Two-Dimensional Antenna
Cable
Rg174 or Others
Connector
SMA or Others
Radomematerial
ABS
Ngress Protection
IP67
Environmentally Friendly
Rohscompliant
Transport Package
100PCS in One Carton
Specification
8*8*3cm
Trademark
jinchang
Origin
China
HS Code
85291010
Production Capacity
50000PCS / Per Day
Packaging & Delivery
Package Size
8.00cm * 8.00cm * 3.00cm
Package Gross Weight
0.250kg
Product Description

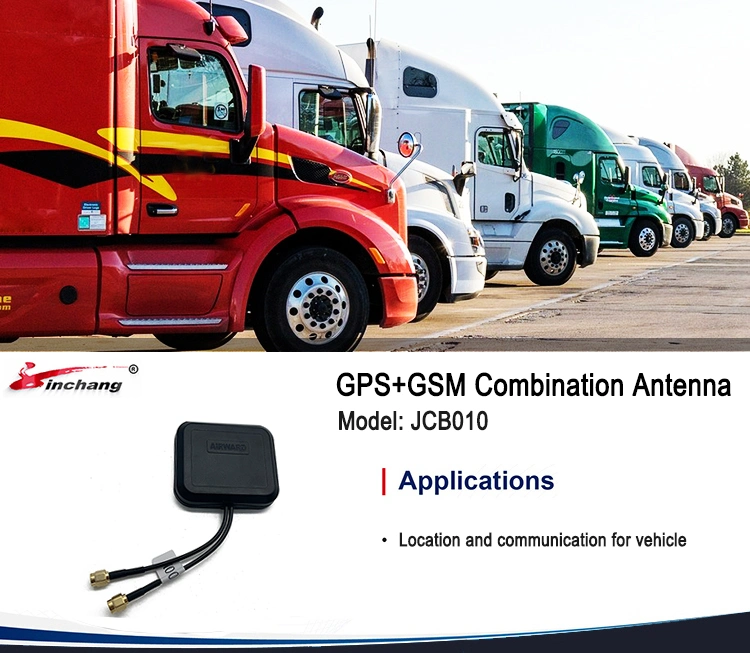

GPS LTE communication combined antenna
Q: Are you a manufacturer or a trading company?
A: We have been professional antenna manufacturer for 20 years.
Q: Can I get one sample?
A: Yes, sample is for free.
Q: Have gps gsm combo antenna 100% assembles well in stock?
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 1-5 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A: T/T, Paypal, western union etc.
Q: Where is your factory located? Can I visit your factory?
A: Factory address: #398 Zhenye Road, Jiaxing Economic Development Zone, Nanhu District, China. Just call us, we will pick you up
with no delay.
Q: How long of the warraty?
A: One year and can repair for the whole life.
| Item | Specifications | ||
| GPS Antenna | Dielectric | Center Frequency | 1575.42±1MHz |
| Band Width | CF±5MHz | ||
| Antenna | Polarization | RHCP | |
| Gain | 2dBic(Zenith) | ||
| V.S.W.R | <1.5 | ||
| Impendance | 50Ω | ||
| Axial Ratio | 3dB(max) | ||
| LNA | Gain | 28±2dB | |
| Noise Figure | <1.5 | ||
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | ||
| V.S.W.R | <2.0 | ||
| Supply Voltage | 2.2~5V DC | ||
| Current Consumption | 5~15mA | ||
| LTE Antenna | Frequency Range | 698~960MHz/1710~2690MHz | |
| V.S.W.R(min) | <3.0 | ||
| Polarization | Linear | ||
| Gain | 2dBi | ||
| Impendance | 50Ω | ||
| Mechanical | Cable | RG174 | |
| Connector | SMA/MCX/FAKRA or others | ||
| Radome Material | ABS | ||
| Mounting Method | Magnet/Adhesive | ||
| Environmental | Operating Temperature | -40ºC~+85ºC | |
| Relative Humidity | Up to 95% | ||
| Ingress Protection | IP66 | ||
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
| Environmentally Friendly | ROHS Compliant | ||
