Basic Info.
Model NO.
GL-DY046L
Material
ABS
Directionality
Rhcp+Liner
VSWR
<1.5
Base Antenna
High Gain Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Wire Antenna
Dimensionality
One-Dimensional Antenna
PCS/CTN
100
Weight/CTN
12.5
Connector
SMA Male
Transport Package
48*30*28cm
Specification
76.9*14.8mm
Trademark
LEHENG
Origin
China
HS Code
8529109090
Production Capacity
3000PCS/Day
Packaging & Delivery
Package Size
70.00cm * 32.00cm * 15.50cm
Package Gross Weight
16.600kg

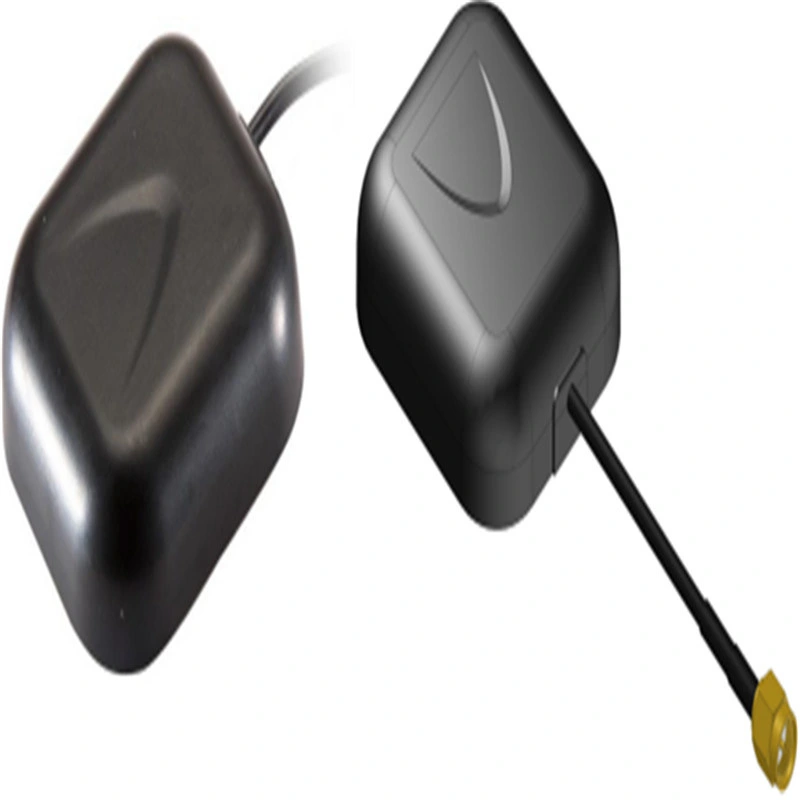

Product Description
| Item | Specifications | ||
| GPSGlonass Antenna | Dielectric Antenna | Frequency Range | 1575.42-1602 |
| Polarization | RHCP | ||
| Gain | 2dBic(Zenith) | ||
| V.S.W.R | <1.5 | ||
| Impedance | 50Ω | ||
| LNA | Gain | 28±2dB | |
| Noise Figure | <2dB | ||
| V.S.W.R | <2.0 | ||
| Supply Voltage | 2.2~5V DC | ||
| Current Consumption | <20mA | ||
| LTE Antenna | Frequency Range | 698~960MHz/1710~2690MHz | |
| V.S.W.R | <3.0 | ||
| Polarization | Linear | ||
| Gain | 2.5dBi | ||
| Impedance | 50Ω | ||
| Additional Resistor | 10KΩ | ||
| Mechanical | Cable | RG174,2.5m | |
| Connector | Farka C and Fakra D | ||
| Material | ABS | ||
| Mounting Method | Screw | ||
| Environmental | Operating Temperature | -40ºC~+85ºC | |
| Relative Humidity | Up to 95% | ||
| Ingress Protection | IP67 (exclude cable outlet) | ||
| Environmentally Friendly | ROHS Compliant | ||
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
