Basic Info.
Model NO.
GKZS-GPS&GLONASS-N15156SMA-100
Base Antenna
Directional Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Surface Antenna
Dimensionality
Two-Dimensional Antenna
Antenna Size
15X15X6.7mm
Package
Plastic Tray , Paper Cartoon
Connector
SMA Head
Impedance
50 Ω
Cable Length
100mm
Central Frequency
1575&1600MHz
Transport Package
Plastic Tray, Paper Cartoon
Specification
Antenna Size: 15X15X6.7mm
Origin
China
Production Capacity
100000PCS/Day
Product Description
1. Product Description

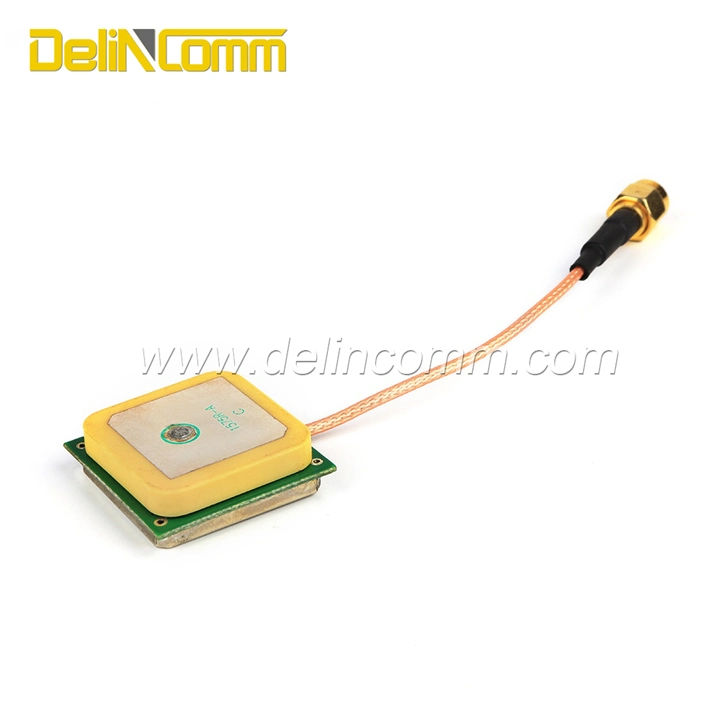

The GPS&GLONASS internal antenna consists of ceramic antenna, low noise amplifier and feed cable. It has the following characteristics:
- Low voltage: 2.7~3.3V
- Low noise factor: less than 2
- Gain: 21 + 2dB
| Size | 15×15×6.7mm |
| Connector | SMA Gold Plated straight male head |
| Cable | 1.13 |
| Weight | <40g |
| Working Temperature | -40ºC~85ºC |
| Working Humidity | 10%~95% |
| Storage Temperature | -45ºC~85ºC |
| Storage Humidity | 10%~95% |
| Cable Length | 100mm |
3. Technical Characteristics
3.1 Antenna
| Receiving Frequency | 1575&1600MHz±5MHz |
| Central Frequency | 1575&1600MHz |
| Baud Width | 5MHZ |
| Gain(Maximum direction) | 0dB |
| Gain(10 degree elevation) | -5dB |
| Polarization | Right-handed polarization |
| Impedance | 50Ω |
3.2 Low Noise Amplifier
| Center frequency | 1575.42&1561.09MHz |
| Gain | 20dB±3dB |
| Noise factor | ≤2.0dB |
| Standing-wave ratio | ≤2.0 dB |
| Working voltage | 2.7-3.3V |
| Working current | ≤12mA |
| Impedance | 50Ω |

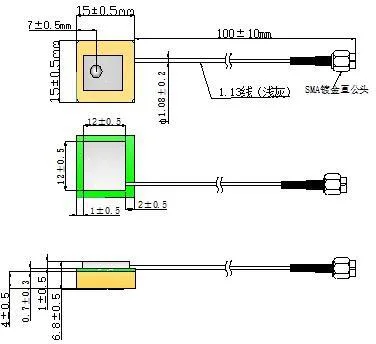

4. Structure dimension drawing (unit: mm)
