Basic Info.
Model NO.
M016
Base Antenna
High Gain Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Surface Antenna
Dimensionality
One-Dimensional Antenna
Model
Atc-M016
Certification
RoHS
Application
Am FM+GPS/Bd+GSM Antenna
Amplifier Gain
30±3dB
Noise Figur
1.5dB(Typical) 2.0dB Max
Waranty
3 Years
Install
Rear
Transport Package
Poly Bag
Trademark
ATC
Origin
China
HS Code
85291020
Production Capacity
5000 Month
Product Description
company information
Antenna Technology is a high-teach company in Guangdong Province. It is professionally engaged in designing, manufacturing and selling Car Antenna and mobile communication products, we always keep an eye on your demands and the developing trend of this industry, and have established a complete products system of car antenna.
Our company has 10 years experience in manufacturing car antenna.The superior engineers provide precondition for product innovation, perfect production and testing equipment provide the quality guarantee for our products.
As the international enterprise, we are aiming at bringing customers the highest quality products to satisfy your expectation and needs, a large group of skilled technician work hard in order to increase the benefit for customers.

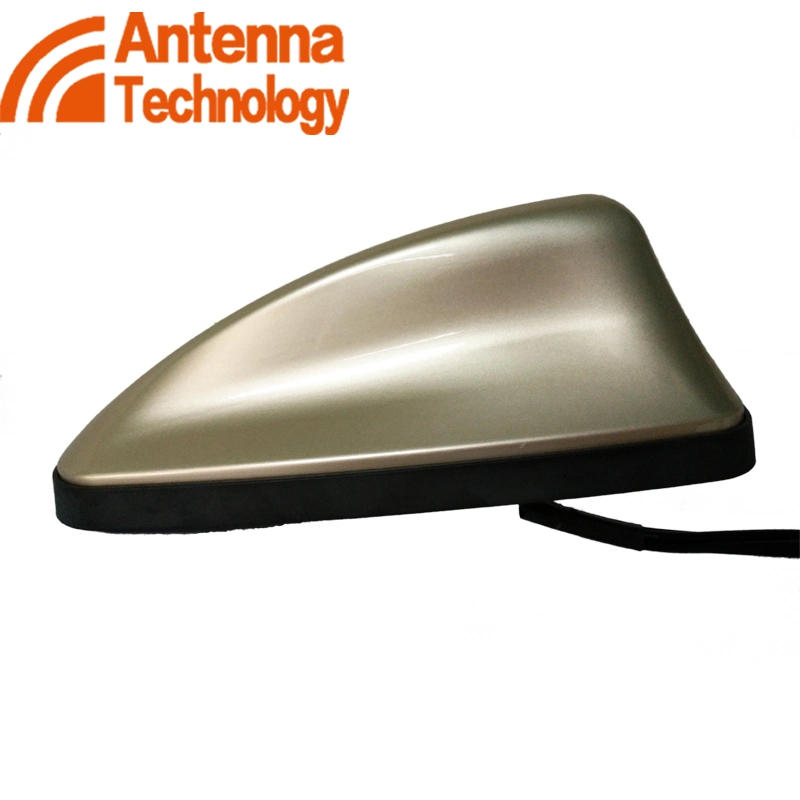

product
specification
packing
pratical application
Antenna Technology is a high-teach company in Guangdong Province. It is professionally engaged in designing, manufacturing and selling Car Antenna and mobile communication products, we always keep an eye on your demands and the developing trend of this industry, and have established a complete products system of car antenna.
Our company has 10 years experience in manufacturing car antenna.The superior engineers provide precondition for product innovation, perfect production and testing equipment provide the quality guarantee for our products.
As the international enterprise, we are aiming at bringing customers the highest quality products to satisfy your expectation and needs, a large group of skilled technician work hard in order to increase the benefit for customers.
product
specification
| origin | China |
| brand | ATC |
| model | ATC-M016 |
| GPS/BDS specification | |
| frequency | 1559AHz-1577MHz |
| impedance | 50±5Ω |
| VSWR | <1.5 |
| amplifier gain | 30±3dB |
| operating voltage | DC 3V-5V |
| oprating current | 25±10mA |
| noise figure | 1.5dB(typical) 2.0dB max |
| GPRS specification | |
| frequency | AMPS:824-894MHz |
| GSM900:880-960MHz | |
| GSM1800:1710-1880MHz | |
| PCS:1850-1990MHz | |
| impedance | 50±5Ω |
| AM/FM specification | |
| frequency | AM:535-1605KHz |
| FM:88-108MHz | |
| center frequency | 96-100MHz |
| impedance | 75±5Ω |
pratical application
