Basic Info.
Model NO.
R330C
Function Type
POS for Transfering, POS for Consuming
Network Management
Support Network Management
CPU
Mtk6572
System
Android 7.0
Memory
1GB RAM, 8GB Flash ( 2+16) Optional
Display
1280*720 IPS, G+FF Multi-Capacitive Touch
Key Pad
Power on / off, Volume up / Scanner
Card Slot
SIM: 1*SIM Card (1.8V/3.0V)
Speaker
0.8W, 95dB, Audio Interface, Single Sound Track
Data Connect
GSM, WCDMA, Wi-Fi
GPS/a-GPS
Build in GPS, Support a-GPS
Thermal Printer
58mm, 40mm Roll, 70mm/S, Print Duration≥50km
Scanner
Build in 1d /2D, 1d/2D Barcode Printing; Online up
Interface
1*Micro USB(Charge Supported), OTG USB, RJ45
Earphone-Jack
3.5mm, External RFID Reader Via This Connector
Anti-Drop
1.2 Meter
Battery
7.4V, 2600mAh
Adapter
Input: AC: 100-240V, Output: 5V, 2A
Transport Package
Neutral Packing
Specification
198mm*79mm*48
Trademark
HCCTG
Origin
Made in China
Production Capacity
20000 Units/Month
Product Description
Handheld Android Smart POS Terminal with 5MP Camera GPS 3G WiFi Bluetooth 58mm Printer R330C
High-speed thermal printer
Powerful: continous working 3 hours, standby sleep 4 days
Supports 2G/3G+Wi-Fi & bluetooth+GPS
Rear 5M HD camera + Scanner
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment (Escrow Service from Alibaba) and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
Features

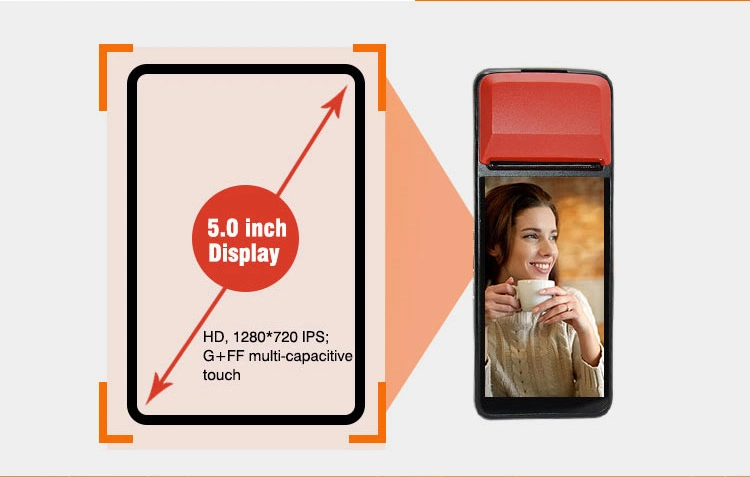

5.0 inch display, mobile cashier, smarter and more secureHigh-speed thermal printer
Powerful: continous working 3 hours, standby sleep 4 days
Supports 2G/3G+Wi-Fi & bluetooth+GPS
Rear 5M HD camera + Scanner
| CPU | MTK6572 |
| OS | Android 6.0 Bit Nougat/ Senraise OS |
| Memory | 1GB RAM, 8GB Flash ( 2+16) optional |
| Display | 5.0"HD,1280*720 IPS, G+FF multi-capacitive Touch |
| Key Pad | Power on / off, Volume up / scanner |
| Card Slot | SIM: 1*SIM card (1.8V/3.0V) |
| Speaker | 0.8W, 95dB, Audio interface, single sound Track |
| Data connect | GSM:B2/B3/B5/B8 WCDMA:B1/B2/B5/B8 |
| Wi-Fi: 2.4G/5Ghz, support IEEE 802.11a/b/g/n | |
| GPS/A-GPS | Build in GPS, support A-GPS |
| Thermal Printer | 58mm, 40mm Roll, 70mm/s, print duration≥50km Low noise, Power saving, 3K receipts supported |
| Camera | Rear Camera: 5M, AF(Auto Focus ), LED Fake flash, Current 150mA, 70 lumen |
| Front Camera: 0.3M,3P, FF(Fix Focus ) (Optional ) | |
| Scanner | Build in 1D /2D, 1D/2D Barcode printing; Online upgrade |
| Antenna | 1*Main+1*Diversity + Wi-Fi & Bluetooth 3.0,4.0, BLE |
| Interface | 1*micro USB(charge supported), OTG USB, RJ45 |
| Earphone-Jack | 3.5mm, external RFID Reader Via this connector |
| Anti-drop | 1.2 meter |
| Environment | Normal Operating Temp: 0-40ºC |
| Storage Temp: -20ºC-60ºC | |
| Battery | 7.4V, 2600mAh,Samsung 18650, Certification: CCC ,UN38.3,CB. Protection for over charging discharging |
| Adapter | Input: AC: 100-240V, Output: 5V,2A |
| Charger | Micro USB,1.0 m, Certification: CCC, CE, CB, FCC, RoHS |
| Power life | Stand by 250+ hours working hour 16+ (Display on and wireless connected) |

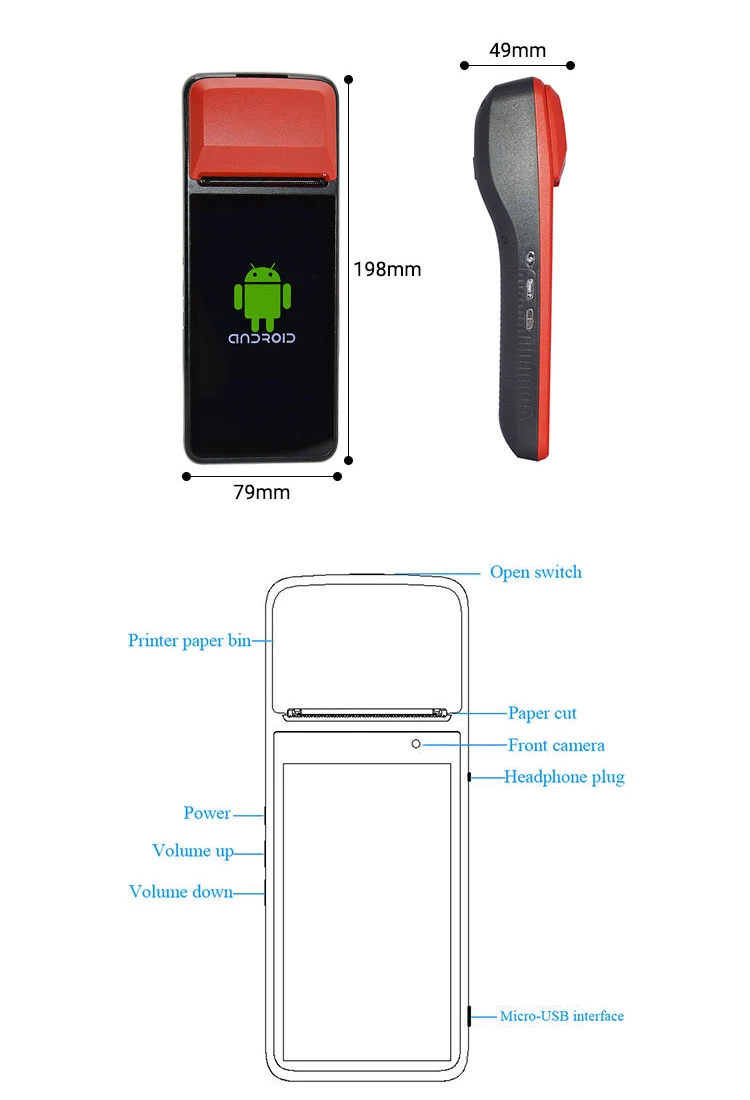

| Weight Packing | 198mm*79mm*48(L*W*H) Net: 347.5g, Gross: 650g, 10 pcs, 1 Carton: 330mm*203mm*238mm |

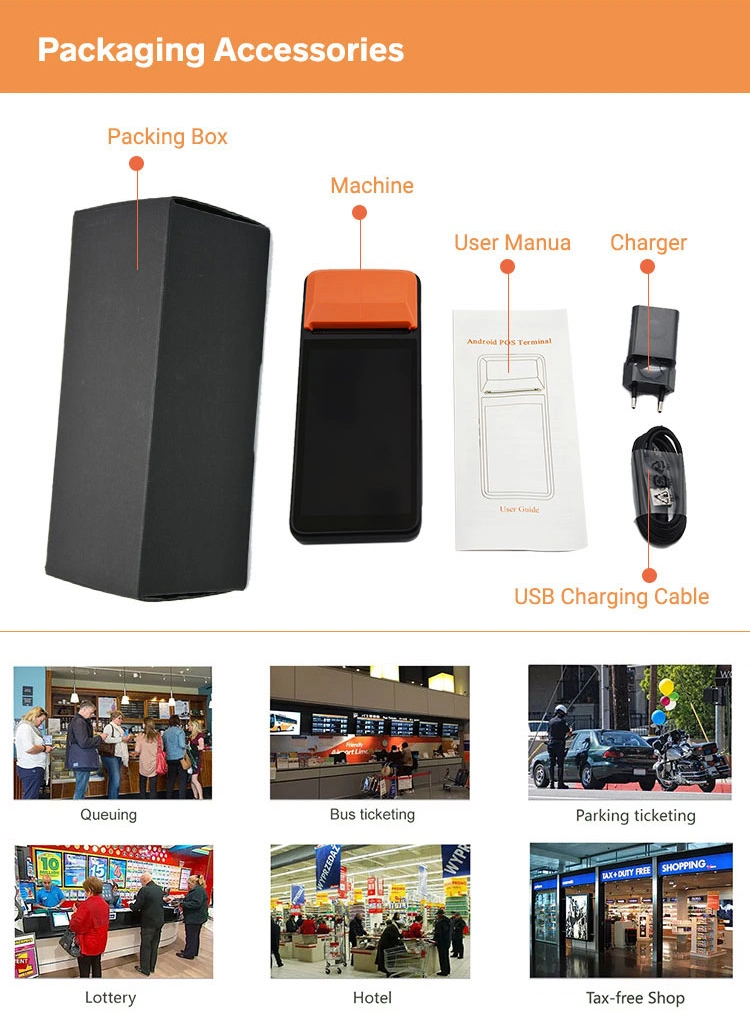

| Accessories | Micro USB cable*1, screwdriver *1, power adapter *1 |
| Warranty | 12 Month |
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment (Escrow Service from Alibaba) and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.

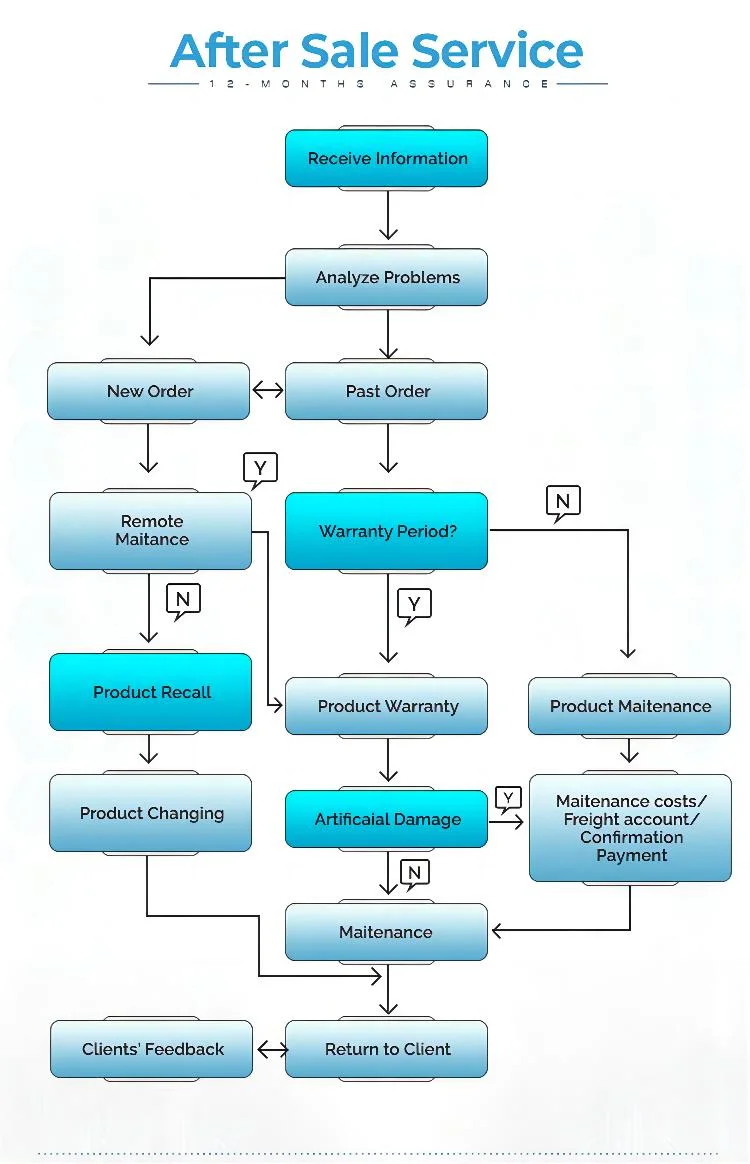

9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
