Basic Info.
Model NO.
IRTK4
Port Number
Sequencing Channel
Chip
SiRF
Warranty
3 Years
Brand Name
Hi-Target
Model Number
Irtk4
GPS
Simultaneous L1c/a,L2c,L2e,L5
Glonass
Simultaneous L1c/a,L1p,L2c/a(Glonass M Only),L2p
Sbas
Simultaneous L1c/a,L5
Galileo
Simultaneous L1 Boc,E5a,E5b,E5altboc
Bds
B1,B2
Dimensions
153mm*83mm
Humidity
100%,Considering
Water/Dustproof
IP67 Dustproof,Protected From Temporary Immersion
Transport Package
1 Set Packed in 2 Cartons
Trademark
Hi-target IRTK4
Origin
China
HS Code
9015800090
Production Capacity
20000PCS/Year
Packaging & Delivery
Package Size
55.00cm * 45.00cm * 35.00cm
Package Gross Weight
5.000kg
Product Description

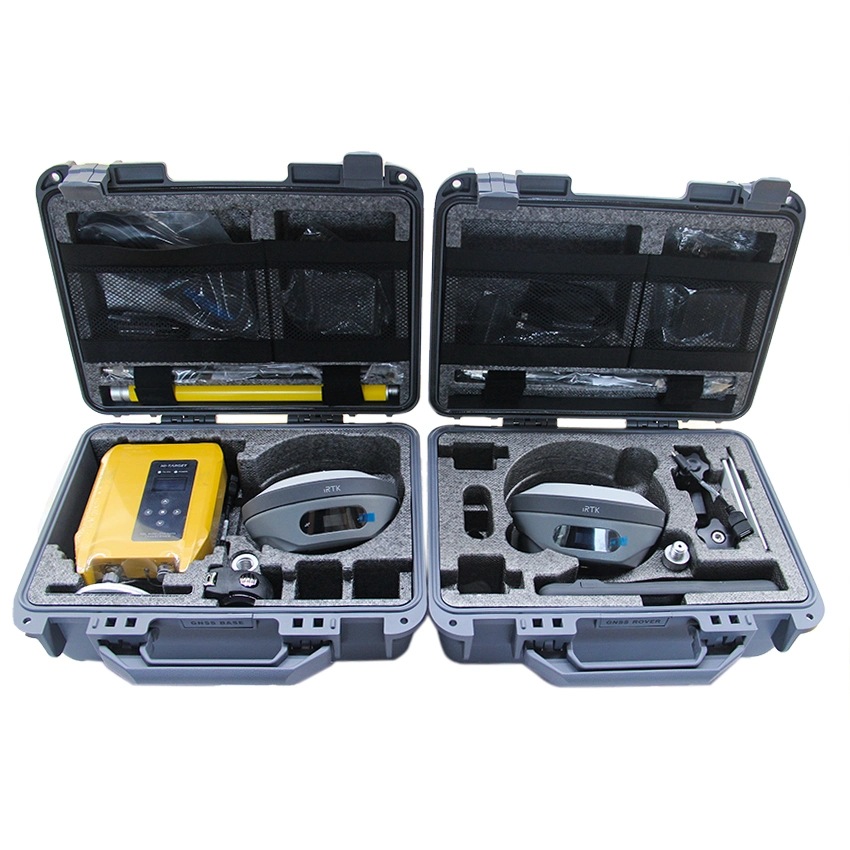

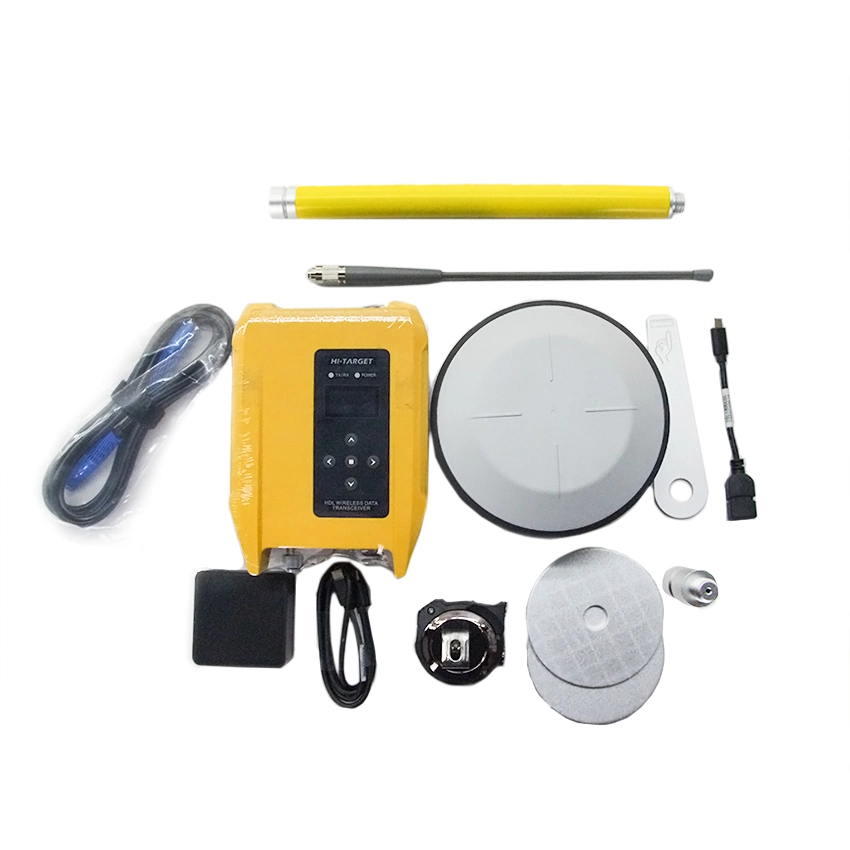

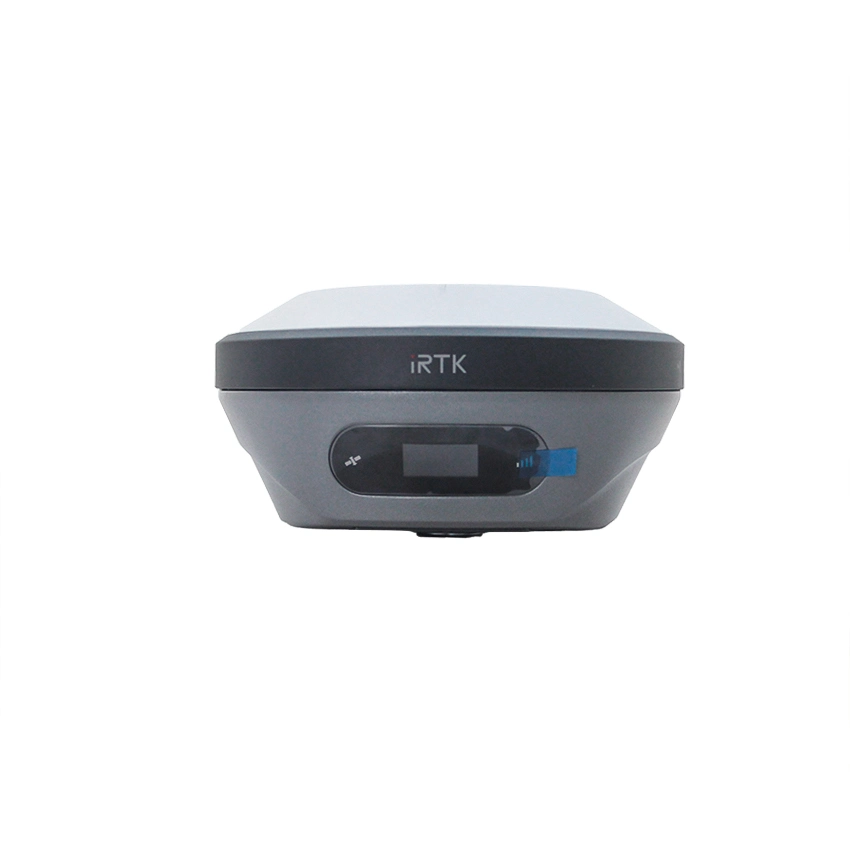

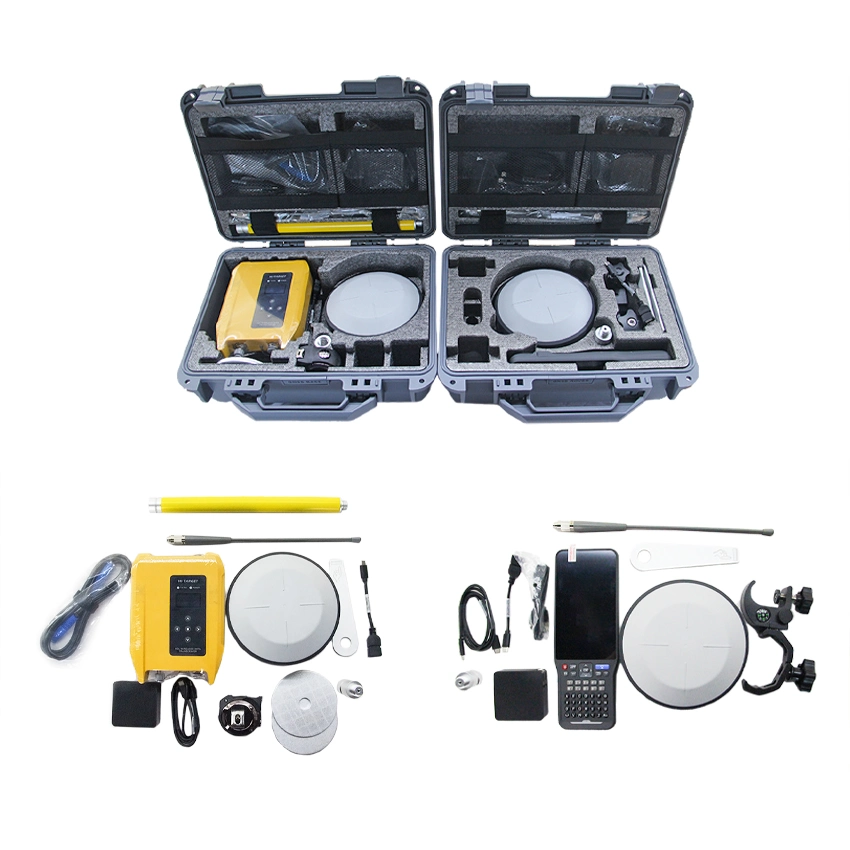

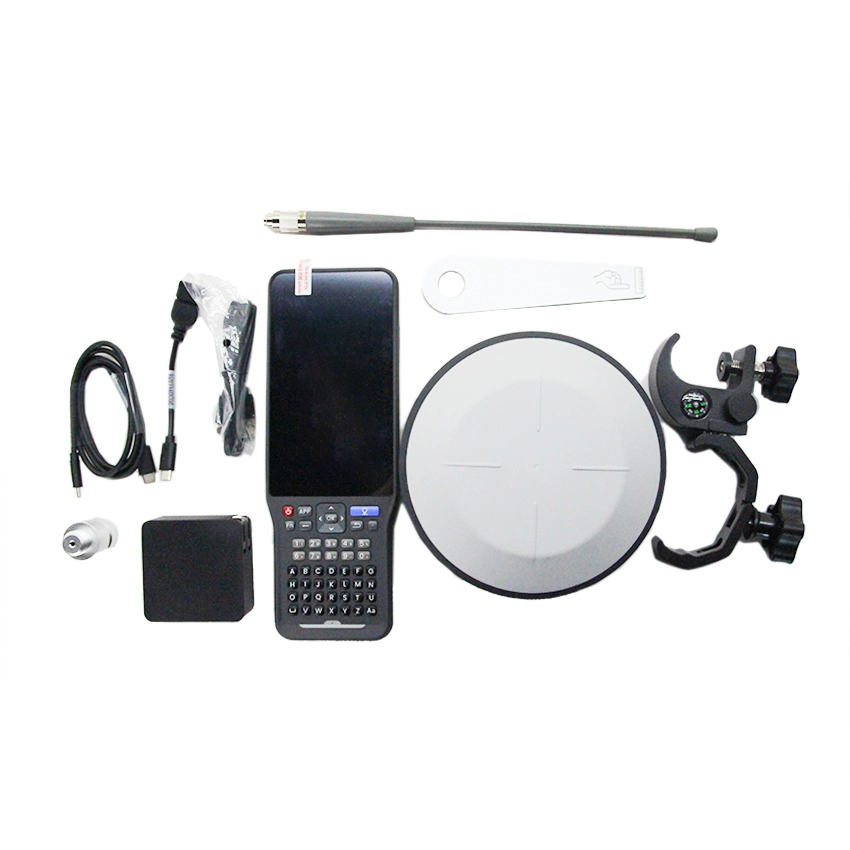

Hi Target Irtk4 Gnss Rtk System Imu 886 Channels Ihand55 Controller Hi Survey Road Software
| Model | IRTK4 | |
| Satellite Signals Tracked Simultaneously | Channels | 866 |
| BDS | B1,B2,B3 | |
| GPS | L1, L2, L5 | |
| GLONASS | L1, L2 | |
| SBAS | YES | |
| GALILEO | E1, E5a, E5b | |
| Global correction service | Hi-RTP (optional) | |
| Static and Fast Static GNSS Surveying | Horizontal | 2.5mm+0.5ppm RMS |
| Vertical | 5mm+0.5ppm RMS | |
| RTK | Horizontal | 8mm+1ppm RMS |
| Vertical | 15mm+0.5ppm RMS | |
| Initialization time | Typically < 8seconds | |
| Initialization reliability | Typically > 99.9% | |
| DGPS | Horizontal | 25cm+1ppm RMS |
| Vertical | 50cm+1ppm RMS | |
| SBAS | 0.50m Horizontal, 0.85m Vertical | |
| I/O Interface | 1 xBluetooth, NFC ,1 x standard USB2.0 port ,1 x TNC antenna connector,1 x Type C serial port ,1 x DC power input (5-pin) ,1 x MicroSD card port | |
