DL-GPS&GLONASS-FAKRAZM5-BCA-G
Base Antenna
Directional Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Wire Antenna
Dimensionality
Two-Dimensional Antenna
Connector
Fakra
Cable
Rg-174
Weight
<110g
Mounting
Magnetic
Lead Time
3-7 Days
Sample Time
1-3 Days
Certifications
Ce, RoHS, ISO9001: 2008, FCC
Polarization
Rhcp
Transport Package
Polybag, Paper Cartoon
Specification
48*37*17mm
Origin
China
HS Code
85291010
Production Capacity
30000/Day
Product Description

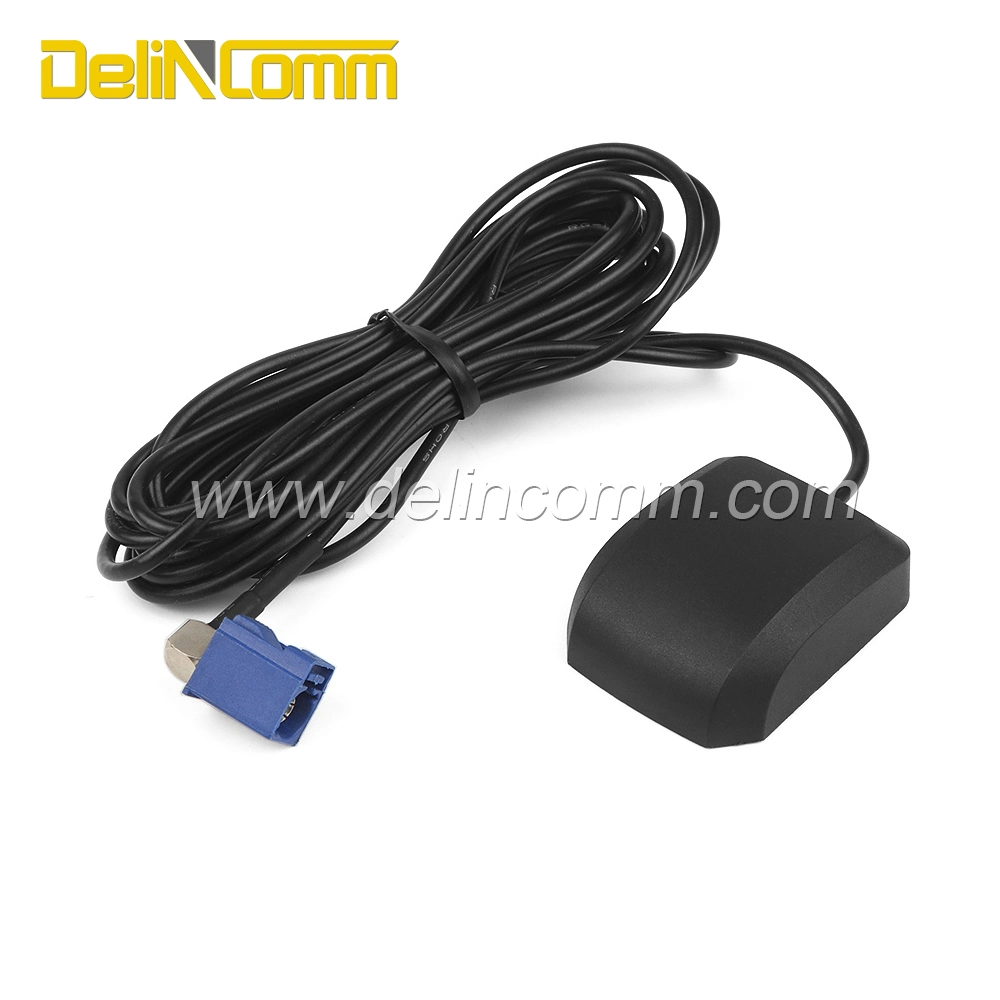

High Gain 1575.42&1600 MHz Car Passive GPS&Glonass Antenna with FAKRA
Mechanical Specifications
Conditions
Antenna Characteristics
Amplifier Characteristics
Mechanical Specifications
| Size (mm) | 48*37*17mm | Mounting | 3M Sticker / Magnetic |
| Weight(g) | <110 | Connector | SMA/BNC/MCX/MMCX/SMB/FAKRA/GT5 |
| Color | Black | Cable | RG174 - 3m |
Conditions
| Working Conditions | Temperature:-40ºC~+85ºC |
| Humidity: 95%~100% | |
| Storage Conditions | Temperature:-40ºC~+85ºC |
| Humidity: 95%~100% |
Antenna Characteristics
| No. | Item | Specifications |
| 1 | Range of Receiving Frequency(MHz) | 1575.42&1600 ± 2 |
| 2 | Center Frequency(MHz) (with 30mmSpuareGND plane) | 1575.42&1600 ± 3 |
| 3 | V.S.W.R(in Center Frequency) | ≤2.0 |
| 4 | Gain (Zenith)(dBi typ) (with 70mmSquare GND plane) | 3.0± 0.5 |
| 5 | Axial Ratio (with 70mm Square GND plan) | 3.0dB± 0.2 |
| 6 | Polarization | RHCP |
| 7 | Impedance(Ω) | 50 |
| 8 | Frequency Temperature Coefficient (ppm/ºC) | 0±10 |
Amplifier Characteristics
| No. | Item | Specifications |
| 1 | Range Of Receiving Frequency | 1575.42&1600± 2MHz |
| 2 | LAN Gain | 26±3 dB |
| 3 | V.S.W.R. | ≤2.0 |
| 4 | Noise Figure | <2.0 |
| 5 | Supply Voltage | 3~5V |
| 6 | Current Consumption | ≤20mA |
