Basic Info.
Model NO.
JCN051
Material
Ceramic
Directionality
Omnidirectional Antenna
VSWR
<1.5
Base Antenna
High Gain Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Surface Antenna
Dimensionality
One-Dimensional Antenna
Size
27X27X8.8mm
Transport Package
Common or Special
Specification
rohs
Trademark
jinchang
Origin
Jiaxing, Zhejiang, Province, P. R. C
HS Code
85291010
Production Capacity
500, 000PCS/Month
Packaging & Delivery
Package Size
3.00cm * 3.00cm * 1.00cm
Package Gross Weight
0.100kg
Product Description

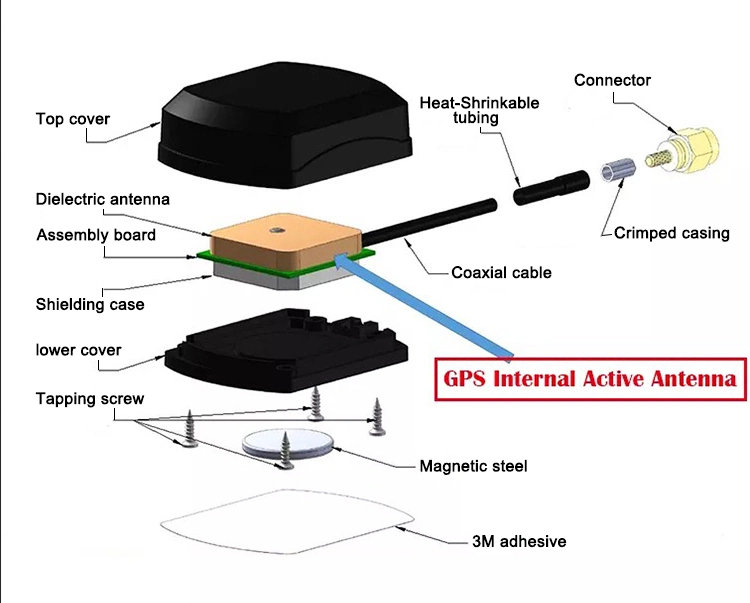

High Gain GLONASS GALILEO GPS Internal Active Ceramic Patch Antenna
| Item | Specifications | |
| Antenna | Center Frequency | 1568±3MHz |
| Band Width | CF±5MHz | |
| Polarization | RHCP | |
| Gain | 5dBic | |
| V.S.W.R | <1.5 | |
| Impendance | 50Ω | |
| Axial Ratio | 3dB(max) | |
| Dimension | 25*25*4mm | |
| LNA | Gain | 28±2dB |
| Noise Figure | <1.5 | |
| Filter Insertion Loss | <3dB | |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
| Supply Voltage | 2.2~5V DC | |
| Current Consumption | 5~15mA | |
| V.S.W.R | <2.0 | |
| Mechanical | Cable | RF1.13 or others |
| Connector | IPEX or others | |
| Environmental | Operating Temperature | -40ºC~+85ºC |
| Relative Humidity | Up to 75% | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant | |
