Basic Info.
Model NO.
GL-DY226
Material
ABS
Directionality
Rhcp
VSWR
<1.5
Base Antenna
High Gain Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Wire Antenna
Dimensionality
One-Dimensional Antenna
PCS/CTN
200
Weight/CTN
12.5
Connector
Fakra C Blue or SMA Male
Cable Length
2m
Transport Package
48*30*28cm
Specification
40*30*15.1mm
Trademark
LEHENG
Origin
China
HS Code
8529109090
Production Capacity
3000PCS/Day
Packaging & Delivery
Package Size
53.00cm * 23.00cm * 29.00cm
Package Gross Weight
11.390kg
Product Description
Applications
Automobile Navigation,
Logistics Positioning and etc.
Features
High stability,
Linearity,Consistency,
High gain,
outside-band interference suppression,
Low Noise Figure

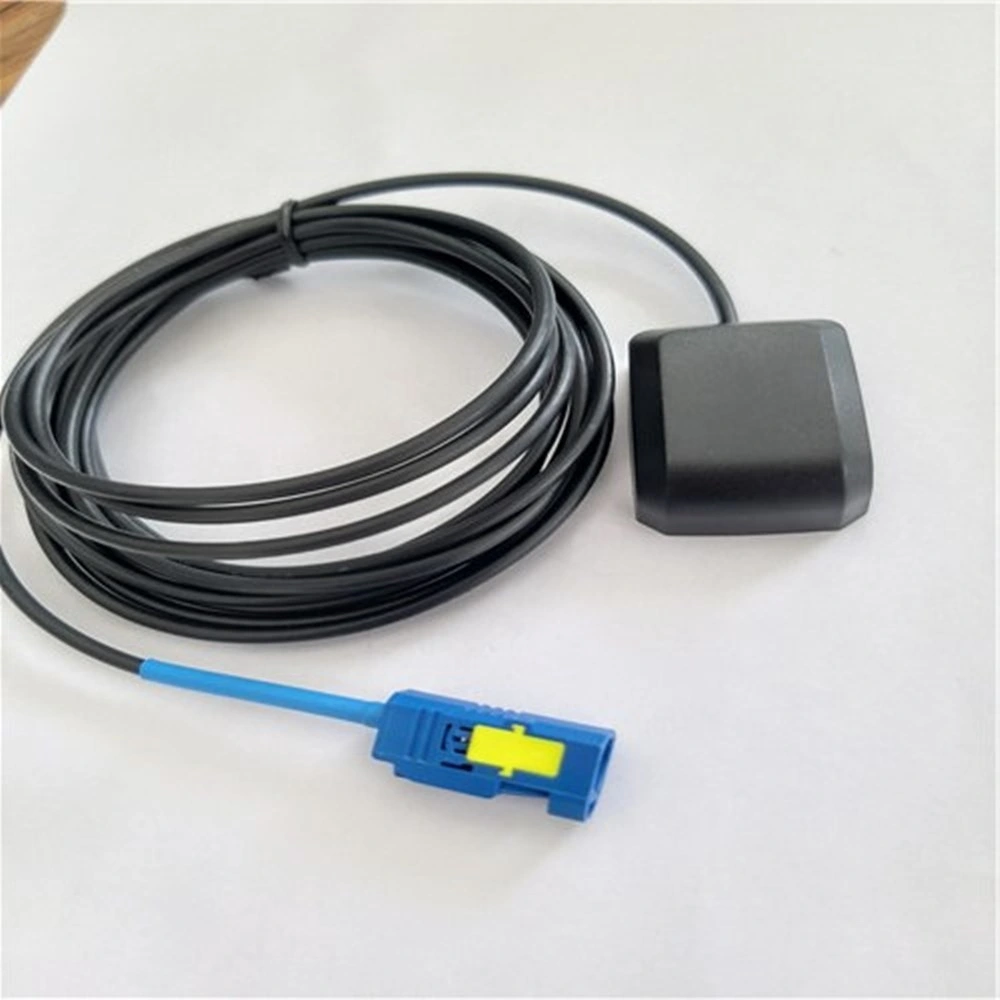

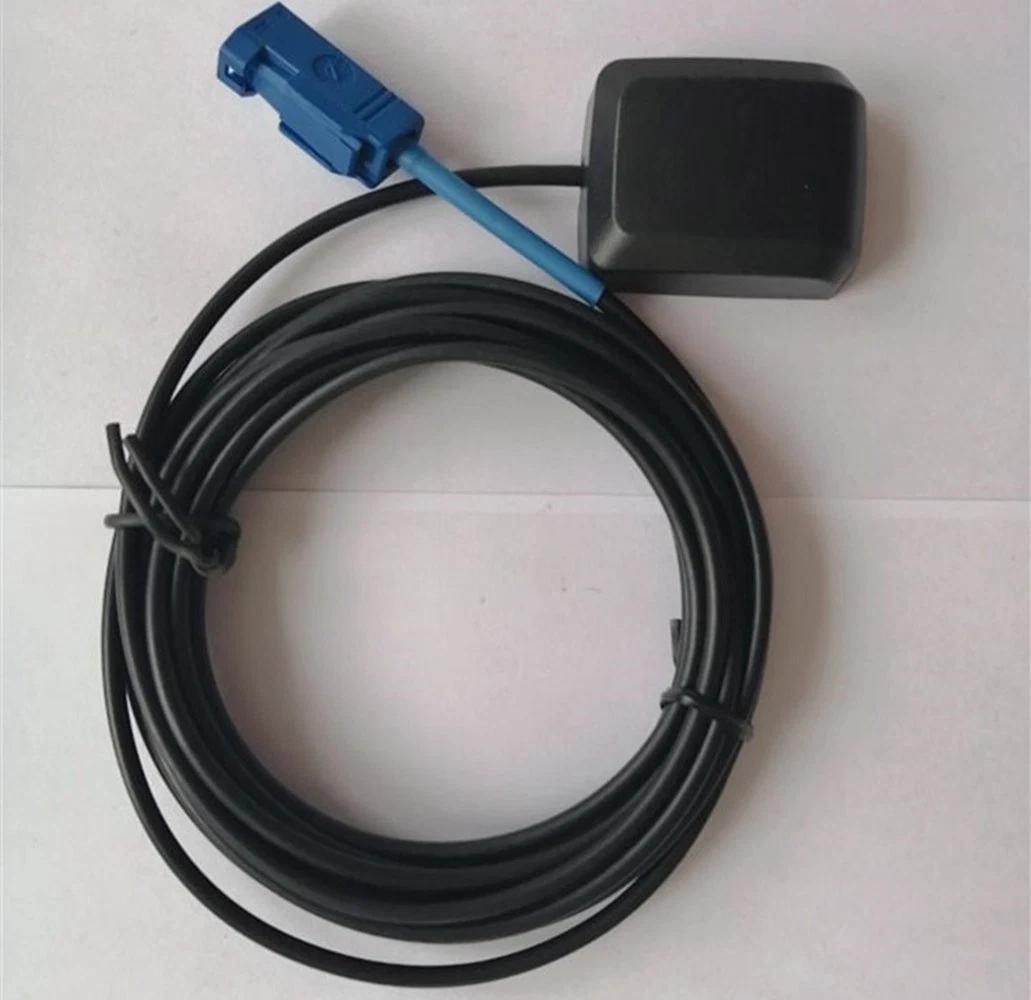

| GPS Antenna | |
| GL-DY226 | |
| Electrical Index | |
| Frequency-MHz | 1575.42±1 |
| VSWR | <1.5 |
| Nominal Impedance-Ω | 50 |
| Polarization | RHCP |
| Axial Ratio | 3dB(max) |
| LNA Gain | 28±2dB |
| Noise Figure | <1.5 |
| Supply Voltage | 3-5V DC |
| Current Consumption | 5-15mA |
| Mechanical Index | |
| Cable Length | RG174,2m |
| Connector | FAKRA or other |
| Antenna Dimension-mm | 40*30*15.1 |
| Installation Way | Magnet or Adhesive |
| Ingress Protection | IP65~IP67(exclude cable outlet) |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
| Environmentally Friendly | ROHS Compliant |
| Temperature-ºC | -40~+85 |
| Humidity-% | 5~95 |
Zhengzhou LEHENG Electronic Technology Co.,Limited is located in Zhengzhou,Henan,was founded in the year 2016,Which is the central plains,it is the largest logistics transportation and transit center in Asia.Its Hong Kong Company GLOBAL EAST ASIA TECHNOLOGY CO.,LTD,was built up in the year 2014.
Our main products: GPSGLONASS Antennas,GPS Receiver Modules,5G Antennas,Combo Antenna,GSM/3G Antennas,4G/LTE Antennas,433MHz and 868MHz Antennas,TV Antennas, MIMO Antennas,WIFI Antennas,WLAN and WIMAX Antennas,Various connectors and cables assembly.
Our principle of service: Service-first,Integrity-based,quality-oriented. With the operation principle of innovation,pragmatic,efficient and win-win business philosophy,Zhengzhou LEHENG Electronic Technology Co.,Limited has made remarkable achievements through the extension of the corporate culture and continue to expend new markets by our all staff's tireless efforts. We have partners all over the world,even has become the sole agent of many European and American traders in China, and enjoy a good reputation in the industry over the years.
To create value for customers,creating opportunities for staffs and for social responsibility is our working goals.
We firmly believe that: Stable operation and continued to enhance corporate value, abide by its commitment,to provide customers with first-rate service and high quality products is the code of conduct which we have to adhered.
