Product Description

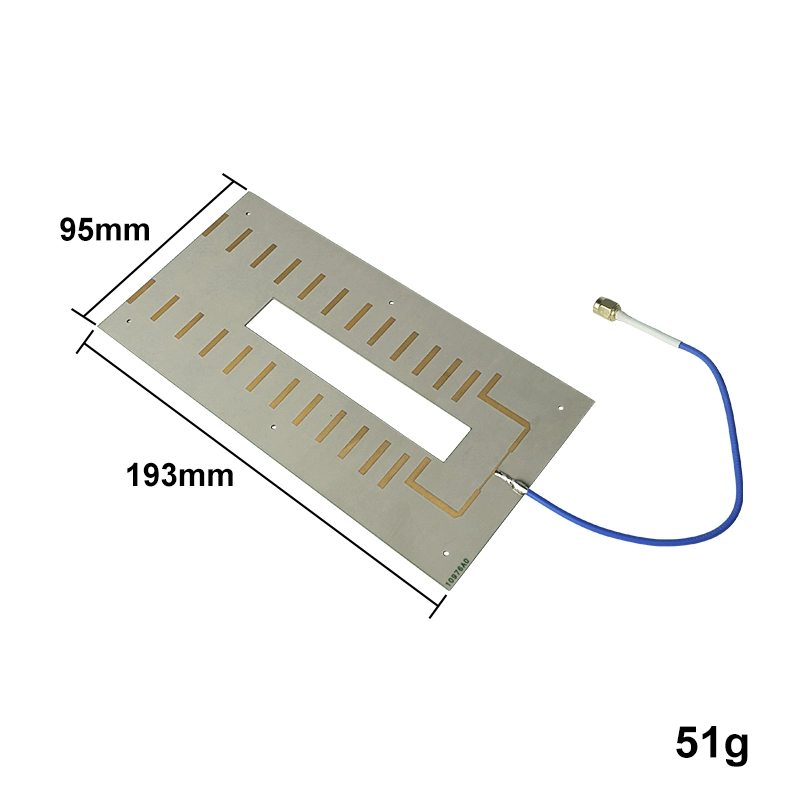

High Gain Stronger PCB Antenna 1.5G 2.4G 5.8G For Anti Drone Device
Main performance index
The PCB antenna is widly used in drone countermeasures devices, such as portable device and stationary machines. Our company also produces relevant drone countermeasure equipment, welcome to consult.
| Electrical Specifications(5.8G 17dBi) | |
| Frequency Range | 5700-5900MHz |
| Gain(dBi) | 17±1dbi |
| VSWR | ≤1.5 |
| Polarization | vertical |
| Horizontal Beamwidth(0º) | 35-45º |
| Vertical Beamwidth(0º) | 27-38º |
| ( Front to back ratio)db | 15dB |
| Input Impedance(Ω) | 50Ω |
| Maximum input power(W) | 50W |
| Inpur connector type | SMA-J with 086 cable |
| Lightning Protection | DC Ground |
| Mechanical Specifications(5.8G 17dBi) | |
| Dimensionsmm(Height/Width/Depth) | 370*28*1mm |
| Packing size(mm) | ****mm |
| Antenna weight(kg) | 0.15Kg |
| Rated Wind Velocity(m/s) | 60m/s |
| Operational Humidity(%) | 10- 95 |
| Radome Color | Grey |
| Antenna body material | Double-sided tefln copper clad plate |
| Operating temperature(ºC) | -40~55 º |
| Installution Method | Built-in installation |
