Product Description
| Item | Specifications | ||
| GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±1MHz |
| Band Width | CF±5MHz | ||
| Polarization | RHCP | ||
| Gain | 2dBic(Zenith) | ||
| V.S.W.R | <1.5 | ||
| Impendance | 50Ω | ||
| Axial Ratio | 3dB(max) | ||
| LNA | Gain | 28±2dB | |
| Noise Figure | <1.5 | ||
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | ||
| V.S.W.R | <2.0 | ||
| Supply Voltage | 2.2~5V DC | ||
| Current Consumption | 5~15mA | ||
| GSM Antenna | Frequency Range | 824~960MHz/1710~2170MHz | |
| V.S.W.R | <2.5 | ||
| Polarization | Linear | ||
| Gain | 2dBi | ||
| Impendance | 50Ω | ||
| FM/AM Antenna | Frequency Range | 520~1629KHz/76~108MHz | |
| V.S.W.R | <2.5 | ||
| Polarization | Linear | ||
| Gain | 20/12dBi | ||
| Impendance | 50Ω | ||
| Supply Voltage | 12V DC | ||
| Environmental | Operating Temperature | -40ºC~+85ºC | |
| Relative Humidity | Up to 95% | ||
| Ingress Protection | IP65~IP66 (exclude cable outlet) | ||
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
| Environmentally Friendly | ROHS Compliant | ||
Q: Can I receive a sample?
A: Certainly! We offer samples of our products.
Q: Do you have GNSS Antenna 100% assembled and in stock?
A: No, all GNSS antennas are assembled according to your specific order, including samples.
Q: What is the delivery time?
A: The sample will be delivered within 3-5 working days, while quantities below 5K will take 10-15 working days.
Q: Can I use my own logo or design on the goods?
A: Absolutely! We provide customization options for logos and designs on mass production.
Q: What are the available payment terms?
A: We accept payment through T/T, Paypal, Western Union, and more.
Q: Am I allowed to visit your company?
A: Of course! You are welcome to visit us at any time.
Q: How long is the warranty?
A: Our antennas come with a one-year warranty, while assembly cables and connectors have a warranty of half a year.
Product Description:

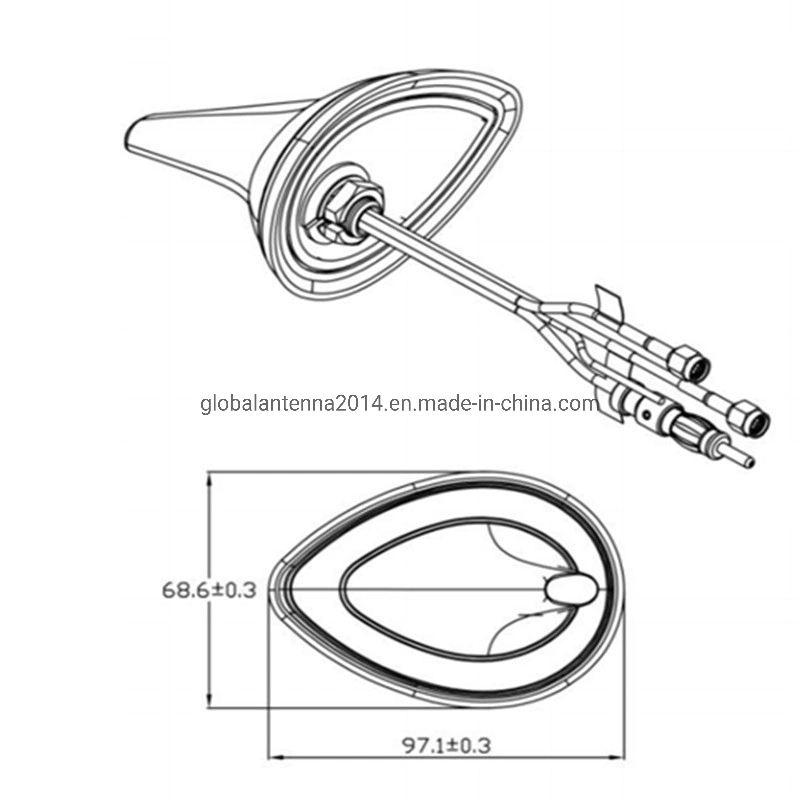

Product Name: 2dBi Gain GPS+GSM+Am/FM Combo Antenna
Keywords: GPS+GSM+Am Antenna/Glonass+GSM+FM Aerial/Glonass+3G Antenna/GPS/Glonass+GSM/3G Antenna/2dBi GPS Antenna/GPS Antenna/3G Antenna/Black Colour
This 2dBi Gain GPS+GSM+Am/FM Combo Antenna is a versatile and high-performance antenna suitable for various applications. With its black color and sleek design, it adds a touch of sophistication to any device.
Featuring a combination of GPS, GSM, and Am/FM capabilities, this antenna ensures reliable and accurate positioning, seamless communication, and excellent radio reception. It is perfect for use in cars, providing optimal performance in a wide range of driving conditions.
With a working wavelength in the microwave range, this antenna delivers exceptional signal strength and stability. Its 2dBi gain enhances the overall performance, allowing for improved connectivity and efficiency.
Customization options are available, allowing you to add your own logo or design to the antenna during mass production. This ensures a personalized touch and brand consistency.
Rest assured, our antennas are assembled with precision and undergo rigorous quality control measures. We offer a one-year warranty for antennas and a half-year warranty for assembly cables and connectors, providing you with peace of mind.
Experience the reliability and performance of the 2dBi Gain GPS+GSM+Am/FM Combo Antenna. Order yours today!
