Product Description
| Item | Specifications | ||
| GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±1MHz |
| Band Width | CF±5MHz | ||
| Polarization | RHCP | ||
| Gain | 2dBic(Zenith) | ||
| V.S.W.R | <1.5 | ||
| Impedance | 50Ω | ||
| Axial Ratio | 3dB(max) | ||
| LNA | Gain | 28±2dB | |
| Noise Figure | <1.5 | ||
| V.S.W.R | <2.0 | ||
| Supply Voltage | 2.2~5V DC | ||
| Current Consumption | 5~15mA | ||
| GSM Antenna | Frequency Range | 824~960MHz/1710~1990MHz | |
| V.S.W.R | <2.5 | ||
| Polarization | Linear | ||
| Gain | 2dBi | ||
| Impendance | 50Ω | ||
| WIFI Antenna | Frequency Range | 2400~2483.5MHz | |
| Band Width | 83.5MHZ | ||
| Polarization | Linear | ||
| Gain | 3dBi | ||
| V.S.W.R | <2.0 | ||
| Impedance | 50Ω | ||
| Mechanical | Cable | RG174 | |
| Connector | SMA/MCX/FAKRA or others | ||
| Material | ABS | ||
| Mounting Method | Screw | ||
| Environmental | Operating Temperature | -40ºC~+85ºC | |
| Relative Humidity | Up to 95% | ||
| Ingress Protection | IP67 (exclude cable outlet) | ||
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
| Environmentally Friendly | ROHS Compliant | ||
Q: Can I get a sample?
A: Absolutely! We are more than happy to provide you with a sample.
Q: Do you have GNSS Antenna 100% assembled and in stock?
A: Unfortunately, we do not have GNSS antennas pre-assembled and in stock. However, we will assemble them according to your specific order, including the samples.
Q: What is the delivery time?
A: For samples, you can expect a delivery time of 3-5 working days. For quantities below 5K, the delivery time is approximately 10-15 working days.
Q: Can I use my own logo or design on the goods?
A: Yes, you can definitely customize the logo and design on mass production.
Q: What are the available payment terms?
A: We accept various payment methods such as T/T, Paypal, and Western Union.
Q: May I visit your company?
A: Of course! You are welcome to visit our company anytime.
Q: How long is the warranty?
A: Our antennas come with a one-year warranty, while assembly cables and connectors have a warranty period of half a year.
Product Description:

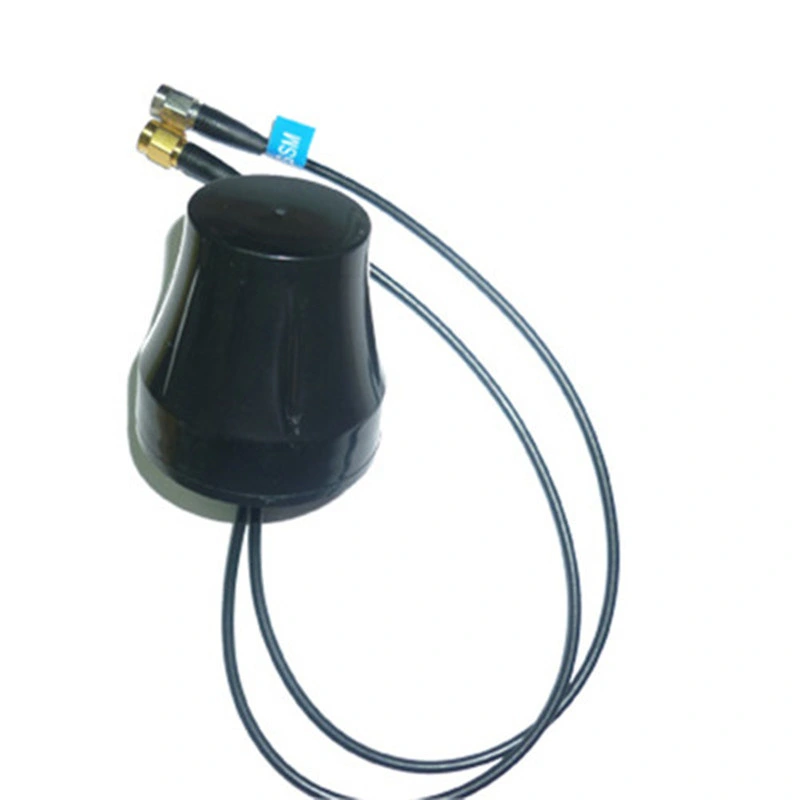

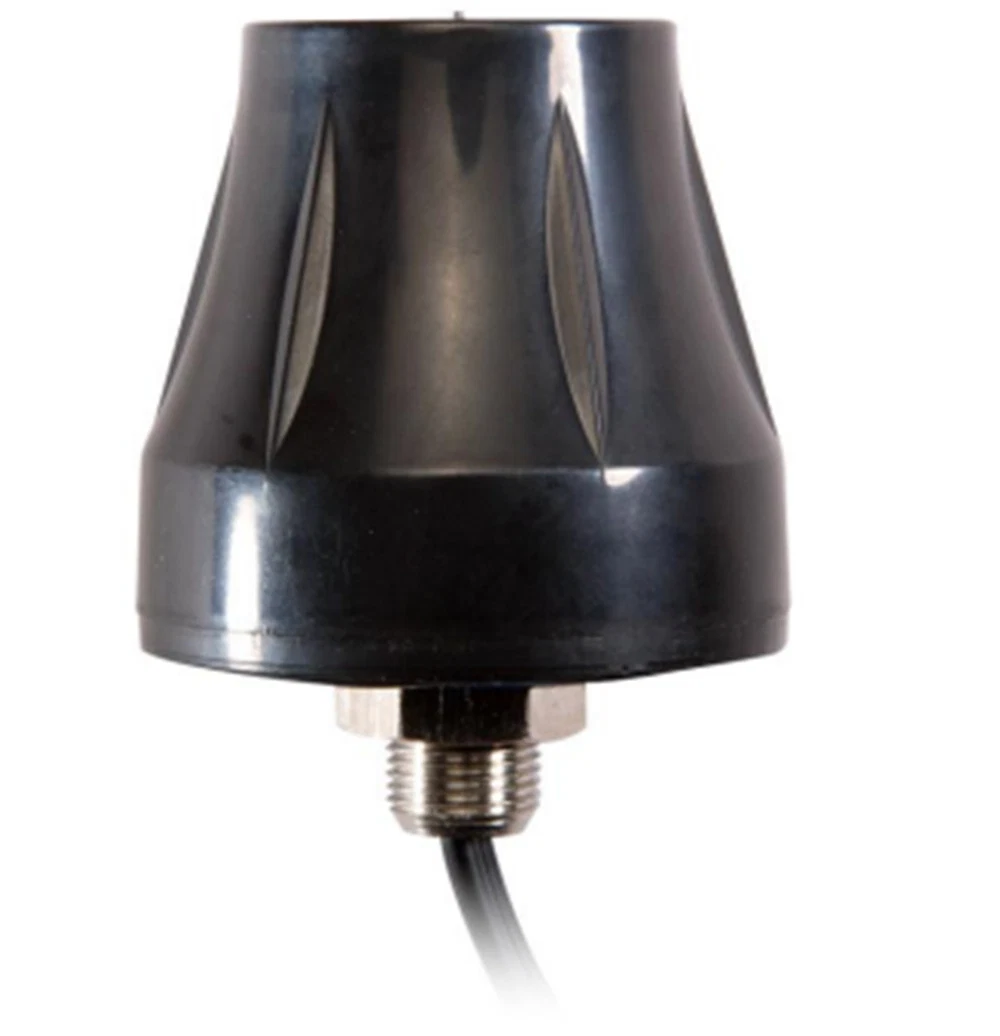

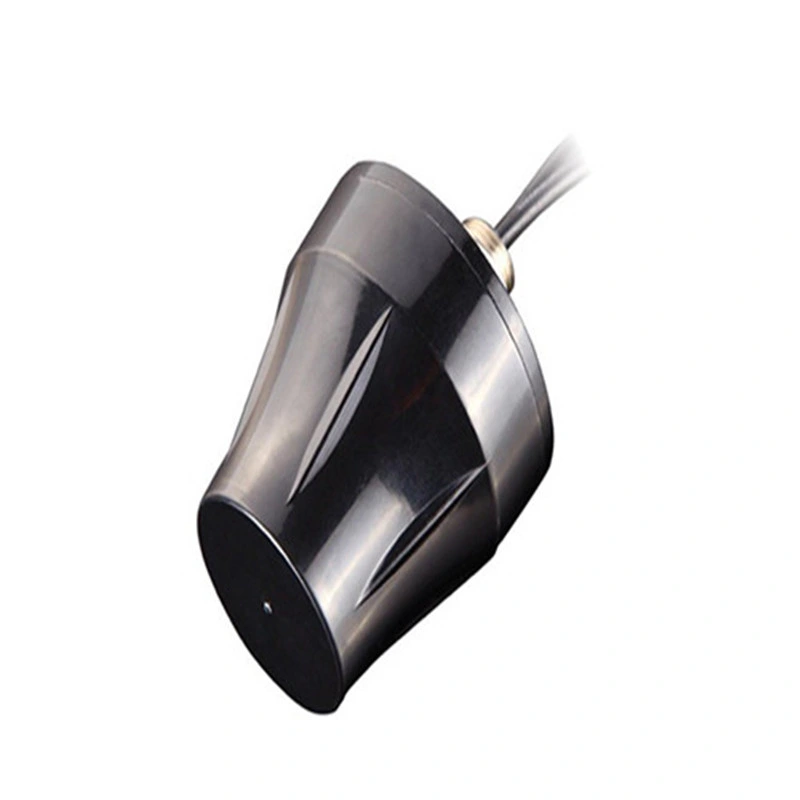

Gl-DYB062 GPS/Glonass+GSM/3G Combined Screw Mounting Antenna
Introducing our Gl-Dyb062 GPS/Glonass+GSM/3G Combined Screw Mounting Antenna, designed to meet your communication needs. This antenna is perfect for various applications, including car antennas and microwave communication antennas.
Featuring a sleek black color, this antenna not only performs exceptionally well but also adds a touch of style to your setup. With its SMA connector, it ensures a secure and reliable connection.
Our combo antenna is a versatile solution, combining GPS, GSM, and WiFi capabilities into one compact design. This allows for seamless communication and connectivity.
With the option to customize the cable, you can tailor it to your specific requirements. The RG 174 cable can be customerized to ensure optimal performance.
Trust in the quality and reliability of our Gl-DYB062 GPS/Glonass+GSM/3G Combined Screw Mounting Antenna. It is backed by our one-year warranty for antennas and a half-year warranty for assembly cables and connectors.
