Basic Info.
Model NO.
V90
Port Number
Multichannel
Chip
Telechips
Warranty
3 Years
Signal Tracking
660 Channels
Operating System
Linux 3.2.0
Material
Magnesium Aluminium Alloy Shell
Working Temperature
-45°c~+80°c
Power
Rechargeable Lithium-Ion Battery
Frequency Range
410-470MHz
WiFi
Yes
Waterproof Grad
IP67
Transport Package
Individual Package
Trademark
Hi target
Origin
Jiangxi
HS Code
9015800090
Production Capacity
20000PCS/Year
Packaging & Delivery
Package Size
55.00cm * 45.00cm * 35.00cm
Package Gross Weight
5.000kg
Product Description
Specifications:

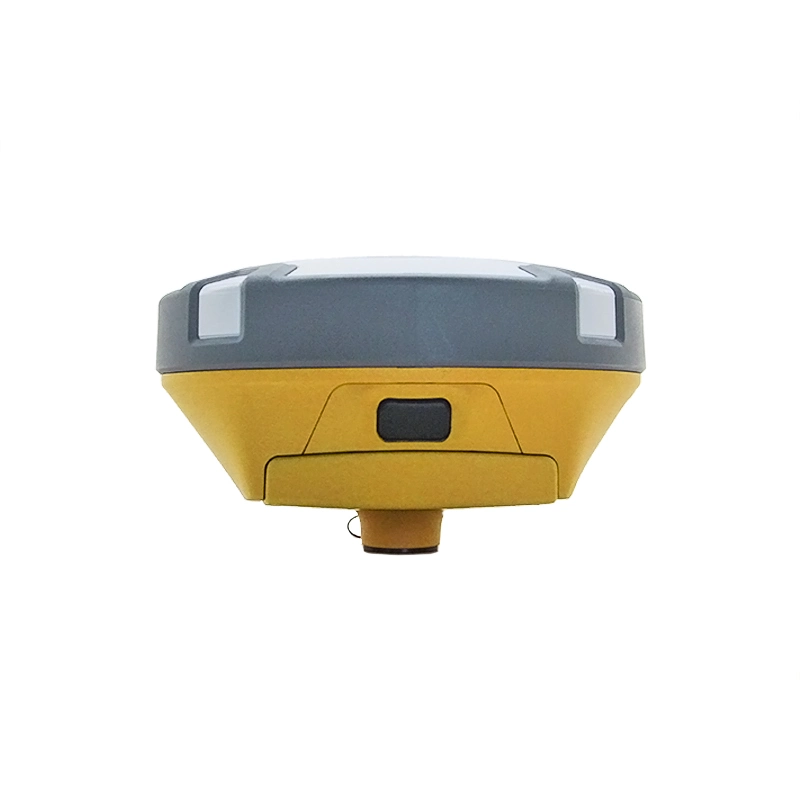

| Model | V90 | ||
| System Configuration | Data storage | 8GB Internal storage (Support up to 32GB external SD card) Record GNS and RINEX format simultaneously | |
| Data Formats | 1Hz positioning output, up to 50Hz | ||
| CMR: CMR, CMR+, sCMRx input and output | |||
| RTCM: RTCM 2.1, 2.2,2.3, 3.0, 3.1, 3.2 input and output | |||
| Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS | |||
| Navigation outputs binary: GSOF | |||
| Satellite Signals Tracked Simultaneously | Channels | 660 | |
| BDS | B1,B2 | ||
| GPS | Simultaneous L1C/A, L2C, L2E, L5 | ||
| GLONASS | Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P | ||
| SBAS | Simultaneous L1 C/A, L5 | ||
| GALILEO | Simultaneous L1 BOC, E5A, E5B, E5AltBOC | ||
| Static and Fast Static GNSS Surveying | Horizontal | 2.5mm+0.5ppm RMS | |
| Vertical | 5mm+0.5ppm RMS | ||
| Post Processing Kinematic (PPK / Stop & Go) GNSS Surveying | Horizontal | 1cm+1ppm RMS | |
| Vertical | 2.5cm+1ppm RMS | ||
| Initialization time | Typically 10 minutes for base while 5minutes for rover | ||
| Initialization reliability | Typically > 99.9% | ||
| Network RTK | Horizontal | 8mm+1ppm RMS | |
| Vertical | 15mm+0.5ppm RMS | ||
| Initialization time | Typically < 8seconds | ||
| Initialization reliability | Typically > 99.9% | ||
| Code Differential GNSS Positioning | Horizontal | 25cm+1ppm RMS | |
| Vertical | 50cm+1ppm RMS | ||
| SBAS | 0.50m Horizontal, 0.85m Vertical | ||
| Power and Battery | Power | 6V to 28V DC external power input,Power consumption ≤3.5W | |
| Internal battery | Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery | ||
| Internal battery life | Static 12hours | ||
| RTK rover (UHF/GPRS/3G) 10 hours | |||
| RTK base more than 8 hours | |||
| I/O Interface | 1 xBluetooth, NFC ,1 x standard USB2.0 port ,1 x TNC antenna connector,1 x RS232 serial port ,1 x DC power input (5-pin) ,1 x MicroSD card port | ||
| Physical | Dimensions (W x H) | 153mm x 83mm (6.02inch x 3.27inch) | |
| Weight(without internal battery) | 950g (2.09lb) | ||
| Operating temperature | -40ºC to +65ºC (-40ºF to +149ºF) | ||
| Storage temperature | -55ºC to +85ºC (-67ºF to +185ºF) | ||
| Humidity | 100%, considering | ||
| Water/dustproof | IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft). | ||
| Shock and vibration | Designed to survive a 3m(9.84ft) natural fall onto concrete. | ||
