Basic Info.
Model NO.
DL-WIFI-009
Base Antenna
Directional Antenna
Nature of Operation
Transmitting Antenna
Sturcture Form
Wire Antenna
Dimensionality
Two-Dimensional Antenna
Lead Time
3-7 Days
Sample Time
1-3 Days
Range of Receiving Frequency
2400~2500 , 4950~5850
Radiation
Omnidirectional
Polarization
Vertica
Connector Type
SMA Straight Male Head
Transport Package
Polybag, Paper Cartoon
Origin
China
HS Code
8517707090
Production Capacity
35000/Day
Product Description

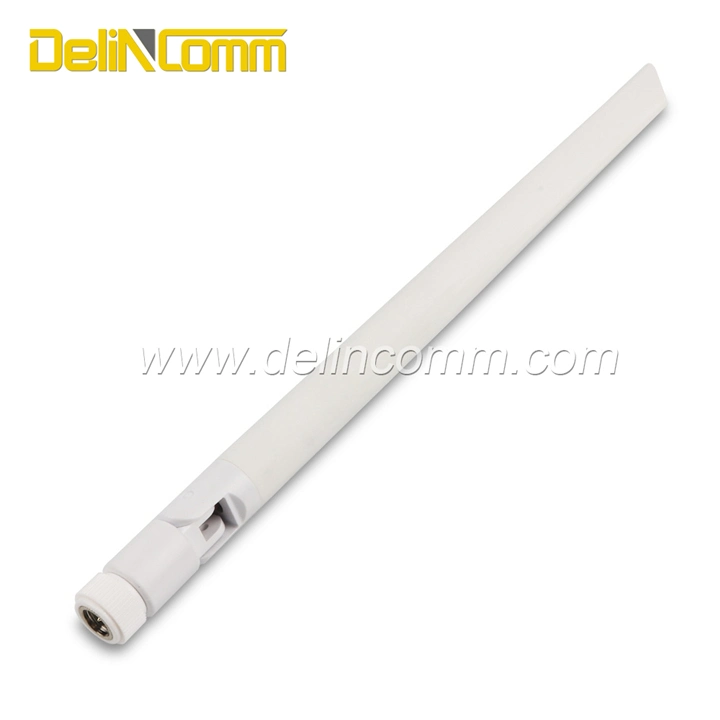

High Quality Antenna 2.4G&5.8G Collapsible Rod Antenna 2.4G&5.8G Rod Antenna Characteristics
| NO. | Item | Specifications |
| 1 | Range of Receiving Frequency | 2400~2500 / 4950~5850 MHz |
| 2 | Band Width | ≥100MHz |
| 3 | V.S.W.R(in Center Frequency) | ≤2.5 |
| 4 | Gain (Zenith)(dBi typ) | >2.0 |
| 5 | Operating Temperature | -45ºC~+85ºC |
| 6 | Radiation | Omnidirectional |
| 7 | Power Capacity | 50 |
| 8 | Polarization | Vertica |
| 9 | Connector Type | SMA straight male head |
| 10 | Size | Φ10x109mm |
| 11 | Color | white |
