Model NO.
DL-GPS-019
Base Antenna
High Gain Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Surface Antenna
Dimensionality
One-Dimensional Antenna
Size
48.2*36.8*17mm
Connector
Fakra Blue Straight Female Head
Color
Black
Cable
Rg174
Weight
110g
Mounting
Magnetic
Transport Package
Polybag, Paper Cartoon
Origin
Guangzhou
HS Code
8517707090
Production Capacity
100000/Day

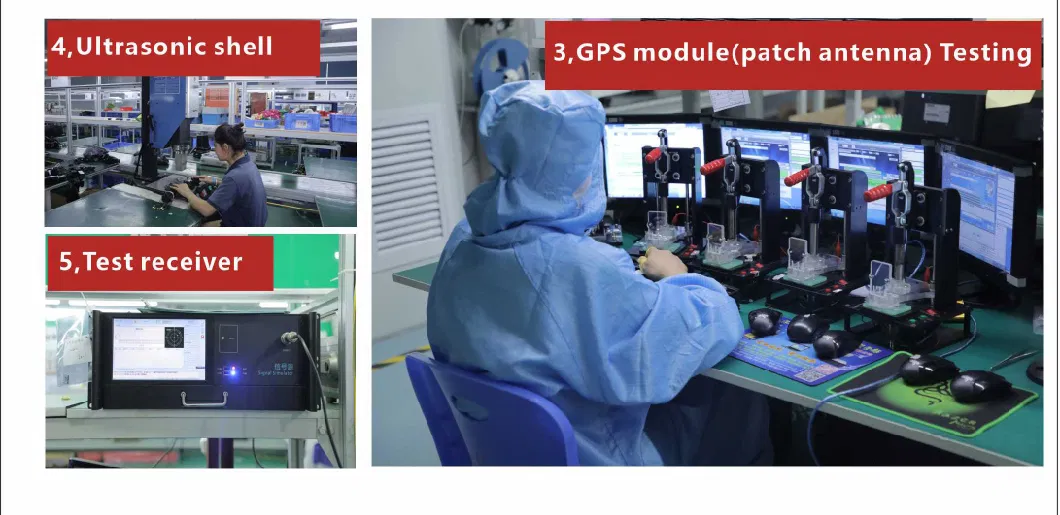

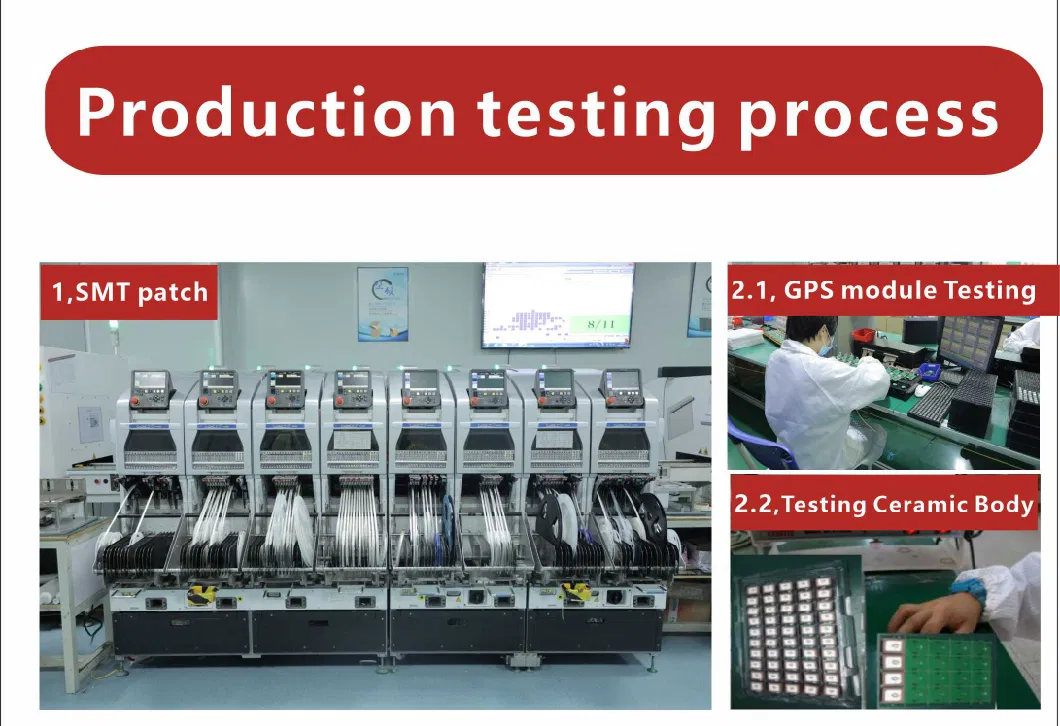

Product Description
1. Product Introduce
GMOUSE external antenna, is a support Beidou two generation (B1) /GPS (L1) dual-mode active receiving antenna. The built-in high performance dual mode (BD2/GPS) receiving module, ceramic antenna, low noise amplifier. The plastic shell, the waterproof design. The product has the advantages of small volume, convenient installation and use.
2. Appearance
3. Operating Condition
Temperature :-40ºC~+80ºC
Humidity:95%~100%
4. storage condition
Temperature:-45ºC~+85ºC
Humidity:95%~100%
Antenna performance
Amplifier

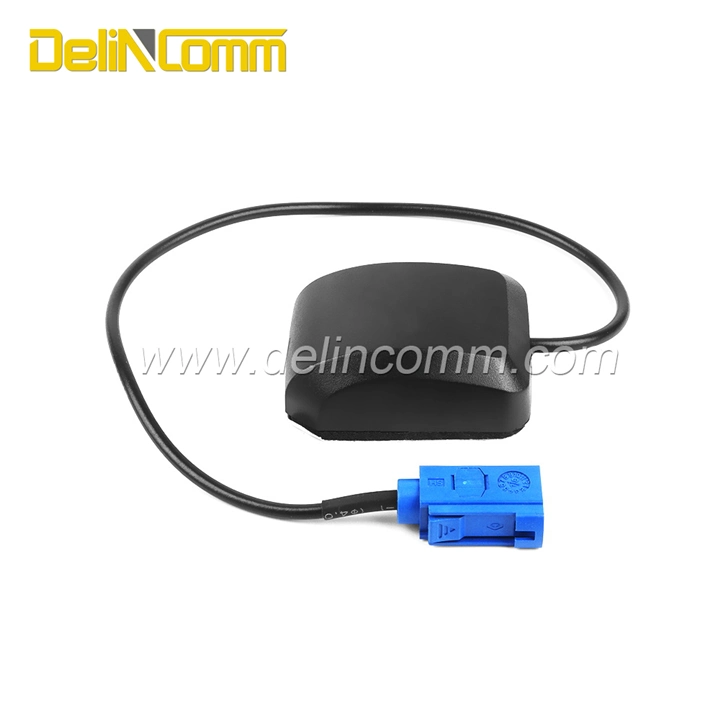

5. Antenna Picture
GMOUSE external antenna, is a support Beidou two generation (B1) /GPS (L1) dual-mode active receiving antenna. The built-in high performance dual mode (BD2/GPS) receiving module, ceramic antenna, low noise amplifier. The plastic shell, the waterproof design. The product has the advantages of small volume, convenient installation and use.
2. Appearance
| External dimension | 48.2*36.8*17mm | Mounting | magnetic |
| Weight | <110gram | connector | FAKRA Blue Straight female head |
| Shell Color | Black | Cable | RG174 5 meters |
Temperature :-40ºC~+80ºC
Humidity:95%~100%
4. storage condition
Temperature:-45ºC~+85ºC
Humidity:95%~100%
Antenna performance
| NO | Item | characteristic | (environmental test error) |
| 1 | Receiving frequency(MHz) | 1600±5&1575±3 | ±2.5 |
| 2 | center frequency (30*30m)(MHz) | 1600&1575 | ±3.0 |
| 3 | tape width(MHz) | ≥10 | |
| 4 | standing-wave ratio (SWR) | ≤2.0 | |
| 5 | Gain (dBi) | 3 | ±0.5 |
| 6 | axial ratio (dB) | 3.0 | ±0.2 |
| 7 | Polarization | right-handed circular polarization | ---- |
| 8 | characteristic impedance (Ω) | 50 | ---- |
| 9 | temperature coefficient of frequency(ppm/ºC) | 0±10 | ---- |
| NO | project | characteristics |
| 1 | frequency range | 1575±3&1600±5MHz |
| 2 | amplifier gain | 26±3dB |
| 3 | standing-wave ratio (SWR) | ≤2.0 |
| 4 | noise factor | ≤2.0 |
| 5 | direcy current | ≤20mA |
| 6 | direct voltage | 3~5v |
