Basic Info.
Packaging & Delivery
Product Description
| GPSGlonass Antenna | |
| GL-DY003 | |
| Electrical Index | |
| Frequency-MHz | 1575.42±1/1601-1610 |
| VSWR | <1.5 |
| Nominal Impedance-Ω | 50 |
| Polarization | RHCP, |
| Axial Ratio | 3dB(max) |
| LNA Gain | 28±2dB |
| Noise Figure | <1.5 |
| Supply Voltage | 3-5V DC |
| Current Consumption | 5-15mA |
| Mechanical Index | |
| Cable Length | RG174,5m |
| Connector | Fakra C blue or SMA male |
| Antenna Dimension-mm | 46.6*14.5 |

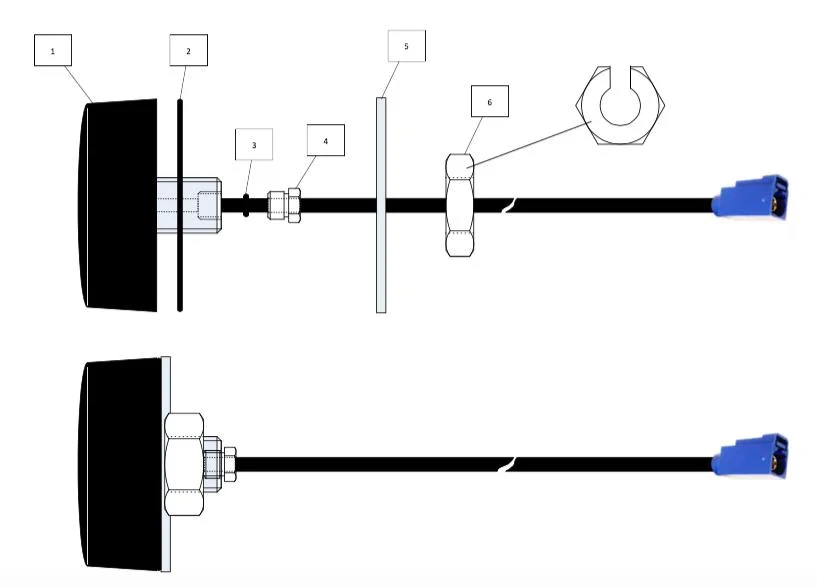

| Installation Way | Screw |
| Ingress Protection | IP65~IP67(exclude cable outlet) |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
| Environmentally Friendly | ROHS Compliant |
| Temperature-ºC | -40~+85 |
| Humidity-% | 5~95 |
Product Description

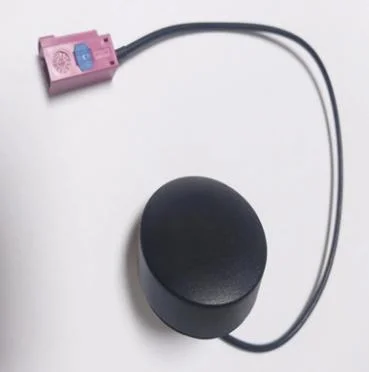

Introducing the RG174 Gpsglonass Antenna with SMA Male or Fakra C Blue Connector, the best design for sale from ZHENGZHOU LEHENG ELECTRONIC TECHNOLOGY CO., LIMITED. This GPS/Glonass Antenna is perfect for car antenna applications, providing reliable and accurate GPS tracking for your vehicle.
With a working wavelength of Microwave, this antenna ensures optimal performance and signal reception. The 1575.42MHz GPS Internal Antenna and 1602MHz GPS Glonass Internal Antenna guarantee precise positioning and navigation.
The RG174 Gpsglonass Antenna comes with a 5m cable made of high-quality RG174 material, ensuring durability and flexibility. The screw installation feature allows for easy and secure mounting.
Customization is available, allowing you to add your own logo and design to the mass-produced antennas. This personalization option adds a unique touch to your GPS tracking device.
Ordering is convenient with multiple payment options, including T/T, Paypal, and Western Union. Our delivery time is quick, with samples ready in 3-5 working days and quantities below 5K delivered within 10-15 working days.
When it comes to warranty, we offer one year for antennas and half a year for assembly cables and connectors. This ensures peace of mind and customer satisfaction.
Visit our company, ZHENGZHOU LEHENG ELECTRONIC TECHNOLOGY CO., LIMITED, at any time to see our range of high-quality antennas and other electronic products. We welcome you with open arms.
