Basic Info.
Function Type
POS for Transfering, POS for Consuming
Network Management
Support Network Management
CPU
Quad-Core 1.35GHz
System
Android
Model No.
Hz-CS30
Processor
Qualcomm Octa-Core Arm Cortex-A53 1.8GHz
OS
Android 10.0
Memory
2g RAM + 16GB ROM(Can Be Upgraded)
Display
6.0 Inch TFT IPS LCD, Resolution 1440*720
Communication
2g, 3G, 4G, Bluebooth 4.2
Camera (Rear)
5MP Af Camera with LED Flash
Wi-Fi
2.4GHz/5GHz, 1eee 802.11 a/B/G/N/AC
Charger
Input: AC100-240V, Output: 5V/2A
Optional Configurations
Camera (Front) /Professional Scanner/Cradle/E-SIM
Contactless Card Reader
Supports 14443A/ 14443b
Transport Package
Plastic Film+Harden Carton Box+Plywood Case, Stand
Specification
206mmX84mmX32mm
Trademark
Customized
Origin
Shenzhen, China
HS Code
8470501000
Production Capacity
10000PCS/Month
Product Description
High-Speed Thermal Printer Handheld POS Terminal Support GPS

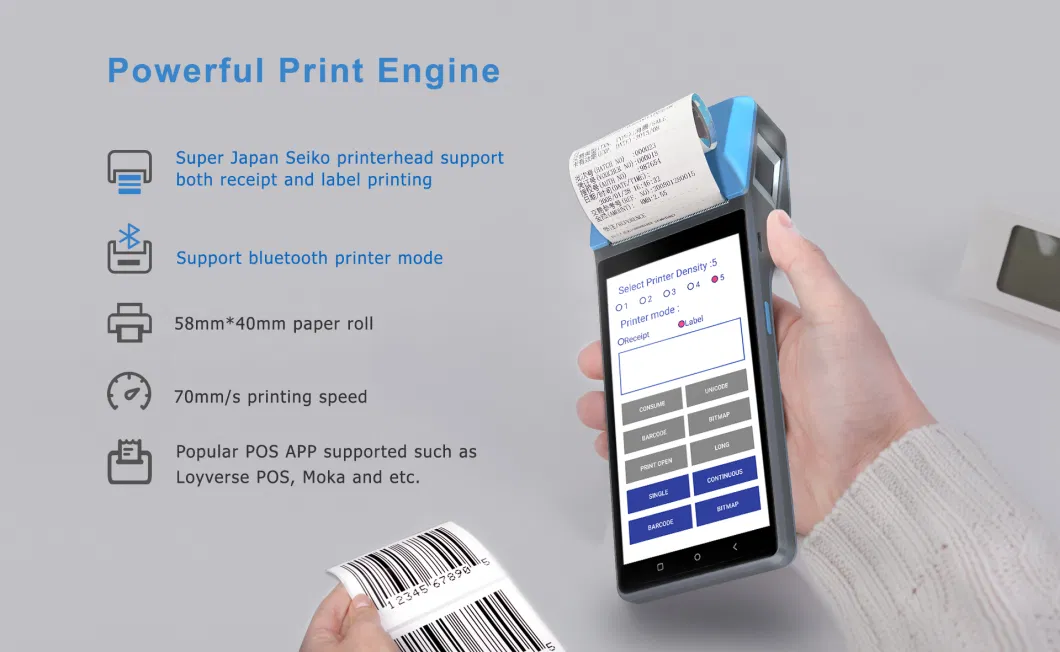

CS30 Pro is A Powerful Android 10.0 Handheld POS with Qualcomm Octa-Core ARM Cortex-A53 1.8GHz,Powerful Print Engine-Japan Seiko printerhead support both receipt and label printing,Super NFC for Omni-scenario,you can find more details as below:
Customer visit
Smart POS terminal -Hongzhou's advantages:
1.Quick Response and quickly action, your inquiry will be replied in 24 hours.
2.Competitive price directly from in housing plant.
3.High quality due to first-hand control in factory.
4.OEM/ODM:custom fabrication according to your drawings or samples.
5.Flexibility: small orders are acceptable for quick delivery and help you reduce the stock cost.
6.Quick delivery and overseas Kanban warehouse service. We have overseas warehouses located in Hongkong and London to support overseas clients.
CS30 Pro is A Powerful Android 10.0 Handheld POS with Qualcomm Octa-Core ARM Cortex-A53 1.8GHz,Powerful Print Engine-Japan Seiko printerhead support both receipt and label printing,Super NFC for Omni-scenario,you can find more details as below:
Highlights
- Qualcomm Octa-Core ARM Cortex-A53 1.8GHz;
- Safedroid OS (based on Android 10.0);
- Massive memory: 2G RAM + 16G ROM;
- 6.0 inch TFT IPS LCD, resolution 1440*720;
- Full bands for global coverage: 4G/3G/2G, WLAN, Bluetooth, VPN;
- Camera for quickly QR code scan & Symbol 2D scanner as option;
- The grand 7.6V/2600mAh battery + extraordinary power management design ensures a full day duration;
- Super NFC for full scenarios such as transportation, logistic, and ID control;
- 58mm thermal receipt printing/label printing;

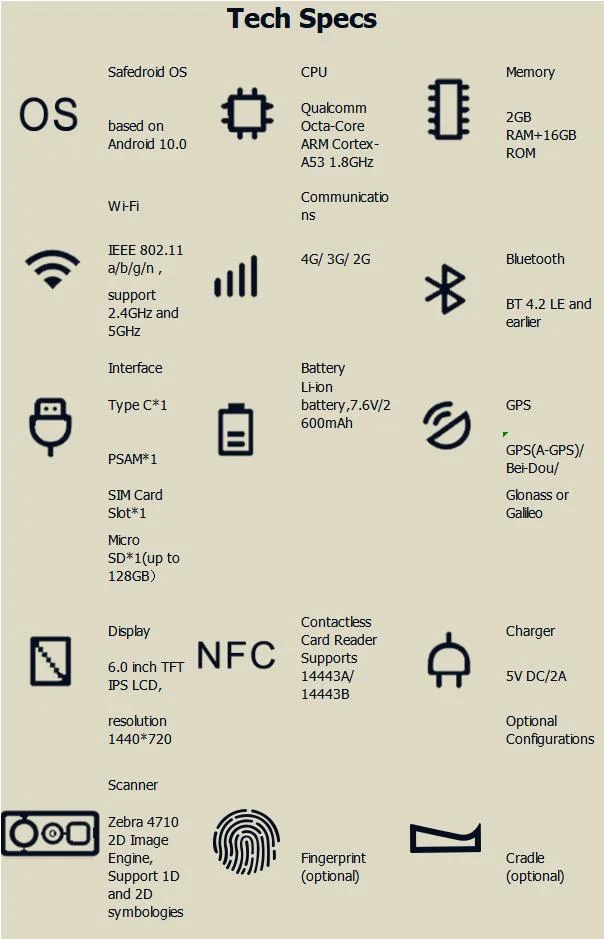

Specifications
nroid Powerful Handheld P
Basic Characteristics | OS | Safedroid OS (based on Android 10.0) |
CPU | Qualcomm Octa-Core ARM Cortex-A53 1.8GHz | |
ROM | 16GB ROM EMMC | |
RAM | 2G RAM LPDDR3 | |
Display | 6.0 inch TFT IPS LCD, resolution 1440*720 | |
Panel | Ultra sensitive capacitive touch screen, can work with gloves and wet fingers | |
Dimensions | 215mmX81mmX17mm (max 51mm) | |
Weight | 300g (Battery included) | |
Keys | Physical keys: power on/off, Volume + /-, quick scan key | |
Input | Chinese/English, and supports handwriting and soft keyboard | |
Radio Communication | WIFI | IEEE 802.11 a/b/g/n ,support 2.4GHz and 5GHz |
Bluetooth | BT 4.2 LE and earlier | |
4G | European version(Default): FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28 TDD-LTE: B38/B39/B40/B41 American version(Optional): FDD-LTE: B2/B4/B5/B12/B13/B17/B25/B26 TDD-LTE: B38/B40/B41 | |
3G | European version(Default): WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39, American version(Optional): WCDMA: B2/B4/B5 | |
2G | GSM/GPRS/EDGE: 850/900/1800/1900MHz | |
NFC | Contactless Card reader | Supports 14443A/ 14443B |
Expansion and peripherals | Printer | High-Speed Thermal Printer ; Label printing; 58mm printing paper ; 40mm paper roll |
Rear Camera | 5MP AF Camera with LED flash | |
Satellite Positioning | Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo | |
Audio | Speaker | |
Interfaces | Micro SD Card Slot | 1 Pcs support up to 128GB |
SIM Card Slot | 1 Pcs Micro SIM | |
PSAM Card Slot | 1 Pcs Conforms to ISO7816 standard | |
USB Port | 1 Pcs Type C USB | |
Power | Battery | Li-ion battery, 7.6V/2600mAh |
Charging Port | Type C USB Port, 5V DC/2A | |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C | |
Humidity | 5% to 95% Relative Humidity, Non-Condensing | |
Certification | Electromagnetic | CE, Rohs, FCC |

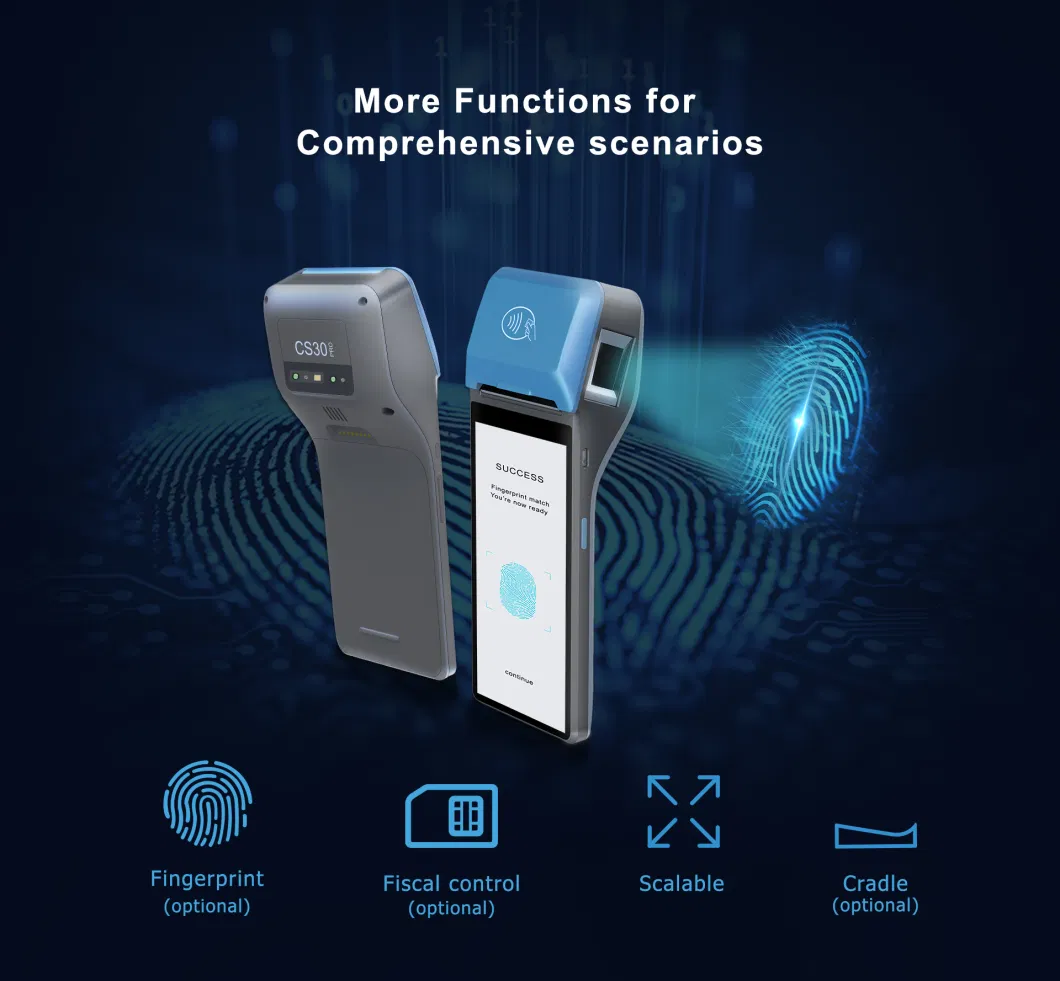

Optional | Fingerprint | Semiconductor capacitance,18mm x 12.8mm imaging area 256 x 360 pixel array, Crossmatch FBI certified 508dpi |
Fiscal Module | Russian Format | |

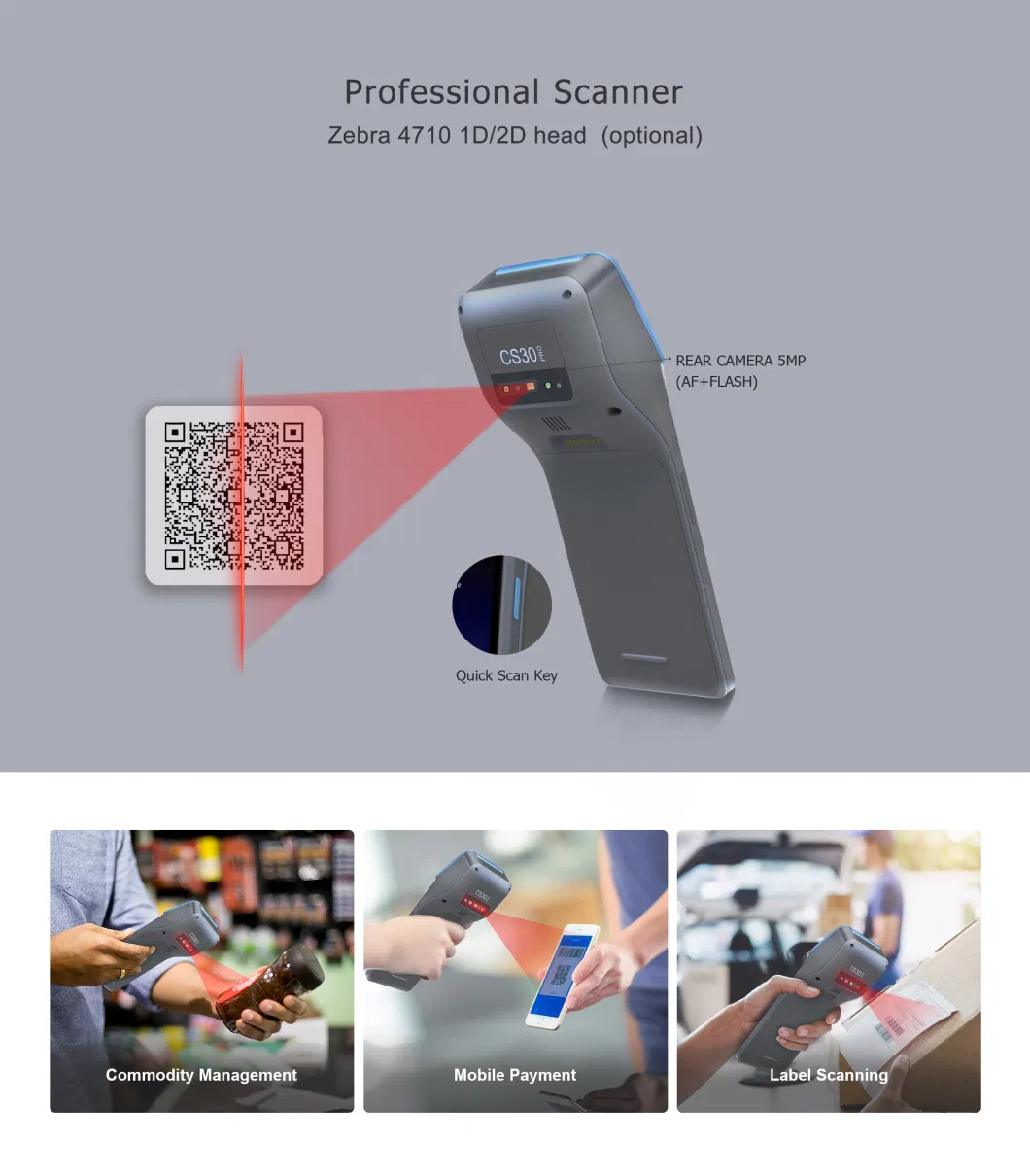

Barcode Scanner | Symbol 4710 2D Image Engine, Support 1D and 2D symbologies | |
Label Printer Paper |
