Basic Info.
Model NO.
TPW-28GPSA-1575-SM
Transport Package
Standard Export Packing Cartons
Trademark
Topwave
Origin
China
Product Description
| Products Description |

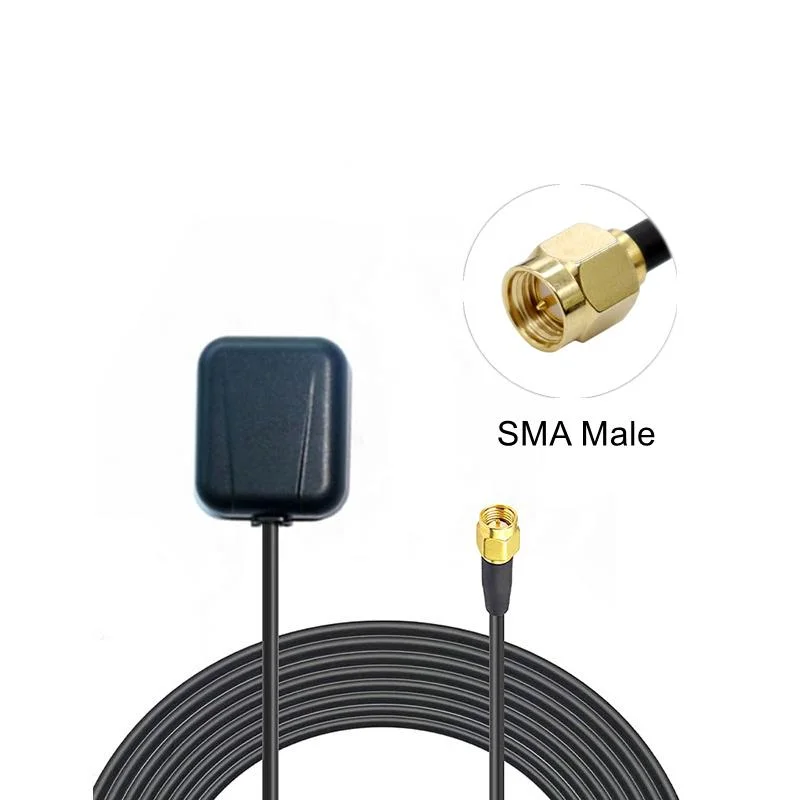

GPS Satellite Positioning Antenna(Center Frequency
1575.42MHz, SMA Male)
A GPS antenna is a radio frequency antenna that provides connectivity with the Global Positioning System , a proprietary, satellite-based radio navigation system designed, created, and owned by government . When appropriately connected to a GPS transceiver, the GPS antenna is able to transmit and receive the specific radio frequency signals needed for a GPS device to perform its time, location, and navigation functions. In performing this function GPS antennas become the key point of interaction between the satellites which form the GPS Space Segment and the GPS User segment (receivers).
| Electrical & Mechanical Specifications |
| Electrical Specifications | |
| Model No. | TPW-28GPSA-1575-SM |
| Center Frequency (MHz) | 1575.42±2MHz |
| Bandwidth (MHz) | 10 |
| Gain (dBi) | 28 |
| VSWR | ≤1.5 |
| Input Impedance | 50 Ω |
| Consumption Electric | <10mA |
| Polarization Intensity | R.H.C.P |
| Supply Voltage | DC3.3-5.0V |
| The Sound Coefficient | ≤1.5dB |
| Axial Ratio | 3dB |
| Max. Input Power | 50 W |
| Mechanical Specifications | |
| Connector | SMA Male |
| Cable Length(mm) | 60 |
| Cable Type | RG174 |
| Weight | 20.00g (approx) |
| Operating Temperature | -40°C to +85°C |
| Recommended Product |
N Female MIMO Omni Ceiling Antenna LTE RF Log Periodic Antenna for Small Cells Signal Directional Panel Antenna
| About Us |
Hefei Topwave Telecom Co.,Ltd, is a worldwide leading provider of comprehensive RF passive equipment and high-performance wireless infrastructure solutions focused on innovation and differentiation at the edge of wireless telecommunication networks.
Topwave Telecom established in 2007, located in Hefei National High-tech Zone. With the decades of development, we have our own R&D center and manufacturer center.We are OEM and ODM service provider and network operators to improve performance and reduce operating expenses via comprehensive set of products and solutions. Topwave has more than 10 years experience to export goods to all over the world, the RF passive devices like power splitter, coupler, filter, multiband combiner etc, which widely used for DAS, IBS, BTS and BDA.
Topwave persist to provide excellent products and service for every client as always. Our mission is to make the world connected, make the world small, and make the world smart. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.
| Main Products |
| Application |
| Packing Details |
| FAQ |
Q: Can I get smaples for validation test?
A: Let's talk, some samples are free but shipping charge should be on your account.
Q: What is your MOQ?
A: We don't have MOQ limit.
Q: What is your payment terms?
A: We accept Western Union, T/T, Paypal and so on.
Q: What is your delievry time?
A: Normally around 2 weeks, TBD for massive quantity or customized products.
