Basic Info.
Model NO.
CS30
Function Type
POS for Transfering, POS for Consuming
Network Management
Support Network Management
CPU
Octa-Core 1.8GHz
System
Android 10.0
Display
6.0 Inch TFT IPS LCD, Resolution 1440*720
Camera
5MP Camera with LED Flash and Auto-Focus
Card Reader
Magcard/ IC/ Contactless
Satellite Positioning
GPS
Radio Communication
WiFi/ Bluetooth/ 4G/ 3G/ 2g
Battery
Li-ion Battery ,7.6V /2600mAh
Specification
215*81*17mm
Origin
Shenzhen, China
HS Code
8470900000
Production Capacity
20000PCS/Month
Product Description
6.0inch Ultrathin Thermal Printer LCD Screen Handheld POS Terminal with GPS
Shenzhen Grandtop Electronics Co.,Ltd was founded in 2005, ISO9001 2015 certified and China National Hi-tech enterprise. We are leading global self-service Kiosk, POS terminal manufacturer and solutions provider.
Features
Specifications
Grandtop Smart POS Terminal Advantages
Shenzhen Grandtop Electronics Co.,Ltd was founded in 2005, ISO9001 2015 certified and China National Hi-tech enterprise. We are leading global self-service Kiosk, POS terminal manufacturer and solutions provider.
Features
Specifications
| Basic Characteristics | OS | Safedroid OS (based on Android 10.0) |
| CPU | Qualcomm Octa-Core ARM Cortex-A53 1.8GHz | |
| ROM | 16GB ROM EMMC | |
| RAM | 2G RAM LPDDR3 | |

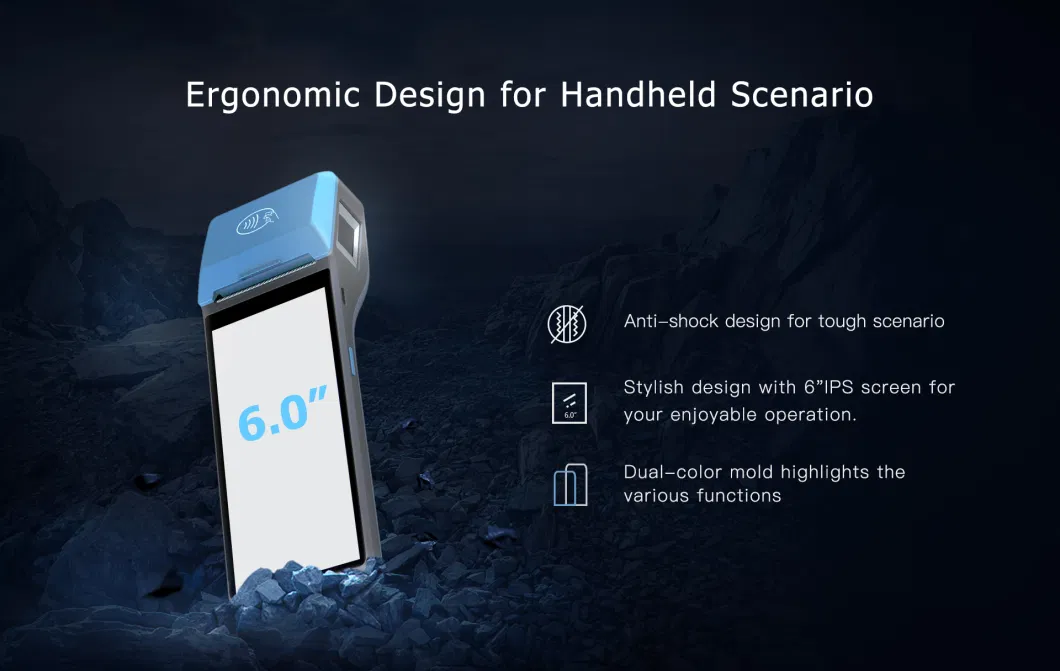

| Display | 6.0 inch TFT IPS LCD, resolution 1440*720 | |
| Panel | Ultra sensitive capacitive touch screen, can work with gloves and wet fingers | |
| Dimensions | 215mmX81mmX17mm (max 51mm) | |
| Weight | 300g (Battery included) | |
| Keys | Physical keys: power on/off, Volume + /-, quick scan key | |
| Input | Chinese/English, and supports handwriting and soft keyboard | |
| Radio Communication | WIFI | IEEE 802.11 a/b/g/n ,support 2.4GHz and 5GHz |
| Bluetooth | BT 4.2 LE and earlier | |
| 4G | European version(Default): FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28 TDD-LTE: B38/B39/B40/B41 American version(Optional): FDD-LTE: B2/B4/B5/B12/B13/B17/B25/B26 TDD-LTE: B38/B40/B41 | |
| 3G | European version(Default): WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39, American version(Optional): WCDMA: B2/B4/B5 | |
| 2G | GSM/GPRS/EDGE: 850/900/1800/1900MHz | |
| NFC | Contactless Card reader | Supports 14443A/ 14443B |

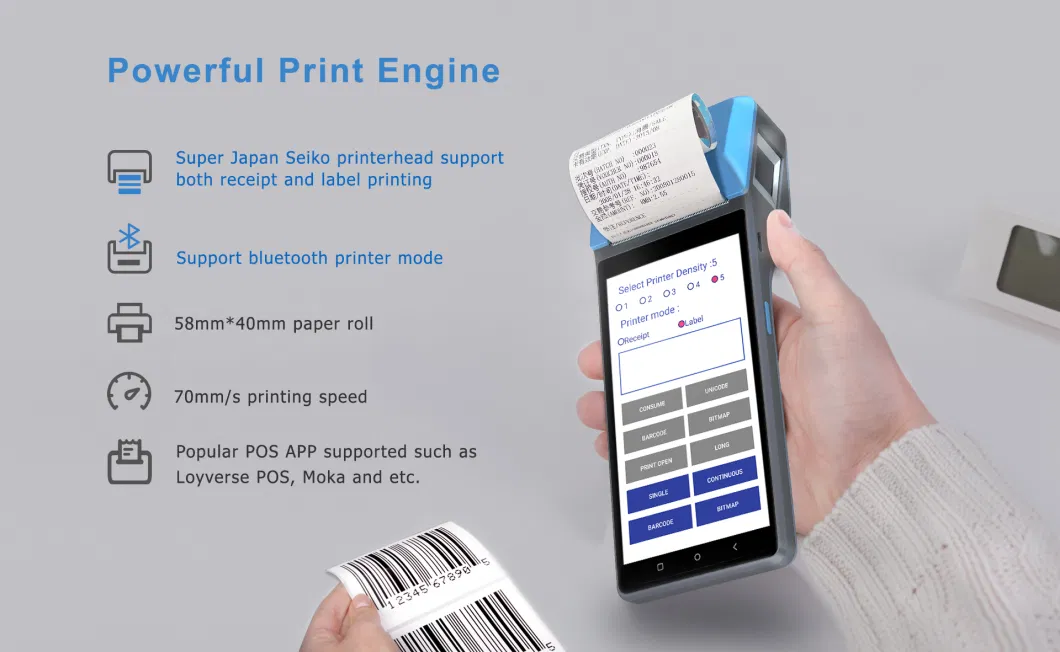

| Expansion & Peripherals | Printer | High-Speed Thermal Printer ; Label printing; 58mm printing paper ; 40mm paper roll |
| Rear Camera | 5MP AF Camera with LED flash | |
| Satellite Positioning | Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo | |
| Audio | Speaker | |
| Interfaces | Micro SD Card Slot | 1 Pcs support up to 128GB |
| SIM Card Slot | 1 Pcs Micro SIM | |
| PSAM Card Slot | 1 Pcs Conforms to ISO7816 standard | |
| USB Port | 1 Pcs Type C USB | |
| Power | Battery | Li-ion battery, 7.6V/2600mAh |
| Charging Port | Type C USB Port, 5V DC/2A | |
| Environment | Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C | |
| Humidity | 5% to 95% Relative Humidity, Non-Condensing | |
| Certification | Electromagnetic | CE, Rohs, FCC |
| Optional | Fingerprint | Semiconductor capacitance,18mm x 12.8mm imaging area 256 x 360 pixel array, Crossmatch FBI certified 508dpi |
| Fiscal Module | Russian Format | |

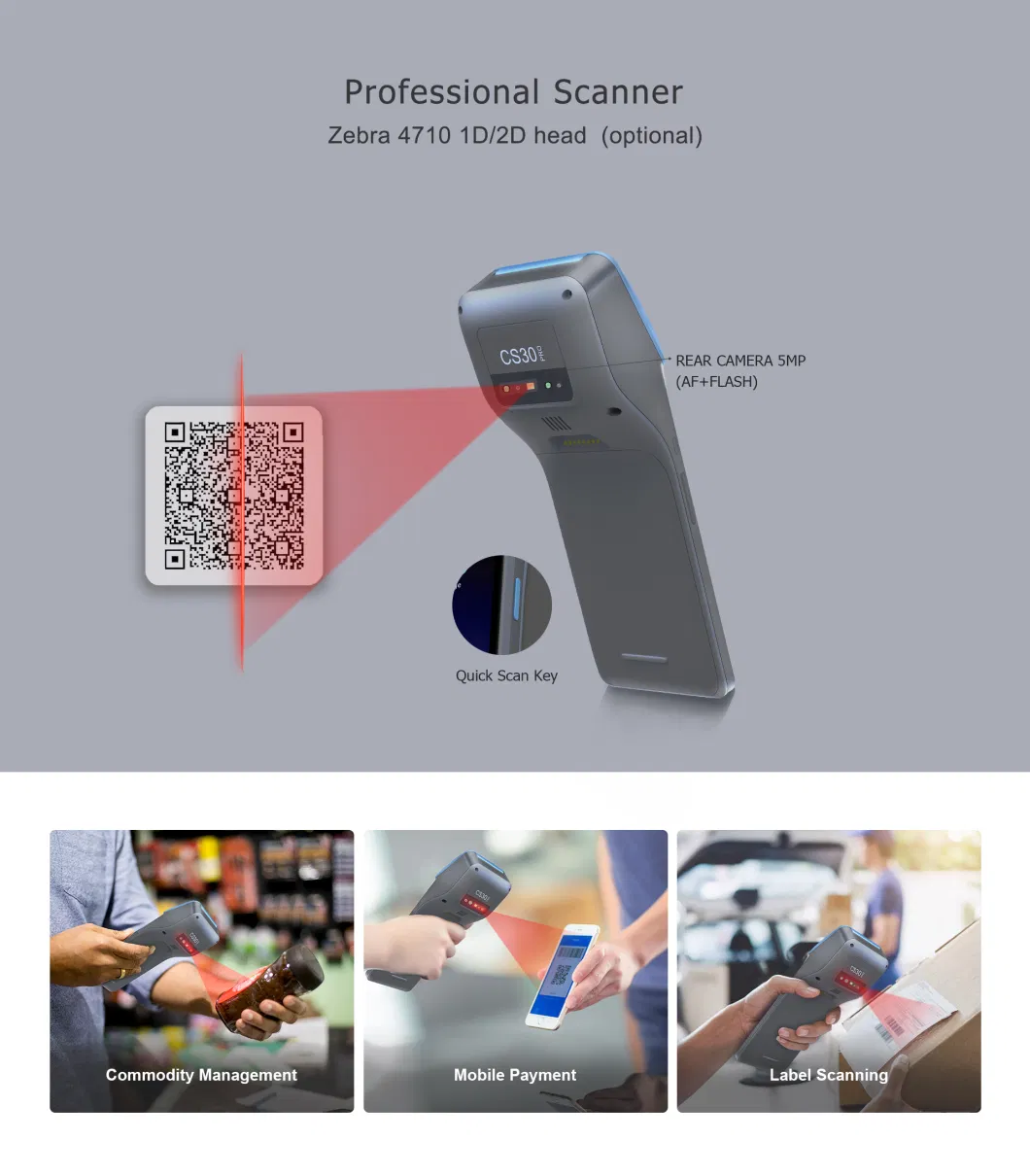

| Barcode Scanner | Symbol 4710 2D Image Engine, Support 1D and 2D symbologies |
