Product Description
Supply Ability Supply Ability
100000 Piece/Pieces per Month Long distance 10 km Antenna factory
Packaging & delivery
Packaging Details 1pieces/carton
Port: Shenzhen
Lead time:
| Quantity(pieces) | 1 - 2 | 3 - 100 | >100 |
| Lead time (days) | 7 | 9 | To be negotiated |
(i)Dielectric Antenna
Center Frequency(MHz):1590
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain >3dBi Based on 7cm×7cm ground plane
Gain Coverage >-4dBi at -90°<0 <+90°(over 75% Volume)
Polarization:RHCP
(ii)LTE Antenna
Frequency(MHz):690-960/1710-2700
VSWR ≤2.0
Gain(dBi):3
Max Input power(W):60
Input Impedance(Ω):50
Polarization :Vertical
(iii)LNA/Filter
LNA Gain (Without Cable) :28 dBi Typical
Noise Figure(dB):1.5
Filter Out Band Attenuation (f0=1590 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR <2.0
DC Voltage(V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current(mA):11 Max

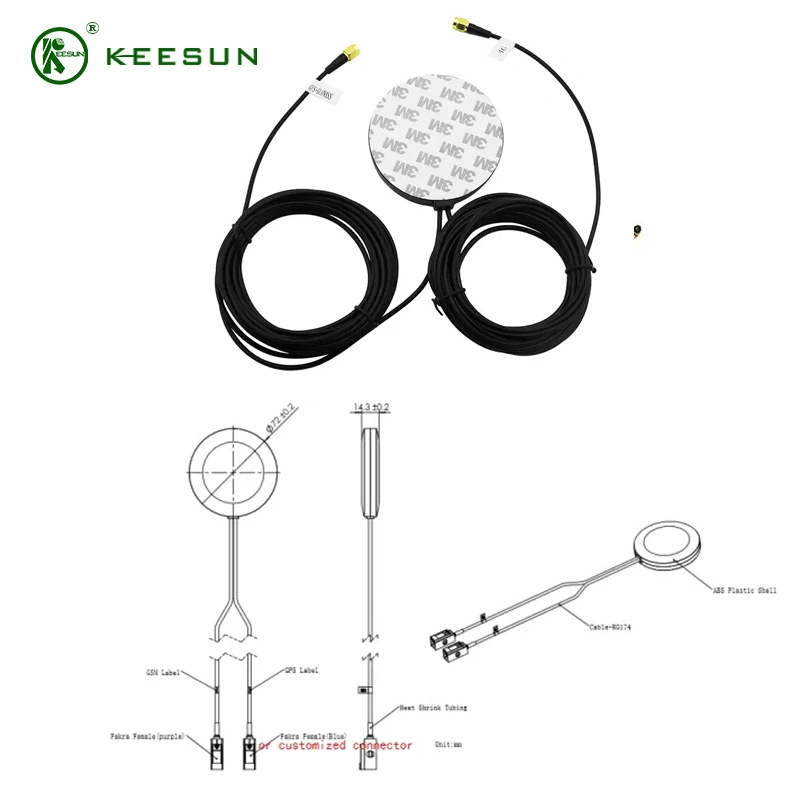

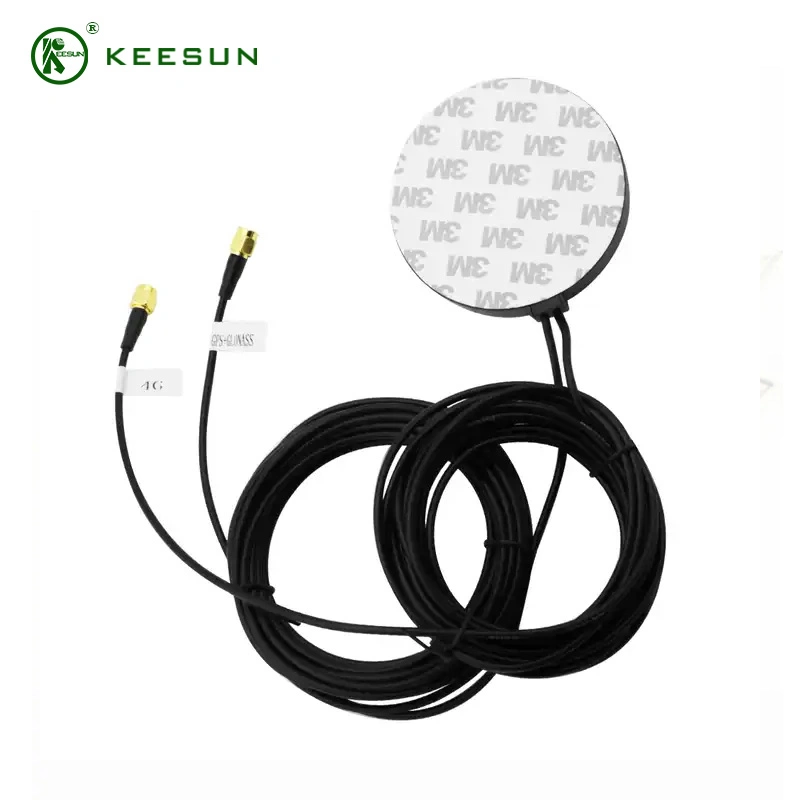

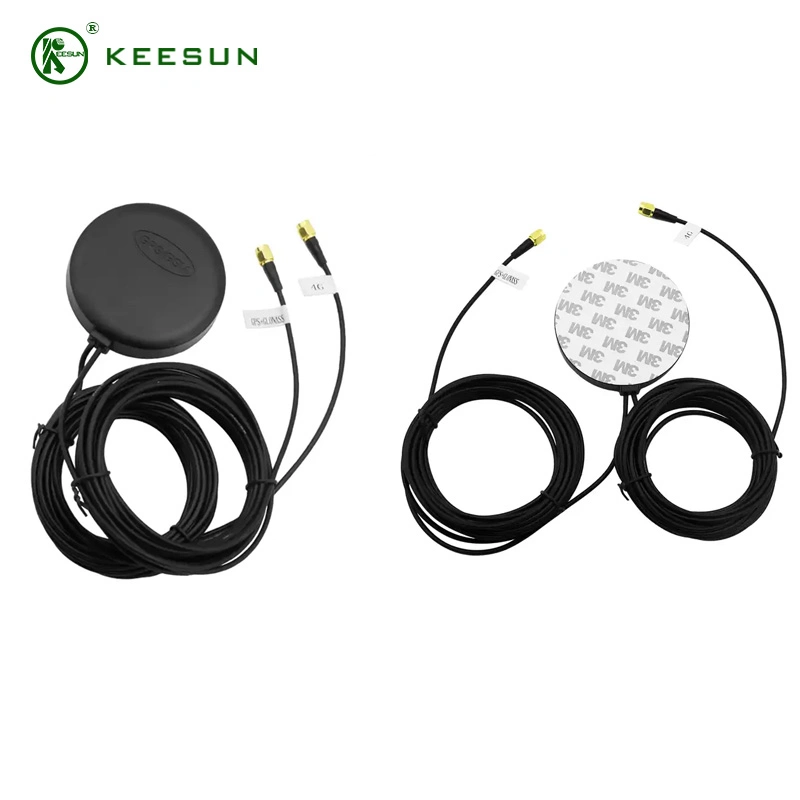

(iv)Mechanical
Weight(gram )<240
Size(mm):96×36×15
Cable GPS/GLONASS(m):RG174 2,5 etc.
LTE(m):RG174 2,5 etc.

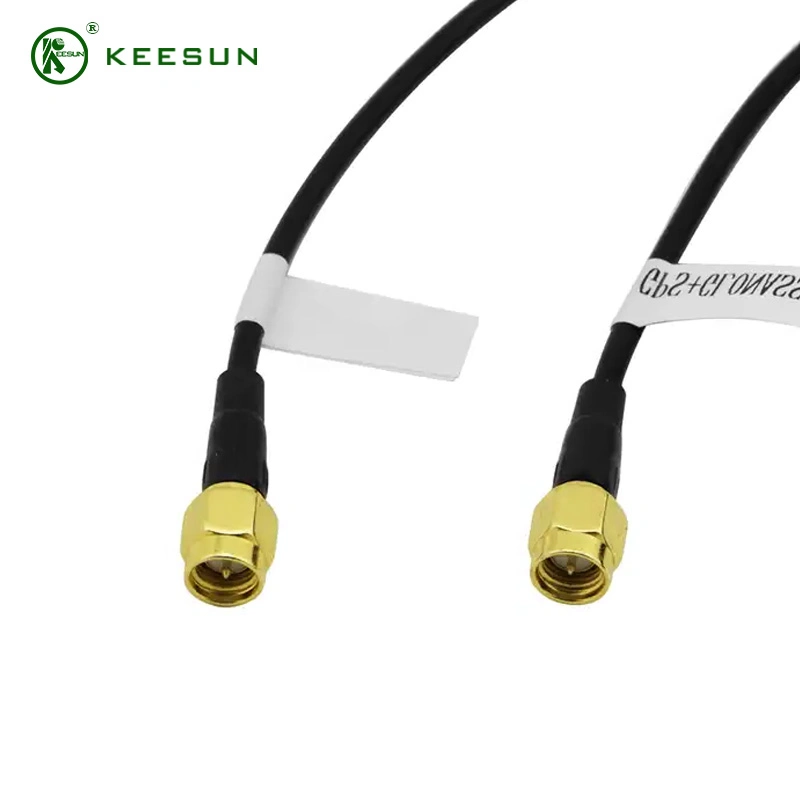

Connector GPS/GLONASS:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
LTE:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting:Adhesive/Magnetic
Housing:Black
(v)Environmental
Working Temp:-40ºC~+85ºC
Storage Temp:-45ºC~+100ºC
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity:Humidity95%~100%RH
Weatherproof:100%Waterproof
Packaging & Delivery Packing details:
1, p, pour standard packing: 1pcs connector put into a transparent polybag, every big polybag with a label. then put into a carton.
2, packing as buyer's option.
Delivery details:
1, the lead time for samples is 7~10 days, 10~15 days for the production.
2, for the shipping, the goods can be shipping by client's international express account like DHL,TNT,UPS,Fedex, or shipping by our forwarder.
Q:Are you a factory or a trading company?

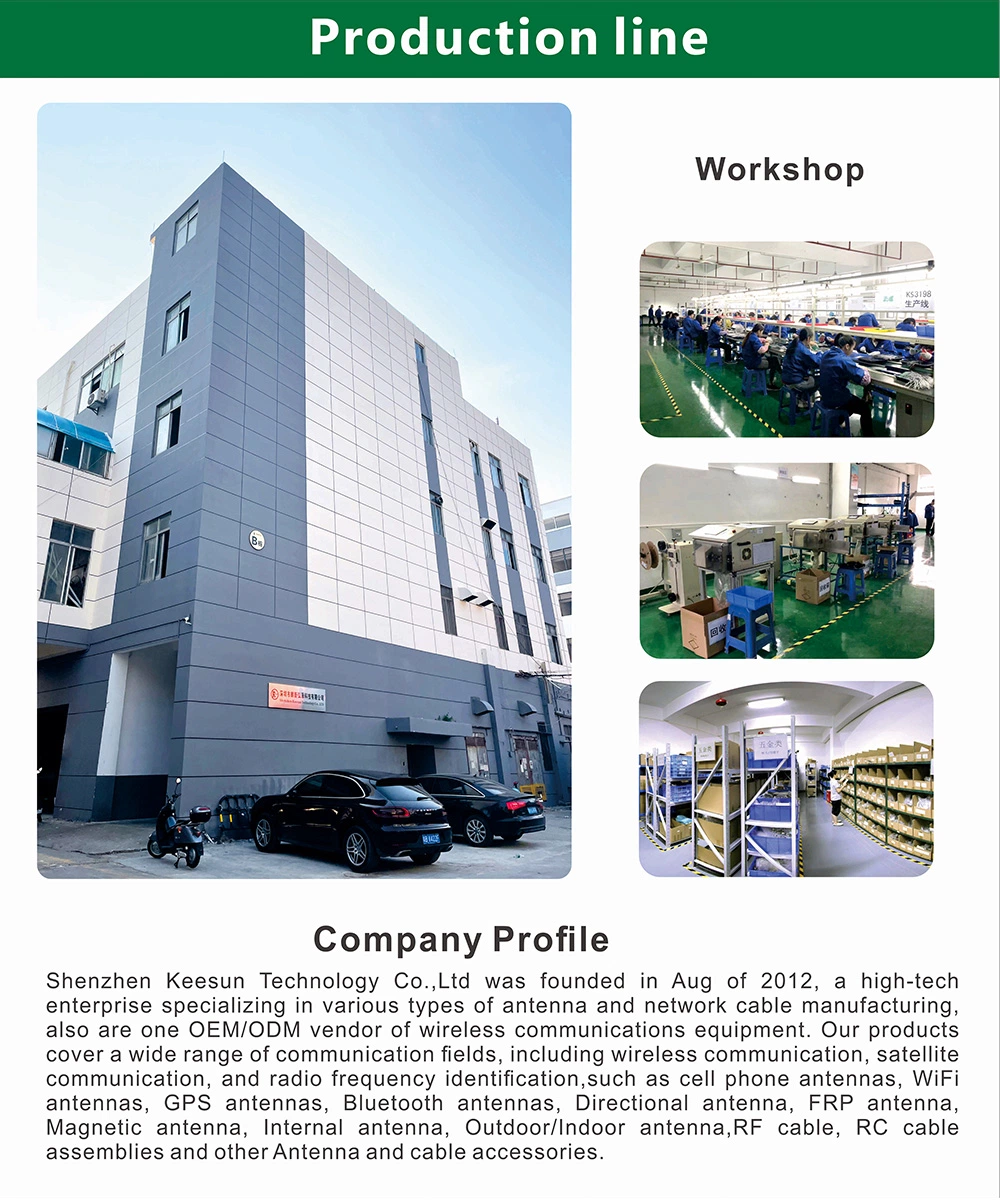

A:We are factory with 10 production line assembled workshop and a Injection molding Workshop,about 130 employees.
Q: Can I get some samples?
A: Yes, sample order is available, some samples are free. and it will be freight collect
payment.
Q:Is it customizable?
A:We can accept customization, but there is a certain MOQ; We have our own mold room, can provide mold business
Q : How long is your lead time?
A: Normally, our lead time is 10-15 days according to different products.
Q: What's your payment term?
A: We accept T/T and Paypal.
Q: Why choose our company?
A: 1. Professional manufacturer since 2011, provide various kinds of connectors and cable assembled
with connectors.
2. No MOQ demand.
3. Good quality, competitive price with best service.
4. Available for ODM/OEM order.
