Basic Info.
Model NO.
JCE605LMWM
Material
ABS
Directionality
Omnidirectional Antenna
VSWR
1.5~2
Base Antenna
High Gain Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Surface Antenna
Dimensionality
One-Dimensional Antenna
GPS Antenna Center Frequency
1575.42~1610MHz
Gain
28dB
Noise Figure
≤1.5dB
LTE
698-960MHz/1710- 2690MHz
WiFi MIMO Center Frequency
2400-2483.5MHz/4900 5825MHz
Type
Combination Antenna
Cable
Rg174
Connector
SMA Male
Supply Voltage
3~5VDC
Transport Package
Carton
Specification
GPS/LTE MIMO/WiFi *4
Trademark
jinchang
Origin
China
Production Capacity
1000PCS / Per Day
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 12.00cm
Package Gross Weight
1.000kg
Product Description
| Item | Specifications | | ||
| GNSS Antenna | Frequency Range | 1561.098~1606MHz | | |
| Polarization | RHCP | | ||
| Impedance | 50Ω | | ||
| Dimension | 25*25*4mm | | ||
| Gain | 28dB | | ||
| Noise Figure | ≤1.5dB | | ||
| Supply Voltage | 3~5VDC | | ||
| Current Consumption | <15mA | | ||
| V.S.W.R | <2.0 | | ||
| LTE Antenna MIMO | Frequency Range | 698~960MHz/1710~2690MHz/2900~3800MHz | | |
| V.S.W.R | <3.0 | | ||
| Polarization | Linear | | ||
| Gain | 4dBi | | ||
| Impedance | 50Ω | | ||
| WIFI Antenna MIMO | Frequency Range | 2400-2483.5MHz/4900 5825MHz | | |
| V.S.W.R | <3.0 | | ||
| Polarization | Linear | | ||
| Gain | 4dBi(Typ.) | | ||
| Impedance | 50Ω | | ||

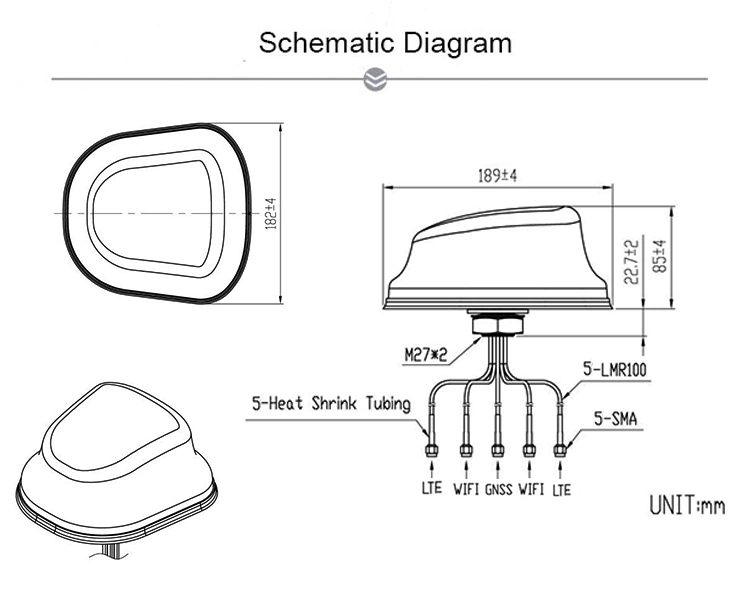

| Mechanical | Cable | RG58*4 & RG174*1 | | |
| Connector | SMA or others | | ||
| Material | PC/ABS | | ||
| Mounting Method | Screw | | ||
| Environmental | Operating Temperature | -40'C~+85C | | |
| Relative Humidity | Up to 95% | | ||
| Ingress Protection | IP67 (exclude cable outlet) | | ||
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | | ||
| Environmentally Friendly | ROHS Compliant | |||
Q: Are you a manufacturer or a trading company?
A: We have been professional antenna manufacturer for 20 years.
Q: Can I get one sample?
A: Yes, sample is for free.
Q: Have gps gsm combo antenna 100% assembles well in stock?
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 1-5 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A: T/T, Paypal, western union etc.
Q: Where is your factory located? Can I visit your factory?
A: Factory address: #398 Zhenye Road, Jiaxing Economic Development Zone, Nanhu District, China. Just call us, we will pick you up
with no delay.
Q: How long of the warraty?
A: One year and can repair for the whole life.
