Basic Info.
Model NO.
M68K
GPS
L1 C/a, L1c*,L2p(Y), L2c, L5
Glonass
L1, L2
Beidou
B1I, B2I, B3I, B1c, B2a, B2b*
Galileo
E1, E5a, E5b
Qzss
L1,L2,L5
Data Format
Nmea-0183
Correction I / O Protocol
Rtcm 2.X,Rtcm3.X
Data Update Frequency
5Hz
Single(RMS)
Horizontal:1.5m Vertical: 2.5m
Dgps(RMS)
Horizontal:0.4m Vertical:0.8m
Speed Accuracy(RMS)
0.03m/S
Bluetooth
V2.1+EDR / V4.0dual Mode
WiFi
802.11 B/G/N
Transport Package
High Quality Carton Package
Specification
50*55*38cm
Trademark
UNIQUENAV
Origin
Tianjin, China
Packaging & Delivery
Package Size
50.00cm * 55.00cm * 48.00cm
Package Gross Weight
23.000kg
Product Description
Land surveying instrument M68K gps gnss rtk GPS Glonass Beidou Galileo
M68K is a high-performance GNSS receiver that provides an easy-to-use solution for users. You can forget the bubble when you use Toknav M68K, which support the original tilt compensating GNSS solution. Multi constellation and frequency tracking always gives a Fixed solution for your job. The durable IP68 design makes it possible to work in extreme environments.
Linux intelligent system
Qualcomm MDM9607Cortex-A7+Linux, the intelligent system platform, brings efficient computing and unlimited expansion of product functions to users.
Multi constellation
With its1408 channels, M68K provides an excellent on board real time navigation solution with high accuracy. All GNSS signals (GPS, GLONASS, BDS, GALILEO, QZSS) are included
Characteristic
With its1408 channels, M68K provides an excellent on board real time navigation solution with high accuracy. All GNSS signals (GPS, GLONASS, BDS, GALILEO, QZSS) are included
Characteristic
QualcommMDM9607Cortex-A7 + Linux intelligent system
BDS, GPS, GLONASS, Galileo, QZSS
Centimeter level positioning
Support tilt measurement and meet the positioning accuracy of less than 2cm within the tilt range of 60°
Support 4G,Radio, Bluetooth and WiFi Built in high-capacity lithium battery, ultra long life
Industrial design, solid magnesium alloy shell, in line with IP68 design requirements, safe and reliable
| Item | Specification | |
| Hardware system | Qualcomm MDM9607Cortex-A7 | |
| GNSS Engine | OS | Linux |
| Channel | 1408 | |
| Satellites | GPS: L1 C/A, L1C*,L2P(Y), L2C, L5 | |
| GLONASS: L1, L2 | ||
| BeiDou: B1I, B2I, B3I, B1C, B2a, B2b* | ||
| Galileo:E1, E5a, E5b | ||
| QZSS: L1,L2,L5 | ||
| Data format: NMEA-0183 | ||
| Correction I / O Protocol: RTCM 2.X,RTCM3.X | ||
| Data update frequency: 5Hz | ||
| Recapture Time: <1s | ||
| POSITIONING ACCURACY | Single(RMS) | Horizontal:1.5m vertical: 2.5m |
| DGPS(RMS) | Horizontal:0.4m vertical:0.8m | |
| RTK(RMS) | Horizontal: ±(8mm+1ppm) Vertical: ±(15mm+1ppm) | |
| Time Accuracy(RMS) | 20ns | |
| Static Accuracy(RMS) | Horizontal : ±(2.5mm+0.5ppm) Vertical:±(5mm+0.5ppm) | |
| Speed Accuracy(RMS) | 0.03m/s | |
| Tilt compensation Accuracy(within 60°) | <2cm | |
| SYSTEM | Bluetooth | V2.1+EDR / V4.0dual mode |
| WIFI | 802.11 b/g/n | |
| Network | LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 LTE TDD: B38/39/40/41 WCDMA: B1/2/4/5/6/8/19 GSM: B2/3/5/8 | |
| Data Radio | Frequency:410~470MHz Protocol :TRIMTALK,TRIMMK3,SOUTH,TRANSE OT RF transmit power: 1W/5W Air baud rate :9600 / 19200bps | |
| Storage | 32GB,User Storage Space 24GB | |
| INDICATOR | Power Indicator | Show power status |
| Bluetooth Indicator | Show Bluetooth status | |
| Satellite Indicator | Show position status | |
| Data Link Indicator | Show differential signal status | |
| Network Indicator | Show network status | |
| Battery | Battery | 7.4V, 6500mAh |
| Work time | More than 20 hours (typical, Rovermode, Build-in network chain) | |
| Charge | USB PD 12V/2A 5V/3A | |
| Environmental | Work temperature | -20ºC to +60ºC |
| Storage temperature | -40ºC to +85ºC | |
| Protection | IP68 | |
| Shock | Withstand 1.5M pole drop | |
| PHYSICAL | Material | Magnesium alloy main body, ABS/PC top cover |
| Dimension | 143.5mm*90.7mm | |
| Weight | ≤0.75kg | |

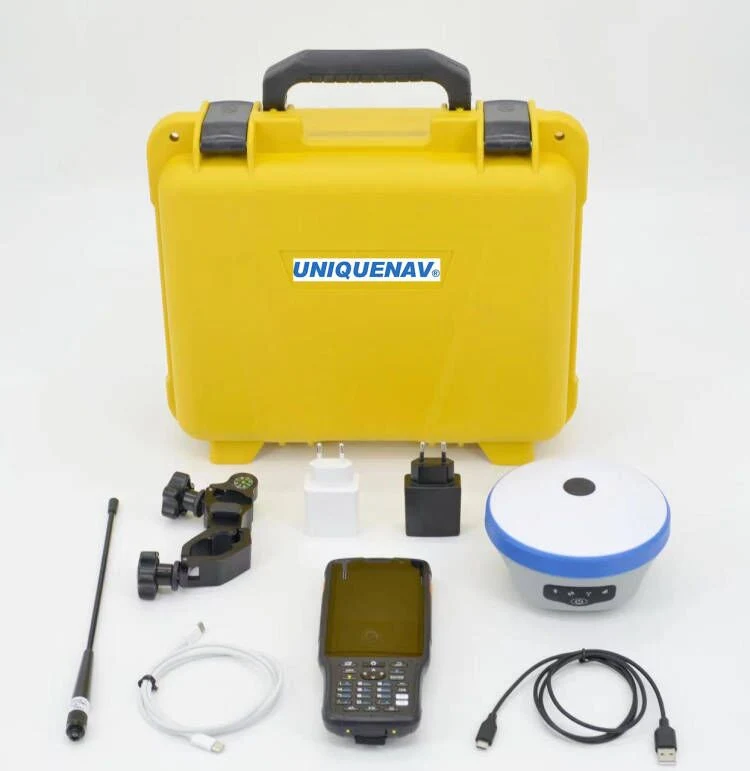

| A Full Set | M68K Device | 1 SET |
| | Power adapter | 1PCS |
| | USB A To Type-C | 1PCS |
| | Radio Antenna | 1PCS |
The warranty period is 12 months.
Within the 12 months, if there is any fault caused by non-artificial reason, which can be repaired by the customer themselves, we
can offer the spare parts to the customer free of charge. If there is any problem which cannot be repaired by the customer
themselves, the customer can resent the products to our factory for repairing free of charge, and the freight charge would be
shared by the customer and our company two sides.Under the circumstances out of the warranty period, if there is any problem, we
can repair free of charge for the customers, we just charge for the spare parts at the cost itself, and the freight charge would
be bear by the customers.
If there is any problem caused by human reason within the first year, the service would be the same as the service out of the
warranty period.
can offer the spare parts to the customer free of charge. If there is any problem which cannot be repaired by the customer
themselves, the customer can resent the products to our factory for repairing free of charge, and the freight charge would be
shared by the customer and our company two sides.Under the circumstances out of the warranty period, if there is any problem, we
can repair free of charge for the customers, we just charge for the spare parts at the cost itself, and the freight charge would
be bear by the customers.
If there is any problem caused by human reason within the first year, the service would be the same as the service out of the
warranty period.
Tianjin Unique Technology Co., Ltd. is a high-tech enterprise that specializes in researching and manufacturing high accuracy GNSS
products and surveying equiupments. Our products refer to many fields including GIS (geographic information system), Land Survey,
Machine Control, SI (system integration), Agriculture, etc. Our aim is to provide the high-quality products and offer the best
solutions and services for our customers worldwide.
products and surveying equiupments. Our products refer to many fields including GIS (geographic information system), Land Survey,
Machine Control, SI (system integration), Agriculture, etc. Our aim is to provide the high-quality products and offer the best
solutions and services for our customers worldwide.
Our Services & Strength
1.Any inquiries will be replied within 12 hours.
2.All our products have one year warranty, And we sure the products will be free from maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.
2.All our products have one year warranty, And we sure the products will be free from maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.
