Basic Info.
Model NO.
GL-DY057
Material
ABS
Directionality
Rhcp+Linear
VSWR
1.5~2
Nature of Operation
Receiving Antenna
Sturcture Form
Wire Antenna
Dimensionality
One-Dimensional Antenna
PCS/CTN
100
Weight/CTN
13.5
Connector
SMA or Fakra or MCX
Transport Package
48*30*28cm
Specification
59.2*52.5*15mm
Trademark
LEHENG
Origin
China
HS Code
8517707090
Production Capacity
3000PCS/Day
Packaging & Delivery
Package Size
53.00cm * 26.00cm * 29.00cm
Package Gross Weight
18.000kg
Product Description
| Item | Specifications | ||
| GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±1MHz |
| Band Width | CF±5MHz | ||
| Polarization | RHCP | ||
| Gain | 2dBic(Zenith) | ||
| V.S.W.R | <1.5 | ||
| Impendance | 50Ω | ||
| Axial Ratio | 3dB(max) | ||
| LNA | Gain | 28±2dB | |
| Noise Figure | <2dB | ||
| V.S.W.R | <2.0 | ||
| Supply Voltage | 2.2~5V DC | ||
| Current Consumption | 5~15mA | ||
| GSM Antenna | Frequency Range | 824~960MHz/1710-1990MHz | |
| V.S.W.R(min) | <2.5 | ||
| Polarization | Linear | ||
| Gain | 2dBi | ||
| Impendance | 50Ω | ||
| Mechanical | Cable | RG174 | |
| Connector | SMA/MCX/FAKRA or others | ||
| Radome Material | ABS | ||
| Mounting Method | Magnet/Adhesive | ||
| Environmental | Operating Temperature | -40ºC~+85ºC | |
| Relative Humidity | Up to 95% | ||
| Ingress Protection | IP65~IP66 | ||
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
| Environmentally Friendly | ROHS Compliant | ||
FAQ
Q: Can I receive a sample?
A: Certainly! We are pleased to offer you a sample of our product.
Q: Do you have GNSS Antenna fully assembled and in stock?
A: No, all GNSS antennas are assembled upon receiving your order, including samples.
Q: What is the estimated delivery time?
A: For samples, the delivery time is approximately 3-5 working days. For quantities below 5K, it takes around 10-15 working days.
Q: Can I use my own logo or design on the goods?
A: Absolutely! We provide customization options for logos and designs on mass production.
Q: What are the available payment terms?
A: We accept payment through T/T, Paypal, Western Union, and more.
Q: Am I allowed to visit your company?
A: Of course! You are welcome to visit our company at any time.
Q: How long is the warranty period?
A: Our antennas come with a one-year warranty, while assembly cables and connectors have a warranty period of half a year.
Product Description:
Q: Can I receive a sample?
A: Certainly! We are pleased to offer you a sample of our product.
Q: Do you have GNSS Antenna fully assembled and in stock?
A: No, all GNSS antennas are assembled upon receiving your order, including samples.
Q: What is the estimated delivery time?
A: For samples, the delivery time is approximately 3-5 working days. For quantities below 5K, it takes around 10-15 working days.
Q: Can I use my own logo or design on the goods?
A: Absolutely! We provide customization options for logos and designs on mass production.
Q: What are the available payment terms?
A: We accept payment through T/T, Paypal, Western Union, and more.
Q: Am I allowed to visit your company?
A: Of course! You are welcome to visit our company at any time.
Q: How long is the warranty period?
A: Our antennas come with a one-year warranty, while assembly cables and connectors have a warranty period of half a year.
Product Description:

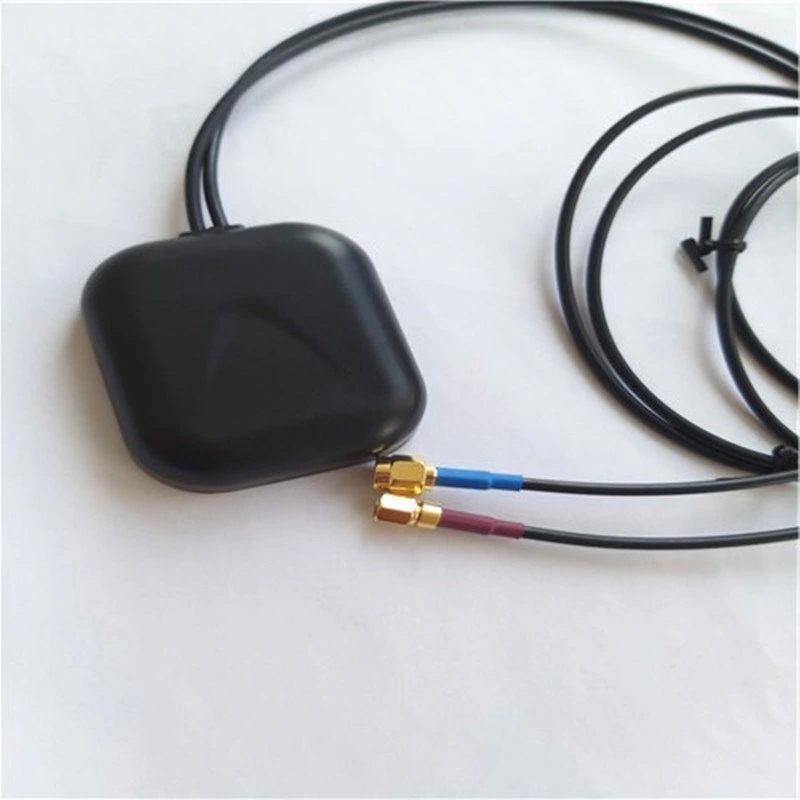

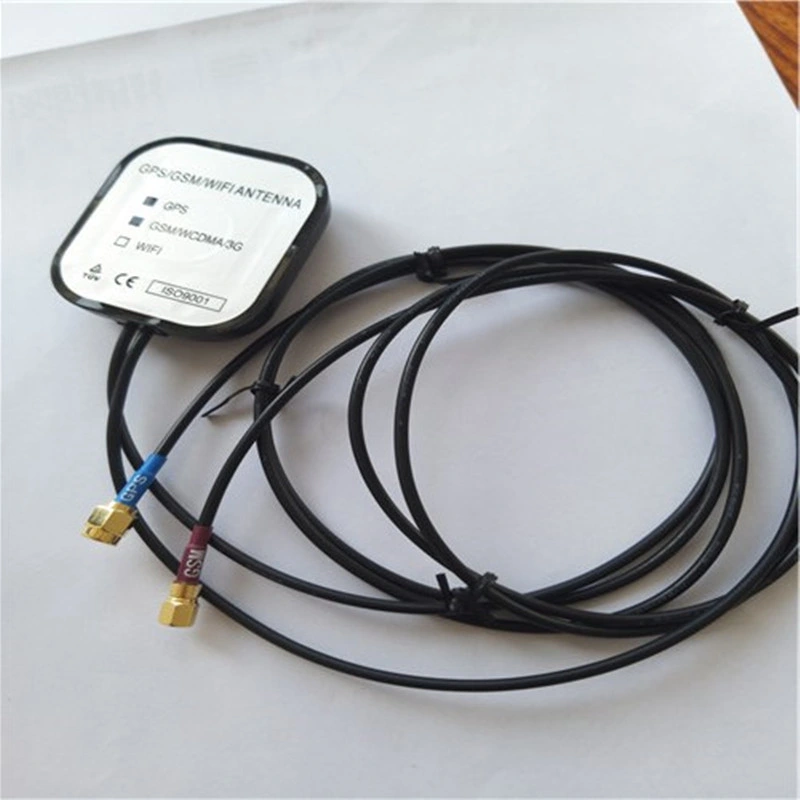

SMA Male Connector GPS+GSM Combo Magnet Antenna
Introducing our SMA Male Connector GPS+GSM Combo Magnet Antenna, designed and manufactured by ZHENGZHOU LEHENG ELECTRONIC TECHNOLOGY CO., LIMITED. This antenna is perfect for communication purposes, offering exceptional performance and reliability.
- Combo Antenna/Combined Antenna/GPS+GSM Antenna
- SMA Connector/Antenna/TV Antenna/Waterproof Antenna/Dual 4G Antenna/Magnet Antenna/3G Antenna
- Customizable Logo and Cable
With its microwave wavelength, this antenna ensures seamless communication in various scenarios. Its compact and durable design makes it suitable for a wide range of applications.
Experience the convenience and efficiency of our SMA Male Connector GPS+GSM Combo Magnet Antenna. Order now and enjoy reliable communication wherever you go!
